Biwire or Biamplify Connections
p. 6

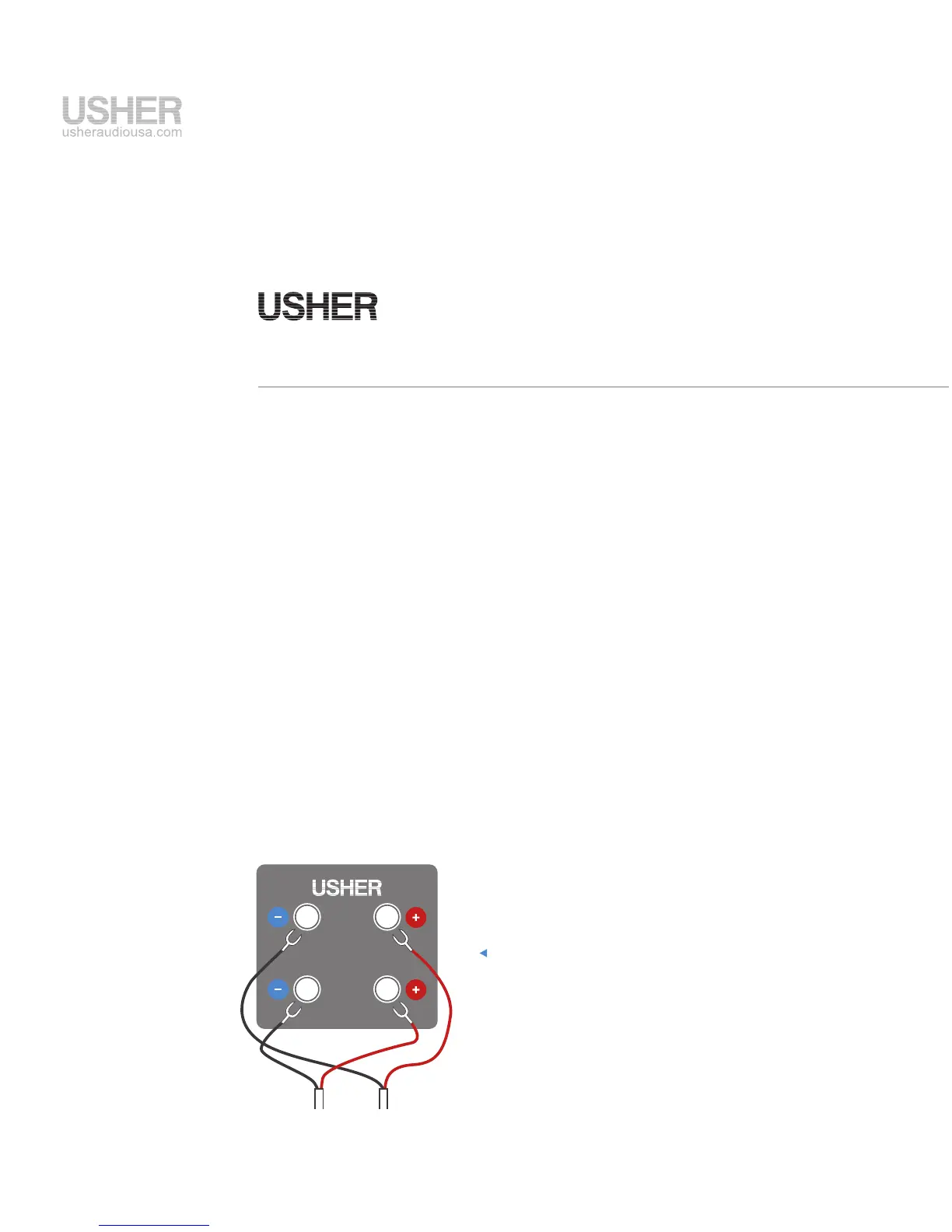

Please follow these hookup instructions carefully. When biwiring or biamplifying:
1. Biwire: After removing the crossover jumpers, install two pairs of speaker cables
connected to a single amplifier output terminal. Connect the +/red and -/ black
connectors of one pair of cables to the HIGH FREQUENCY INPUT terminals (top pair)
and the + and – connectors of the other pair of cables to the LOW FREQUENCY INPUT
terminals (lower pair). Take care to connect both +/red cables to the +/red amplifier
terminals and both -/black wires to the -/black amplifier terminals.
2. Biamplifying: Remove crossover jumpers and use separate amplifier channels to drive
each set of high- and low-frequency drivers.
NOTE: When biwiring or biamplifying, you must remove the terminal jumpers on the
crossover panel on the rear of each speaker. Jumpers are not required when using two
pairs of speaker cables for biwiring or biamplifying.
CAUTION! Failure to remove the terminal jumpers when biwiring or biamping may
damage some amplifiers.
