USM Haller E
Operating Instructions
Date
02.19/us
4 5
Output: 24V 2.5A Max. (60W)
For indoor use only. Read & understand
operating instructions before use.
Only use with USM Modular Furniture Haller
USM U. Schaerer Sons K .K.
1 Product Description
1.3 e-Inserts
The following e-Inserts are available:
— the e-Light in two different color
temperatures
— the e-Light with the “light at compart-
ment opening” function in two color
temperatures
— the e-USB charger
— the e-Dummy
e-Light cold white
(5700 K)
Service life: 45.000 hours
e-Light warm white,
light at compartment opening
(2700 K)
Service life: 45.000 hours
Please read the operating instructions carefully
before using the USM Haller E for the first time.
They contain important information for the safety,
use and maintenance of the USM Haller E.
This protects you and prevents damage to the
USM Haller E.
Store the operating instructions in the furniture and
pass it on to any subsequent owners. The identifica-
tion plates must not be damaged or removed, as
they are important for customer service purposes.

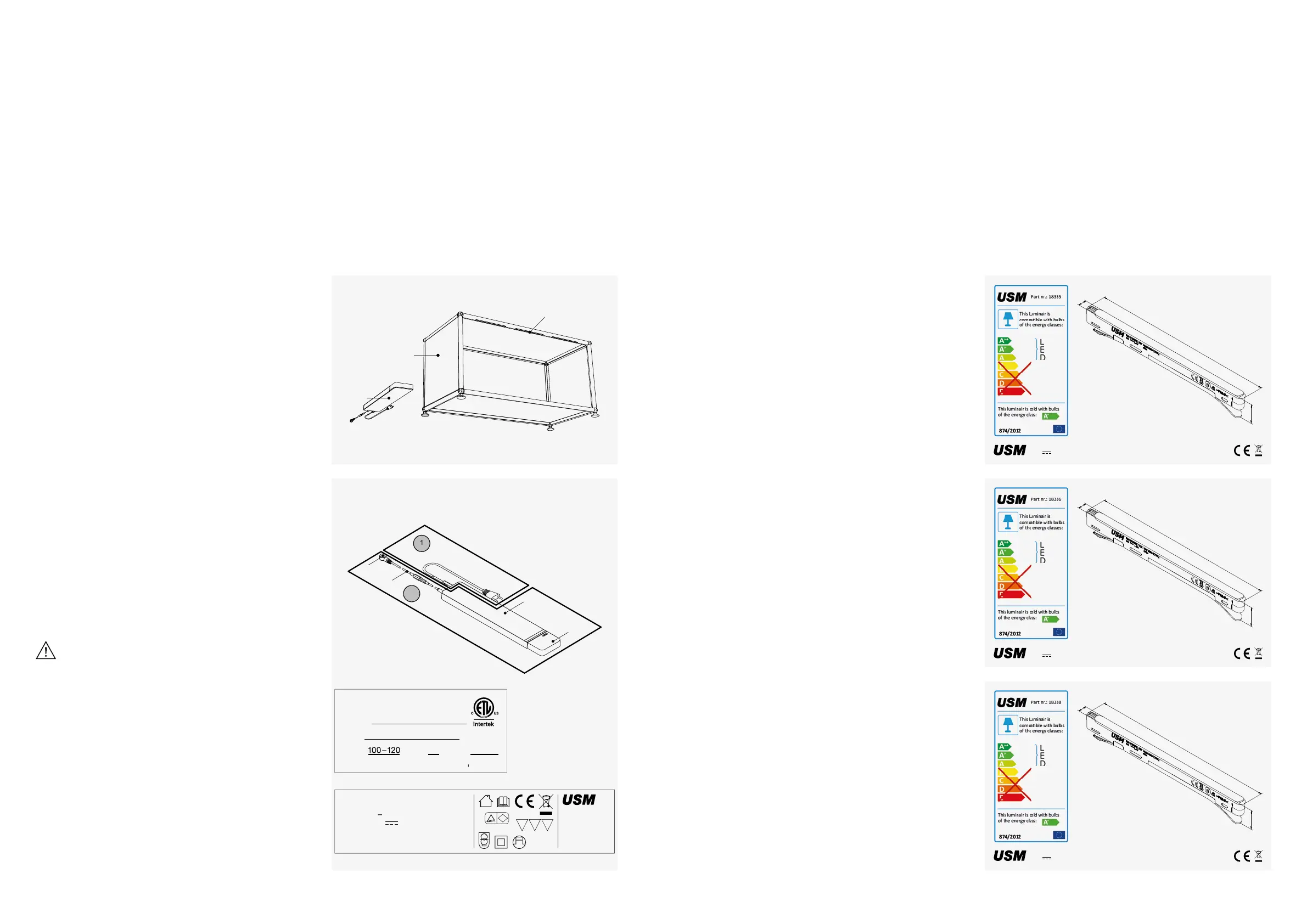

1.1 USM Haller E
1 USM Haller E
2 e-Power supply including e-Power cable
3 e-Inserts
3
1
2
1.2 e-Power supply
including e-Power cable
Dimensions, Cable Lengths, Tc Point, Identification Plate
1 e-Power cable approx. 1.8 m
2 e-Power supply (input current 0.4 A)
2.1 Power Adapter
2.1.1 Foot Switch (On / Off / Dimming)
2.2 Power Supply Cable approx. 1.5 m
2.3 Power Supply Screw
The e-Power supply has coils connected
to the power supply voltage.
e-Light warm white
(2700 K)
Service life: 45.000 hours
24V 1.5W
60lm
23
174
24V
1.5W
64lm
23
174
24V 1.5W
60lm
23
174
Worldwide Tc: 80 °C Ta: 45 °C
CONFORMS TO UL STD 962 CERTIFIED
TO CSA STD C22.2 NO.: #250.4
USM Modular Furniture Münsingen, Switzerland
USM Modular Furniture Münsingen, Switzerland
VOLTS AMPS
100 – 120
VOLTS AMPS
