6 7
1.4 Number of possible power
circuits and e-Inserts
A maximum of 3 power circuits are permitted
per furniture item. The maximum amount of
e-Inserts per circuit is determined by the power
of the e-Power supply.
The sum of the wattage of the e-Inserts
may not exceed 60 W.
— Capacity of the e-Power supply 60 W
Power consumption of the e-Inserts:
— e-Light 1.5 W
— e-Light, light at compartment opening 1.5 W
— e-USB charger 6.5 W
This creates the following example maximum combinations:
— 40 e-Lights (each 1.5 W)
40 × 1.5 W = 60 W ≤ 60 W
— 9 e-USB chargers (each 6.5 W)
9 × 6.5 W = 58.5 W ≤ 60 W
— 1 e-USB charger (each 6.5 W)
and up to 35 e-Lights (each 1.5 W)
1 × 6.5 W + 35 × 1.5 W = 59 W ≤ 60 W
— 2 e-USB chargers (each 6.5 W)
and up to 31 e-Lights (each 1.5 W)
2 × 6.5 W + 31 x 1.5 W = 59.5 W ≤ 60 W
1.5 Intended Use
USM Haller is intended for use only in offices
and at home (room temperature). No other uses
are approved.
USM Haller E is not intended for use outdoors or in wet
areas. Using the USM Haller E in rooms subject to explosion
hazards is prohibited.
USM shall not be liable for damage caused by unauthorized
use or misuse.
e-USB charger
The e-USB charger has a Type A USB socket and
provides 5 volts with 1 amp.
It only functions when not dimmed. A white illuminating
diode (1) shows that the e-USB charger is not dimmed and
that the connected device is being supplied with power.
e-Light cold white,
light at compartment opening
(5700 K)
Service life: 45.000 hours
e-Dummy
The e-Dummy is used to cover the open slots in the
e-Tubes power outlet.

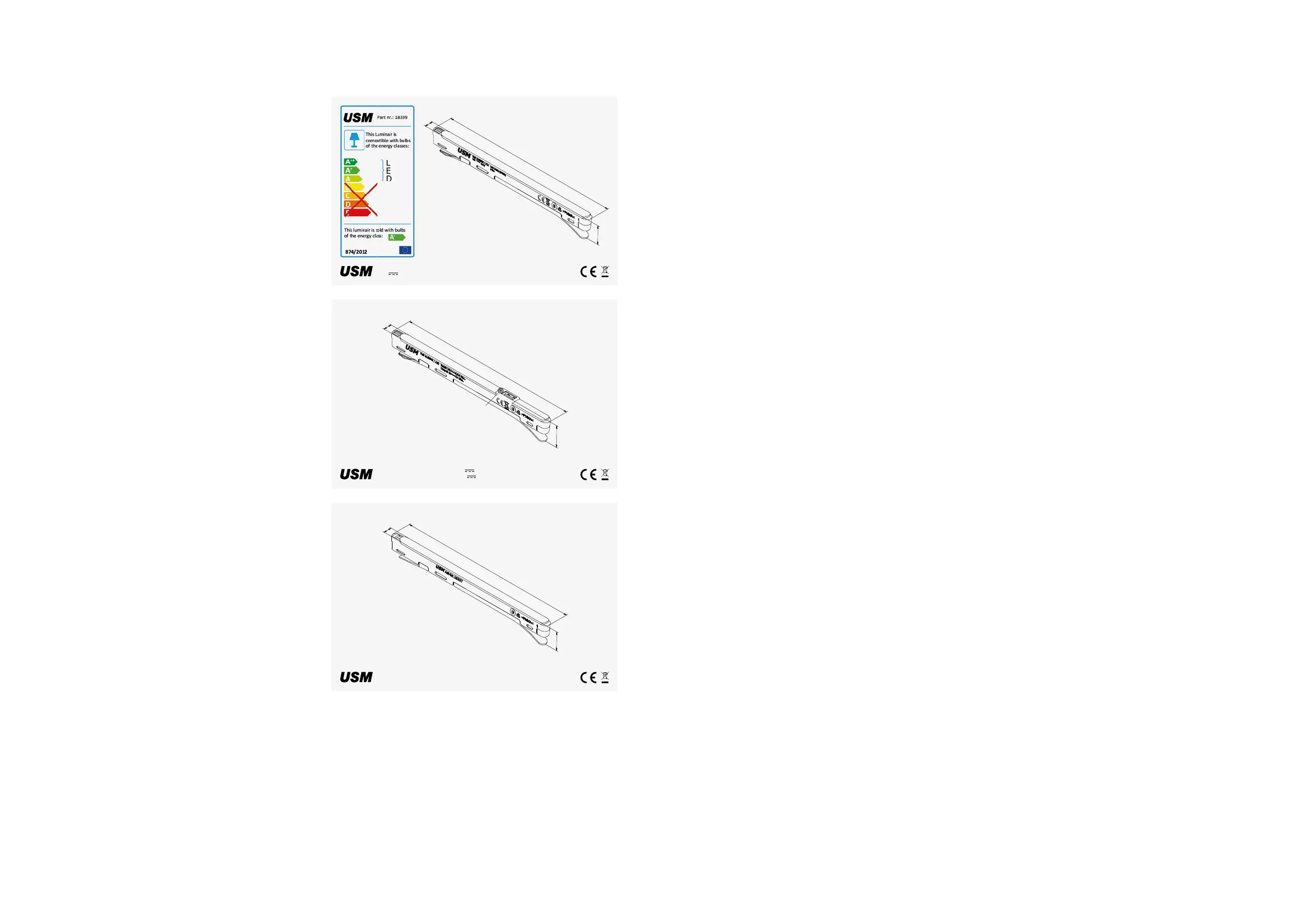

Part nr. 18340 Input: 24V 6.5W Max.
Output: 5V 1A Max.
Part nr. 18337
24
8
174
1
8
23
174
Part nr. 18339
24V
1.5W
cold white (5700K)
64lm
8
23
174
