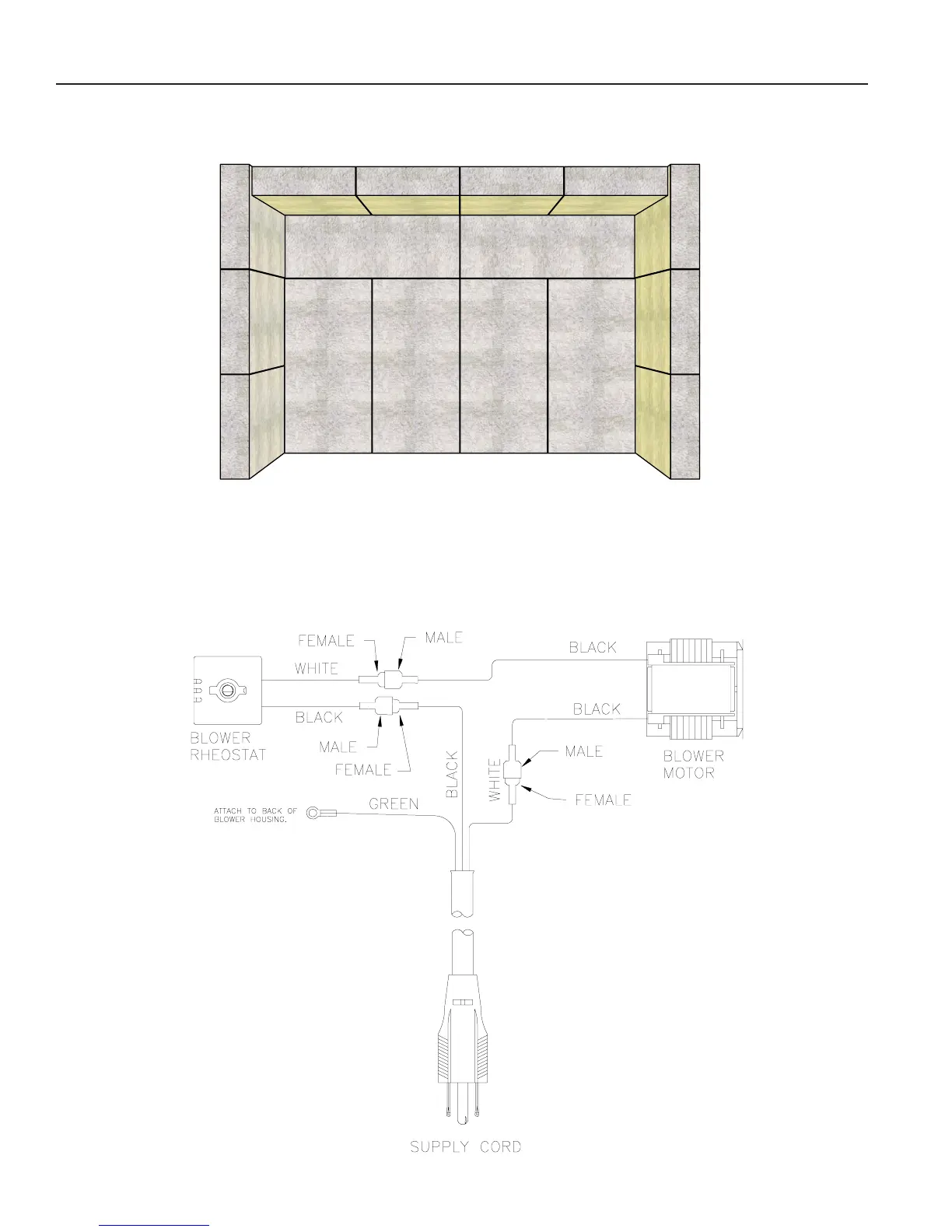

WIRING DIAGRAM FOR BLOWER ASSEMBLY
WARNING!
DO NOT ROUTE THE
SUPPLY CORD
NEAR OR ACROSS
HOT SURFACES!
CAUTION!
THE BLOWER ASSEMBLY
MUST BE DISCON-
NECTED FROM THE
SOURCE OF ELECTRICAL
SUPPLY BEFORE AT-
TEMPTING ANY MAINTE-
NANCE.
BRICK PLACEMENT - (TOP INSIDE VIEW OF FIREBOX)
