11
1. Crimped end of the pipe must be installed toward the heater. The pipe
should slide inside the ue collar. The pipe should be rmly attached to
the ue collar with 3 screws and sealed with furnace cement.
2. Slope any horizontal pipe upward toward the chimney at least 1/4 " inch
for each foot of horizontal run.
3. You must have at least 18" inches clearance between any horizontal pip-
ing and the ceiling.
4. The pipe cannot extend into the chimney ue.(Fig. 8)
5. Seal each connector pipe joint with furnace cement. Also seal the pipe at
the chimney.
6. Use 3 sheet metal screws at each joint to make the piping rigid.
7. It is recommended that no more than two (2) 90 degree bends be used in
the stove pipe installation as more than two (2) may decrease the amount
of draw and possibly cause smoke spillage.
8. The chimney connector must not pass through an attic or roof space,
closet, or any concealed space, or oor, ceiling, wall or combustible con-
struction.

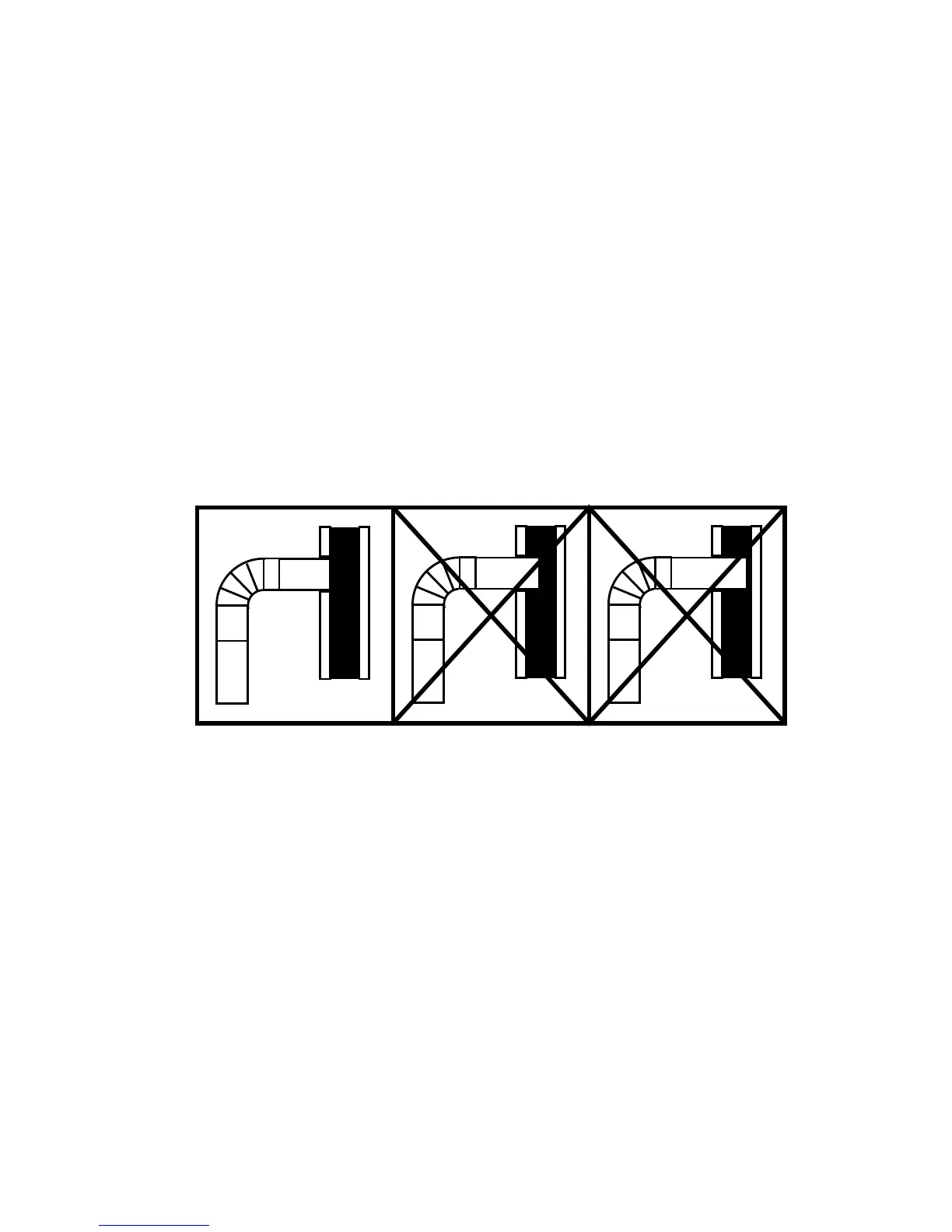

FIGURE 8
RIGHT WRONG WRONG
