UST GG4200 series User Manual

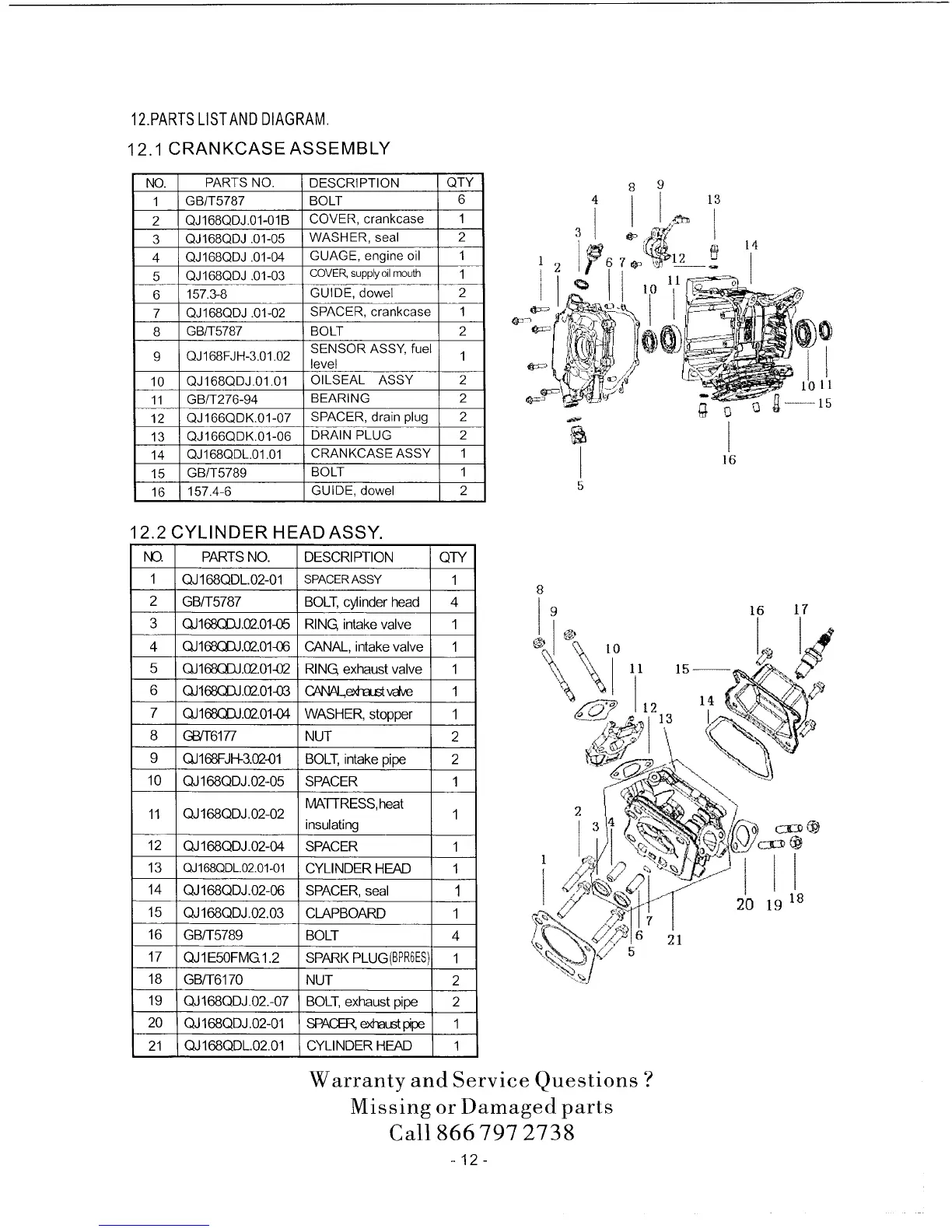

12.PARTSLISTAND DIAGRAM.
12.1 CRANKCASE ASSEMBLY
NO. PARTS NO. DESCRIPTION QTY
GB/T5787 BOLT 6
2 QJ168QDJ.01-01B COVER, crankcase 1
3 QJ168QDJ .01-05 WASHER, seal 2
4 QJ168QDJ .01-04 GUAGE, engine oil 1
5 QJ168QDJ .01-03 COVER,supplyoilmouth 1
6 157.3-8 GUIDE, dowel 2
7 QJ168QDJ .01-02 SPACER, crankcase 1
8 GB/T5787 BOLT 2
9 QJ168FJH-3.01.02 SENSOR ASSY, fuel 1
level
10 QJ168QDJ.01.01 OILSEAL ASSY 2
11 GB/T276-94 BEARING 2
12 QJ166QDK.01-07 SPACER, drain plug 2
13 QJ166QDK.01-06 DRAIN PLUG 2
14 QJ168QDL.01.01 CRANKCASE ASSY 1
15 GB/T5789 BOLT 1
16 157.4-6 GUIDE, dowel 2
12.2 CYLINDER HEAD ASSY.
NO. PARTS NO. DESCRI PTION QTY
1 QJ168QDL.02-01 SPACERASSY 1
2 GB/T5787 BOLT,cylinder head 4
3 QJ168QDJ.02.01-05 RING, intake valve 1
4 QJ168QDJ.02.01-06 CANAL, intake valve 1
5 QJ168(33J.02.01-02 RING, exhaust valve 1
6 QJ168QDJ.02.01-03 _e4"-a.st vake 1
7 OJ168QDJ.02.01-04 WASHER, stopper 1
8 GB/T6177 NUT 2
9 QJ168FJH-3.02-01 BOLT, intake pipe 2
10 QJ168QDJ.02-05 SPACER 1
MA-I-I-RESS,heat
11 QJ 168QDJ.02-02 1
insulating
12 QJ 168QDJ.02-04 SPACER 1
13 QJ168QDL.02.01-01 CYLINDER HEAD 1
14 QJ 168QDJ.02-06 SPACER, seal 1
15 QJ168QDJ.02.03 CLAPBOARD 1
16 GB/T5789 BOLT 4
17 QJ1E50FMG 1.2 SPARK PLUG(BPR6ES) 1
18 GB/T6170 NUT 2
19 QJ168QDJ.02.-07 BOLT,exhaust pipe 2
20 QJ168QDJ.02-01 SPACER,exhaLs-tpipe 1
21 QJ168QDL.02.01 CYLINDER HEAD 1
5
14
lO
11
12
Warranty and Service Questions ?
Missing or Damaged parts
Call 866 797 2738
-12-
16 17
20 19 18
21
