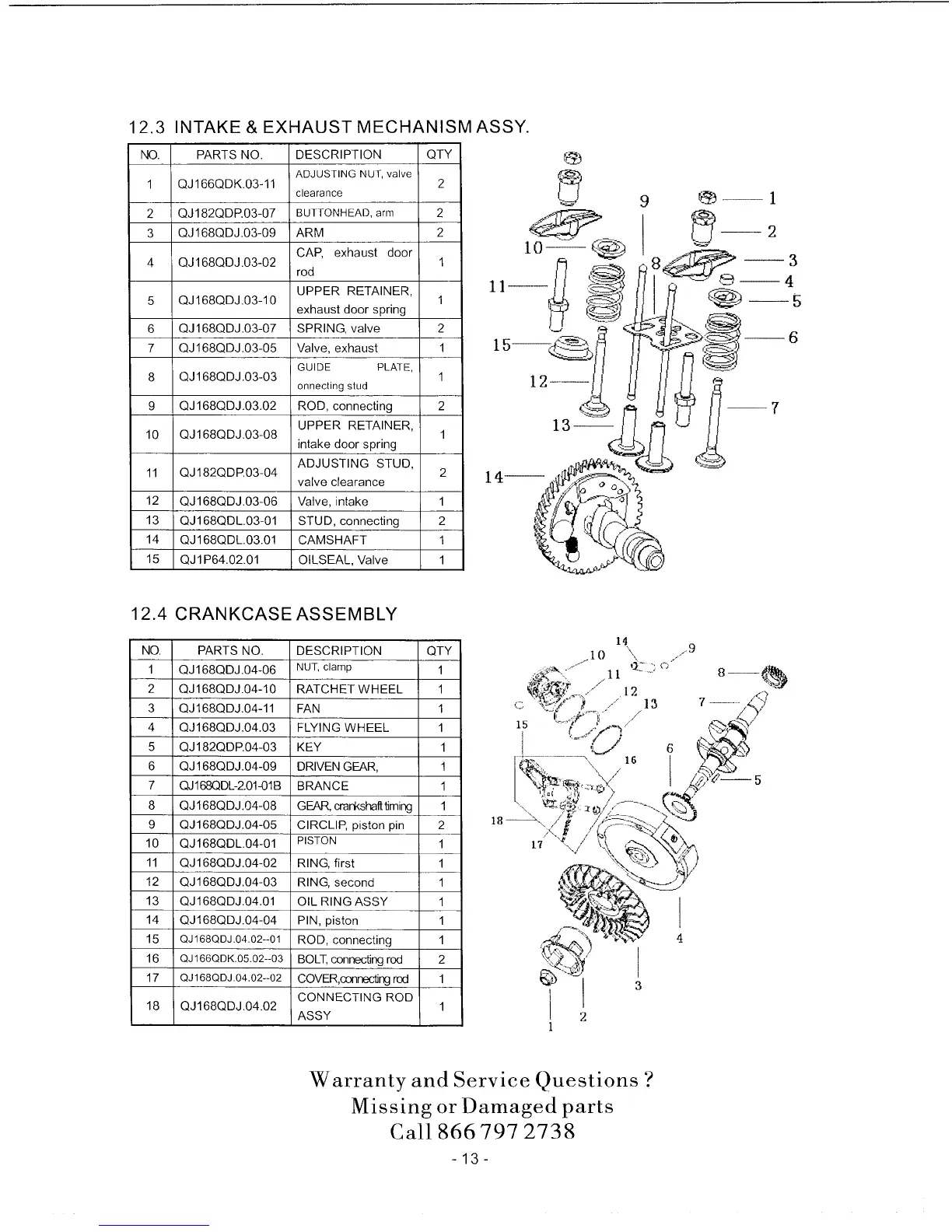

INTAKE & EXHAUST MECHANISM ASSY.
PARTS NO.
QJ166QDK.03-11
QJ182QDR03-07
QJ168QDJ.03-09
QJ168QDJ.03-02
QJ168QDJ.03-10
QJ 168QDJ.03-07
QJ168QDJ.03-05
QJ168QDJ.03-03
QJ168QDJ.03.02
QJ168QDJ.03-08
QJ182QDR03-04
QJ168QDJ.03-06
QJ168QDL.03-01
QJ168QDL.03.01
QJ1P64.02.01
DESCRIPTION
ADJUSTING NUT, valve
clearance
BUTTONHEAD,arm
ARM
CAP, exhaust door
rod
UPPER RETAINER,
exhaust door spring
SPRING, valve
Valve, exhaust
GUIDE PLATE,
onnecting stud
ROD, connecting
UPPER RETAINER,
intake door spring
ADJUSTING STUD,
valve clearance
Valve, intake
STUD, connecting
CAMSHAFT
OILSEAL, Valve
QTY
2
2
2
1
1
2
1
1
2
1
1
2
1
1
9
16
12.4 CRANKCASE ASSEMBLY
NO. PARTS NO.
1 QJ168QDJ.04-06
2 QJ168QDJ.04-10
3 QJ168QDJ.04-11
4 QJ168QDJ.04.03
5 QJ182QDR04-03
6 QJ168QDJ.04-09
7 QJ168QDL-2101-018
8 QJ168QDJ.04-08
9 QJ168QDJ.04-05
10 QJ168QDL.04-01
11 QJ168QDJ.O4-02
12 QJ168QDJ.04-03
13 QJ168QDJ.04.01
14 QJ168QDJ.04-04
15 QJ168QDJ.04.02--01
16 QJ166QDK.05.02--03
17 QJ168QDJ.04.02--02
18 QJ168QDJ.04.02
DESCRIPTION QTY
NUT,clamp 1
RATCHET WHEEL 1
FAN 1
FLYING WHEEL 1
KEY 1
DRIVEN GEAR, 1
BRANCE 1
GEAR, crar_shalt timing 1
CIRCLIP, piston pin 2
PISTON 1
RING, first 1
RING, second 1
OIL RING ASSY 1
PIN, piston 1
ROD, connecting 1
BOLT,connecting rod 2
COVER,connecling rod 1
CONNECTING ROD
1
ASSY
