UST GG4200 series User Manual

12.5
NO.
1
2
3
4
5
6
7
8
9
10
11

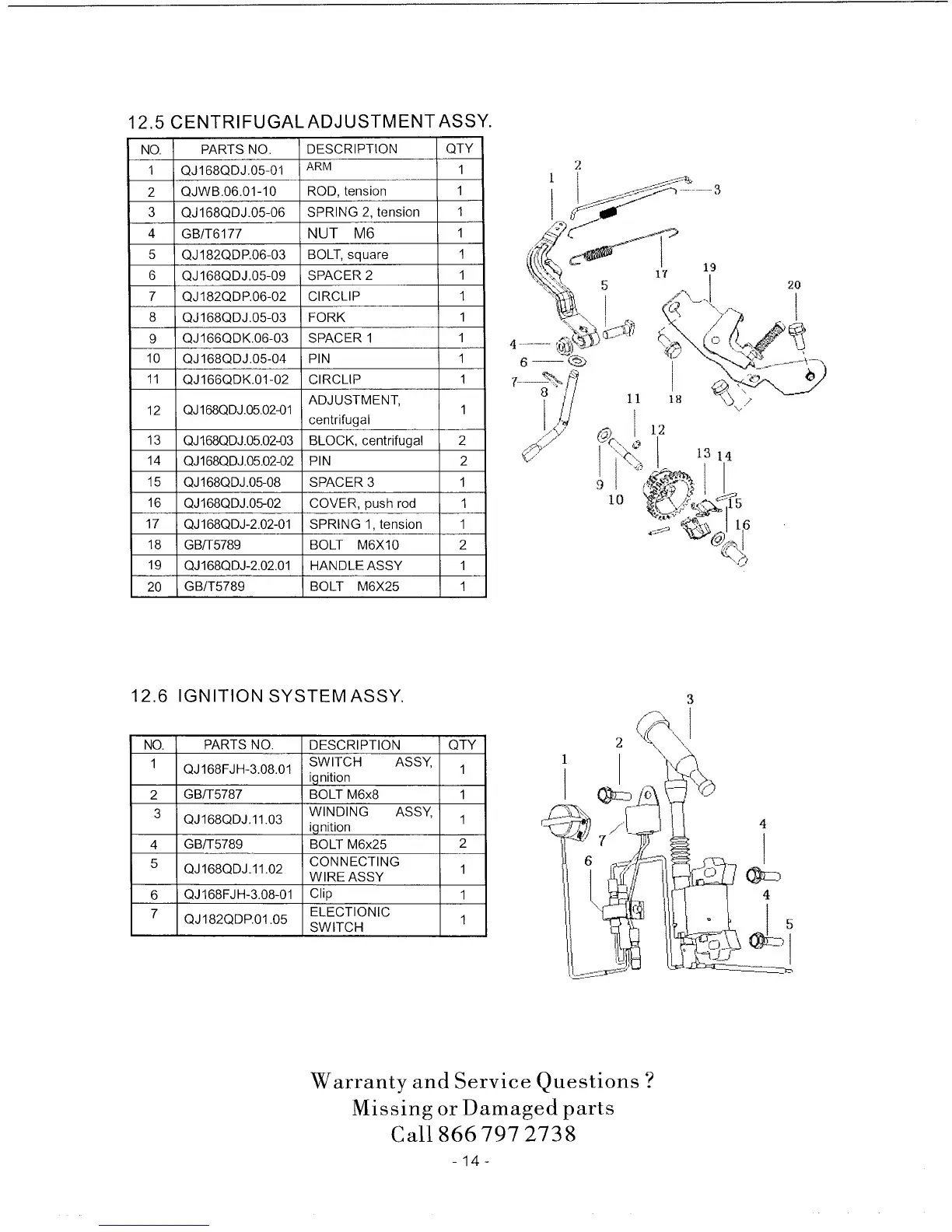

CENTRIFUGAL ADJUSTMENT ASSY.
PARTS NO. DESCRIPTION QTY
QJ168QDJ.05-01 ARM 1
QJWB.06.01-10 ROD, tension 1
QJ168QDJ.05-06 SPRING 2, tension 1
GB/T6177 NUT M6 1
QJ182QDR06-03 BOLT, square 1
QJ168QDJ.05-09 SPACER 2 1
QJ182QDP.06-02 ClRCLIP 1
QJ168QDJ.05-03 FORK 1
QJ166QDK.06-03 SPACER 1 1
QJ168QDJ.05-04 PIN 1
QJ166QDK.01-02 CIRCLIP 1
ADJUSTMENT,
12 QJ168QDJ.05.02431 1
centrifugal
13 QJ168QDJ.05.02-03 BLOCK, centrifugal 2
14 QJ168QDJ.05.02432 P IN 2
15 QJ168QDJ.05-08 SPACER 3 1
16 QJ168QDJ.05-02 COVER, push rod 1
17 QJ168QDJ-2.02-01 SPRING 1, tension 1
18 GB/T5789 BOLT M6Xl0 2
19 QJ168QDJ-2.02.01 HANDLE ASSY 1
20 GB/T5789 BOLT M6X25 1
12.6 IGNITION SYSTEM ASSY.
NO. PARTS NO.
1 QJ168FJH-3.08.01
2 GB/T5787
3 QJ168QDJ.11.03
4 GB/T5789
5 QJ168QDJ.11.02
6 QJ168FJH-3.08-01
7 QJ182QDR01.05
DESCRIPTION QTY
SWITCH ASSY, 1
ignition
BOLT M6x8 1
WINDING ASSY, 1
ignition
BOLT M6x25 2
CONNECTING
1
WIRE ASSY
Clip 1
ELECTIONIC
1
SWITCH
2
1
4
!
4
5
Warranty and Service Questions ?
Missing or Damaged parts
Call 866 797 2738
-14-
