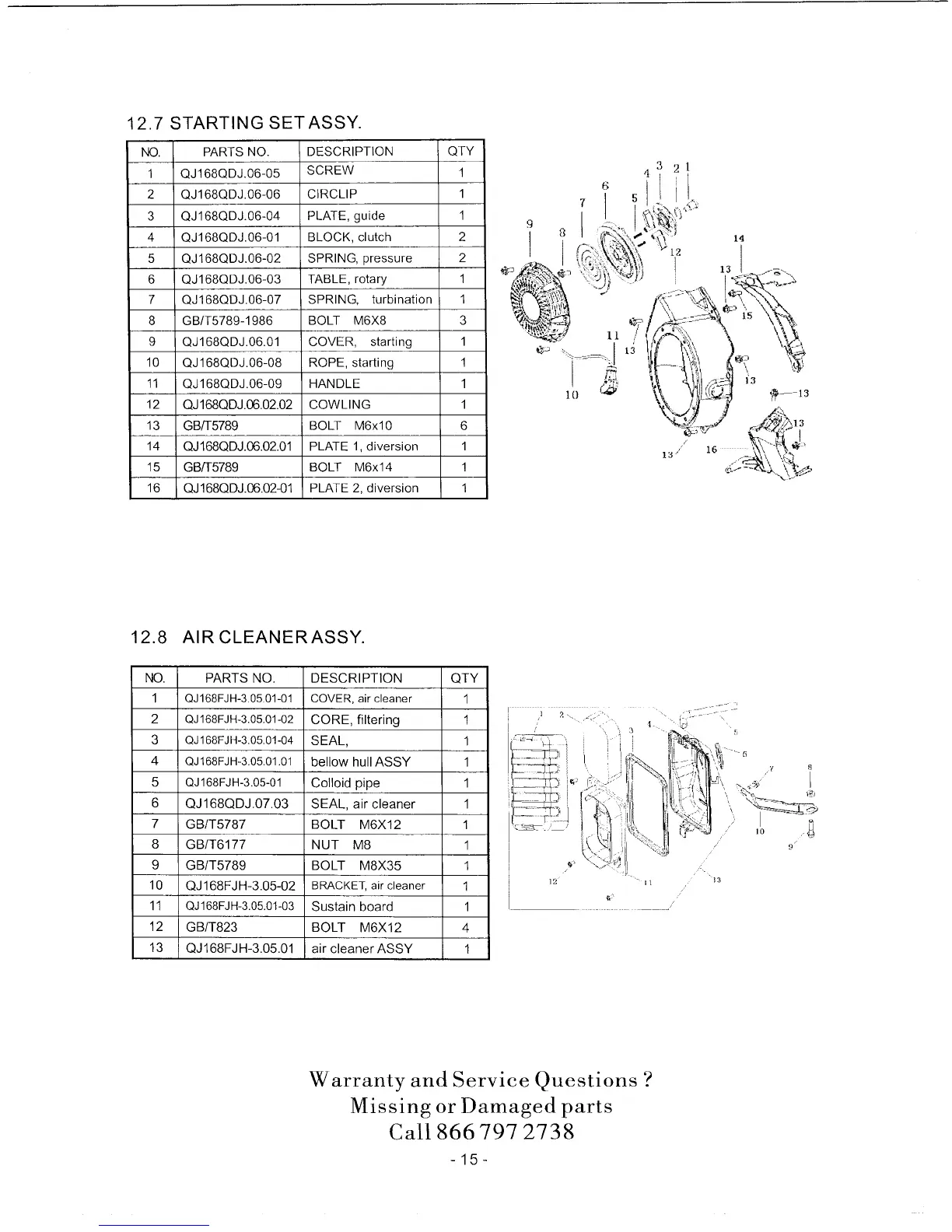

12.7 STARTING SETASSY.
NO. PARTS NO. DESCRIPTION QTY
1 QJ168QDJ.06-05 SCREW 1
2 QJ168QDJ.06-06 CIRCLIP 1
3 QJ168QDJ.06-04 PLATE, guide 1
4 QJ168QDJ.06-01 BLOCK, clutch 2
5 QJ168QDJ.06-02 SPRING, pressure 2
6 QJ168QDJ.06-03 TABLE, rotary 1
7 QJ168QDJ.06-07 SPRING, turbination 1
8 GB/T5789-1986 BOLT M6X8 3
9 QJ168QDJ.06.01 COVER, starting 1
10 QJ168QDJ.06-08 ROPE, starting 1
11 QJ168QDJ.06-09 HANDLE 1
12 QJ 168QDJ.06.02.02 COWLING 1
13 GB/T5789 BOLT M6xl0 6
14 QJ168QDJ.06.02.01 PLATE 1, diversion 1
15 GB/T5789 BOLT M6x14 1
16 QJ168QDJ.06.02431 PLATE 2, diversion 1
9 8
"2
10
321
12.8 AIR CLEANERASSY.
NO. PARTS NO. DESCRIPTION QTY
1 QJ168FJI-I-3.05.01-01 COVER, air cleaner 1
2 QJ168FJH-3.05.01-02 CORE, filtering 1
3 QJ168FJH-3.05.01-04 SEAL, 1
4 QJ168FJH-3.05.01.01 bellow hullASSY 1
5 QJ168FJH-3.05-01 Colloid pipe 1
6 QJ168QDJ.07.03 SEAL, air cleaner 1
7 GB/T5787 BOLT M6X12 1
8 GB/T6177 NUT M8 1
9 GB/T5789 BOLT M8X35 1
10 QJ168FJH-3.05-02 BRACKET, air cleaner 1
11 QJ168FJH-3.05.01-03 Sustain board 1
12 GB/T823 BOLT M6X12 4
13 QJ168FJH-3.05.01 air cleanerASSY 1
