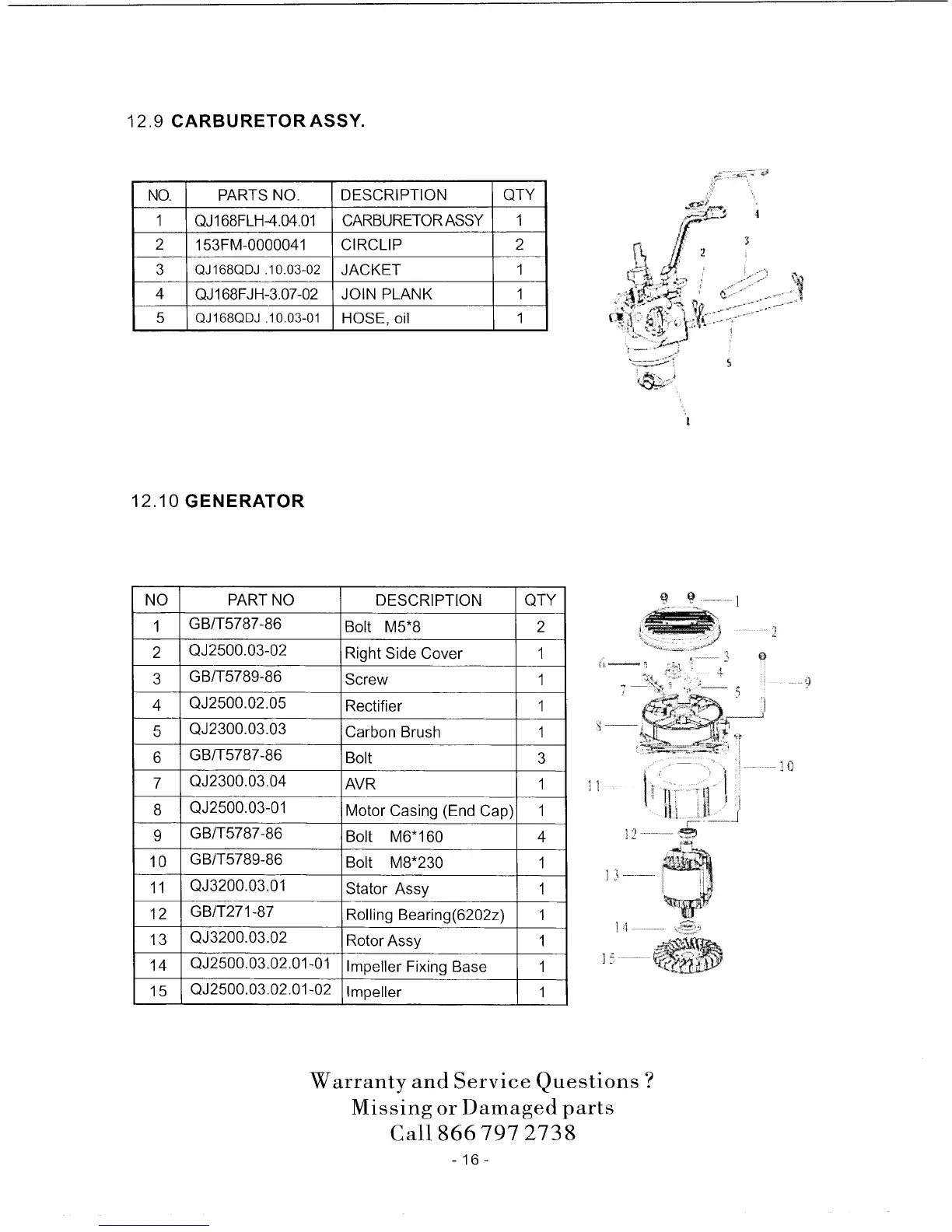

UST GG4200 series User Manual

12.9 CARBURETORASSY.
NO. PARTS NO. DESCRIPTION QTY
1 QJ168FLH-4.04.01 CARBURETORASSY !
2 153FM-0000041 CIRCLIP 2
3 QJ168QDJ.10.03-02 JACKET 1
4 QJ168FJH-3.07-02 JOIN PLANK 1
5 QJ168QDJ .10.03-01 HOSE, oil 1
5
|
12.10 GENERATOR
NO PART NO DESCRIPTION QTY
1 GB/T5787-86 Bolt M5"8 2
2 QJ2500.03-02 Right Side Cover 1
3 GB/T5789-86 Screw 1
4 QJ2500.02.05 Rectifier 1
5 QJ2300.03.03 Carbon Brush 1
6 GB/T5787-86 Bolt 3
7 QJ2300.03.04 AVR 1
8 QJ2500.03-01 Motor Casing (End Cap) 1
9 GB/T5787-86 Bolt M6"160 4
10 GB/T5789-86 Bolt M8"230 1
11 QJ3200.03.01 Stator Assy 1
12 GB/T271-87 Rolling Bearing(6202z) 1
13 QJ3200.03.02 Rotor Assy 1
14 QJ2500.03.02.01-01 Impeller Fixing Base 1
15 QJ2500.03.02.01-02 Impeller 1
,_ _._:
m
" i
_ '------_-_
0
I ] ....
[....
15-
J
Warranty and Service Questions ?
Missing or Damaged parts
Call 866 797 2738
-16-
