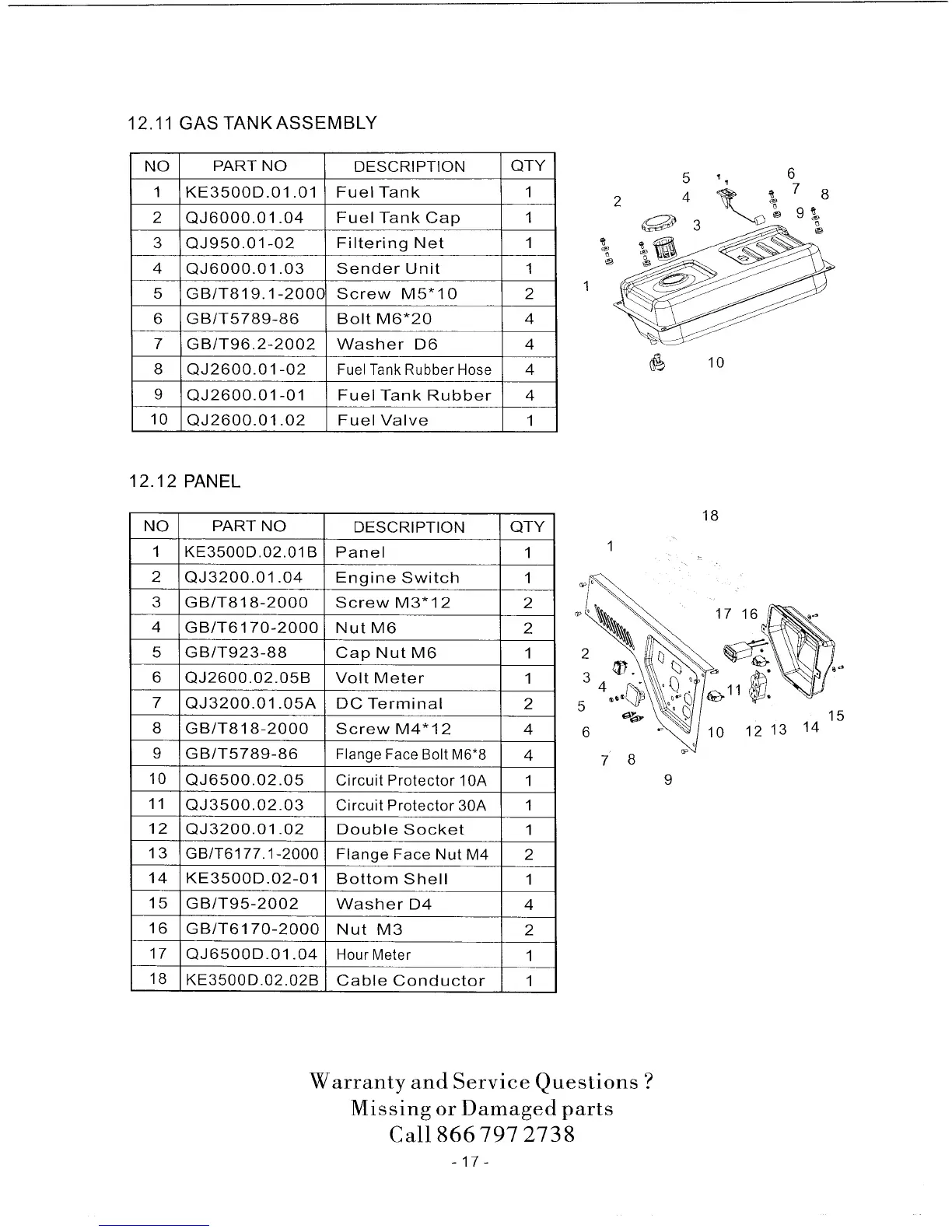

12.11 GAS TANKASSEMBLY
NO PART NO DESCRIPTION QTY
1 KE3500D.01.01 Fuel Tank 1
2 QJ6000.01.04 Fuel Tank Cap 1
3 QJ950.01-02 Filtering Net 1
4 QJ6000.01.03 Sender Unit 1
5 GB/T819.1-2000 Screw M5"10 2
6 GB/T5789-86 Bolt M6"20 4
7 GB/T96.2-2002 Washer D6 4
8 QJ2600.01-02 Fuel Tank Rubber H0se 4
9 QJ2600.01-01 Fuel Tank Rubber 4
10 QJ2600.01.02 Fuel Valve 1
12.12 PANEL
NO PART NO DESCRIPTION QTY
1 KE3500D.02.01B Panel 1
2 QJ3200.01.04 Engine Switch 1
3 GB/T818-2000 Screw M3"12 2
4 GB/T6170-2000 NutM6 2
5 GB/T923-88 Cap Nut M6 1
6 QJ2600.02.05B Volt Meter 1
7 QJ3200.01.05A DCTerminal 2
8 GB/T818-2000 Screw M4"12 4
9 GB/T5789-86 Flange Face Bolt M6"8 4
10 QJ6500.02.05 Circuit Protector 10A 1
11 QJ3500.02.03 Circuit Protector30A 1
12 QJ3200.01.02 Double Socket 1
13 GB/T6177.1-2000 Flange Face Nut M4 2
14 KE3500D.02-01 Bottom Shell 1
15 GB/T95-2002 Washer D4 4
16 GB/T6170-2000 Nut M3 2
17 QJ6500D.01.04 HourMeter 1
18 KE3500D.02.02B Cable Conductor 1
5 _ 6
2 4 _ 7 8
O3
2
3
4
5
6
18
17 16_
15
10 12 13 14
