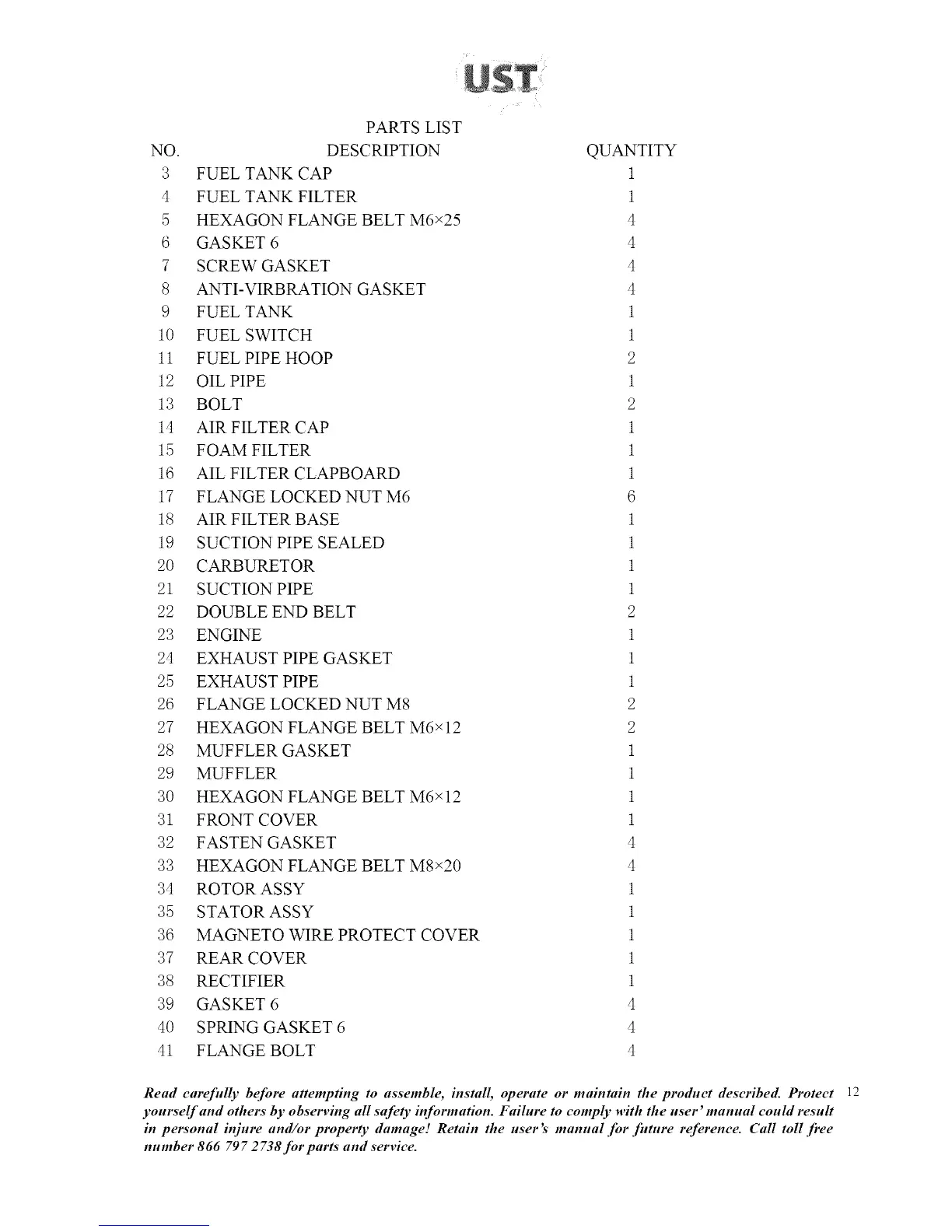

UST WDF1200C-EF50 - Page 13

PARTS LIST
NO. DESCRIPTION
3 FUEL TANK CAP
4 FUEL TANK FILTER
5 HEXAGON FLANGE BELT M6x25
6 GASKET 6
7 SCREW GASKET
8 ANTI-VIRBRATION GASKET
9 FUEL TANK
10 FUEL SWITCH
11 FUEL PIPE HOOP
12 OIL PIPE
13 BOLT
14 AIR FILTER CAP
15 FOAM FILTER
16 AIL FILTER CLAPBOARD
17 FLANGE LOCKED NUT M6
18 AIR FILTER BASE
19 SUCTION PIPE SEALED
20 CARBURETOR
21 SUCTION PIPE
22 DOUBLE END BELT
23 ENGINE
24 EXHAUST PIPE GASKET
25 EXHAUST PIPE
26 FLANGE LOCKED NUT M8
27 HEXAGON FLANGE BELT M6 x 12
28 MUFFLER GASKET
29 MUFFLER
30 HEXAGON FLANGE BELT M6x12
31 FRONT COVER
32 FASTEN GASKET
33 HEXAGON FLANGE BELT M8x20
34 ROTORASSY
35 STATOR ASSY
36 MAGNETO WIRE PROTECT COVER
37 REAR COVER
38 RECTIFIER
39 GASKET 6
40 SPRING GASKET 6
41 FLANGE BOLT
QUANTITY
1
1
4
4
4
4
1
1
2
1
2
1
1
1
6
1
1
1
1
2
1
1
1
2
2
1
1
1
1
4
4
1
1
1
1
1
4
4
4
