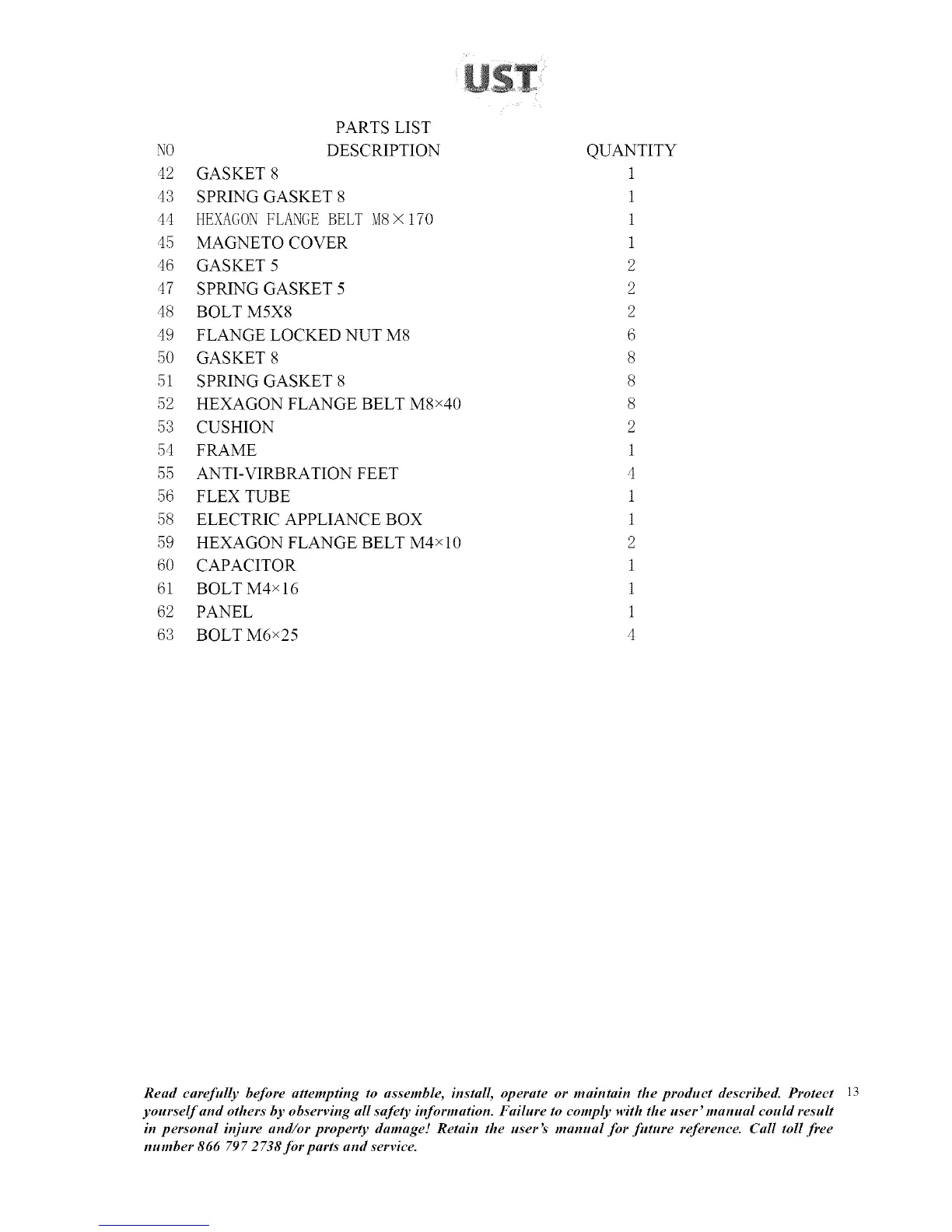

PARTS LIST
NO DESCRIPTION
42 GASKET 8
43 SPRING GASKET 8
44 HEXAGONFLANGEBELT M8× 170
45 MAGNETO COVER
46 GASKET 5
47 SPRING GASKET 5
48 BOLTMSX8
49 FLANGE LOCKED NUT M8
50 GASKET 8
51 SPRING GASKET 8
52 HEXAGON FLANGE BELT MSx40
53 CUSHION
54 FRAME
55 ANTI-VIRBRATION FEET
56 FLEX TUBE
58 ELECTRIC APPLIANCE BOX
59 HEXAGON FLANGE BELT M4xl0
60 CAPACITOR
61 BOLT M4x16
62 PANEL
63 BOLTM6x25
QUANTITY
1
1
1
1
2
2
2
6
8
8
8
2
1
4
1
1
2
1
1
1
4
Read carefully before attempting to assemble, install, operate or maintain the product described. Protect
yourself and others by observing all safety information. Failure to comply with the user' manual could result
in personal injure and/or property damage! Retain the user's" manual for fitture reference. Call toll free
number 866 797 2 738 for parts and service.
13
