10
EXISTING CONSTRUCTION INSTALLATION INSTRUCTIONS (Continued)

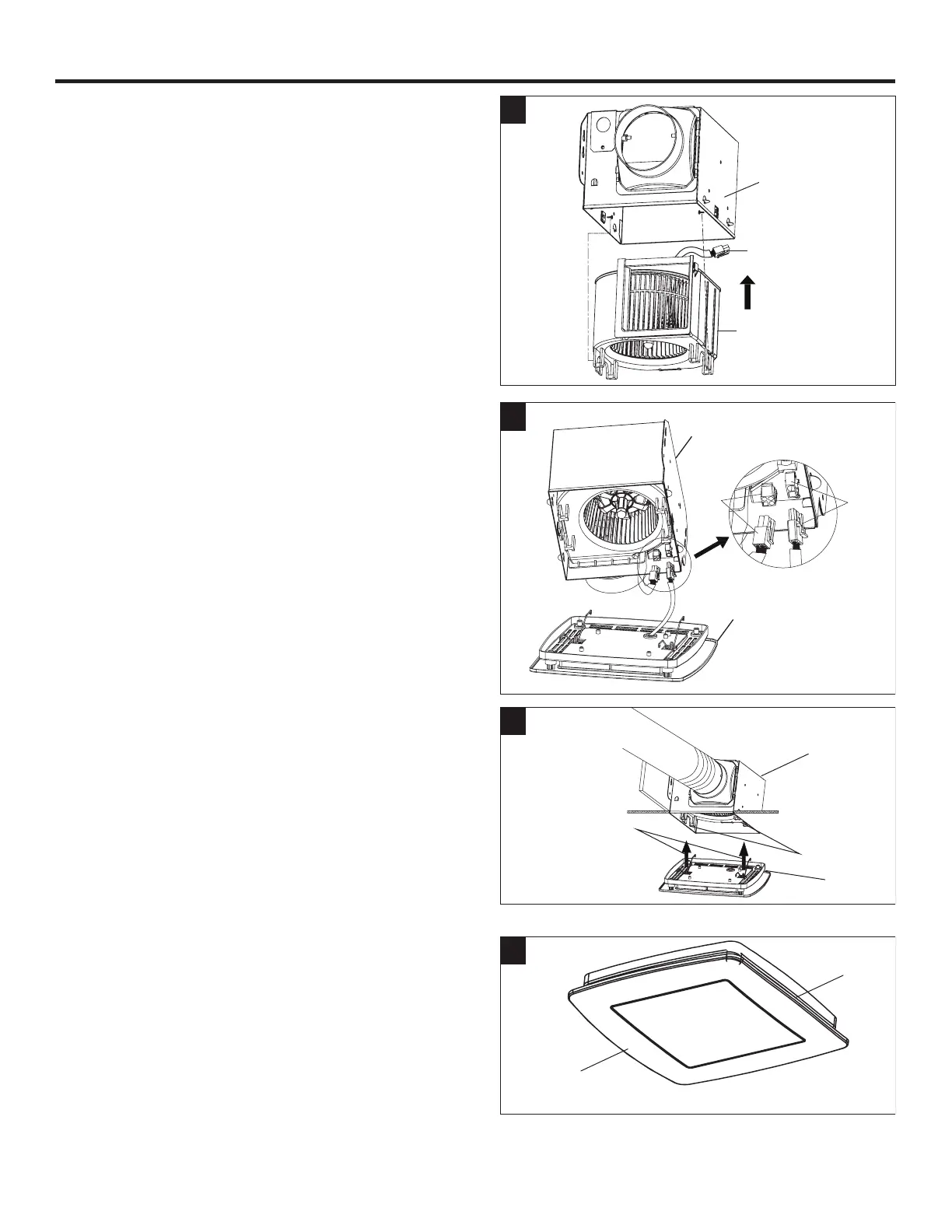

11. Plug the fan motor plug into the fan housing (A). Place the fan
motor back into the fan housing (A), aligning the duct with the
duct opening in the fan housing (A), and attach the fan motor
to the housing using the three screws removed in step 5.
11
12. Join the connectors for the LED light from the fan housing (A)
to the grille (B). The grille (B) must be connected before
turning on power to the fan.
2 hole
4 hole
A
B
12
13. Attach the grille (B) by pinching the mounting springs and
inserting them into the narrow rectangular slots in the
fan housing (A).
Turn on power source. Test the unit.
13
Housing
slots
Mounting
springs
A
B
14. If desired, the trim nish can be changed. To change the trim,
pull down gently from each side to release the magnetic
attachment. Place an alternate grille trim piece (D) around the
grille with LED light (B) until the magnetic attachment is
secure.
14
Alternate trim finish
B
D
To Next Page
