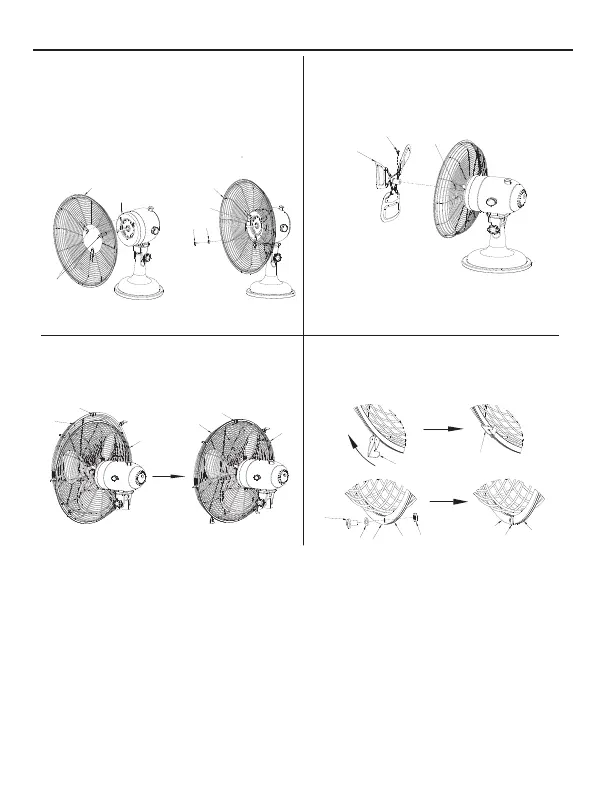

ASSEMBLY INSTRUCTIONS
4
1. Place the rear grille (A) against the motor
housing (B), insert the two upper buckles (C)
into the buckle holes and slide them down to
the holes. Align the lower buckle with the
screw hole and tighten the screw (AA) and
washer (BB) to secure the rear grille (A) to the
motor.
2. Insert the fan blade (D) into the motor shaft (E)
and tighten them by screw (CC).
3. Place the front grill (F) against the rear grill (A)
and push them together by the clip (G).
4. Fasten all the clips (G). Lock the front grill (F)
and rear grill (A) by using screw (DD),
washer (EE) and nut (FF).
A
A
A
A
E
CC
D
F
F
G
G
G
F
F
DD
DD
EE
FF
A
A
B
B
C
AA
BB
