Lighting, Flyover Shelves and Cornice
We strongly recommend that a qualified electrician be used for the installation of
electrical products.
FITTING FLYOVER SHELVES
Three types of material may be used as flyover shelving;
(a) 16mm carcass material
(b) 28mm worktop material
(c) Solid Surface worktop material
All are fitted in the same way, by either;

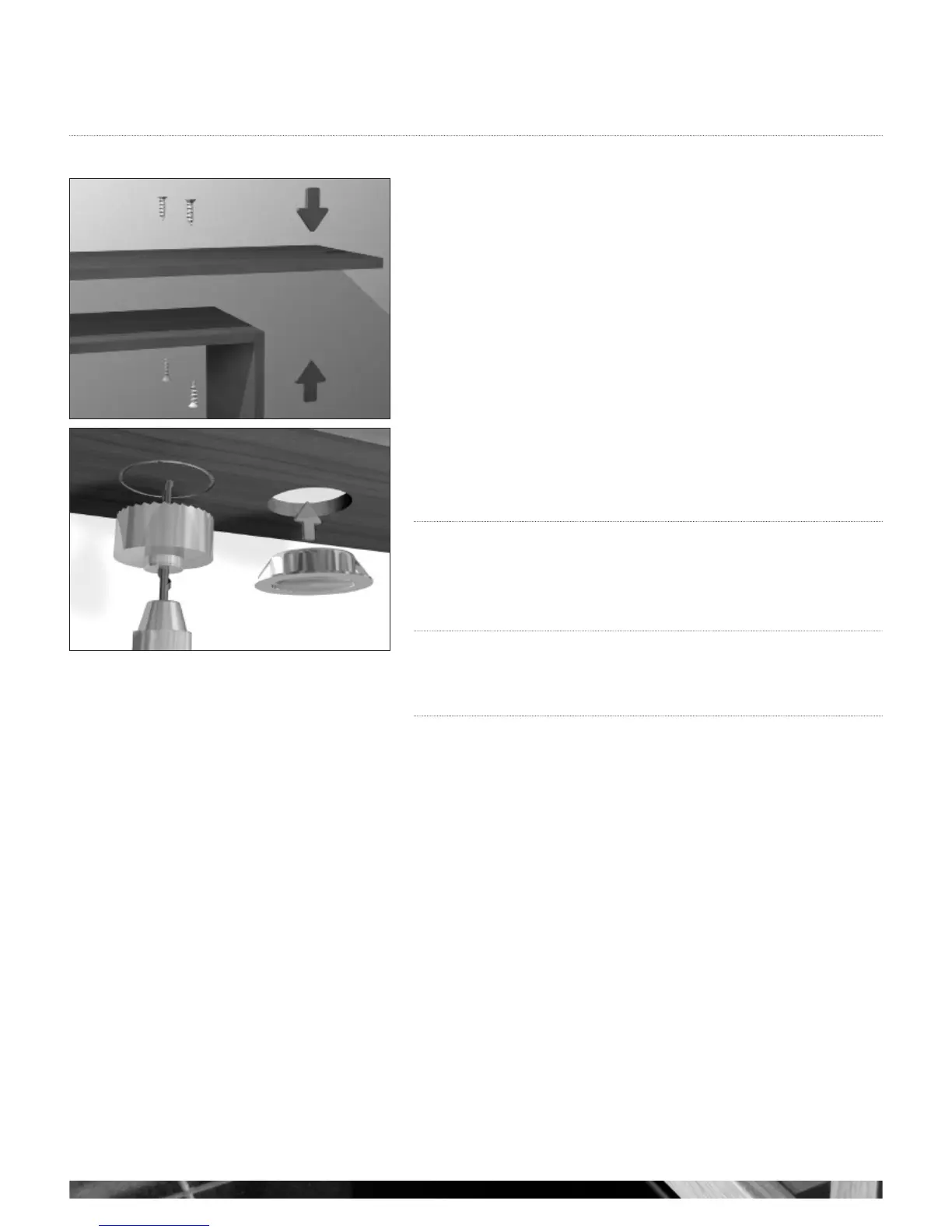

Drilling through the flyover into the top of the unit (see g 1 example 1)
or
Drilling through the top panel of the carcass and screwing into the flyover
(see g 1 example 2)
Do not screw directly into Solid Surface. There must be a 5mm drill hole to clear the 3mm
surface, then screw into the board only.
FITTING LED DOWNLIGHTERS
Drill a hole in the desired position using a 57mm hole saw and push the light into place.
(see g 2)
Please note that the LED downlighters must be used in conjunction with a transformer.
FITTING CORNICE
We recommend that cornice is fitted to the top of wall units in line with the front of the
cabinet.
or
example 2
example 1
g 2
g 1
