page 9
Wall Units

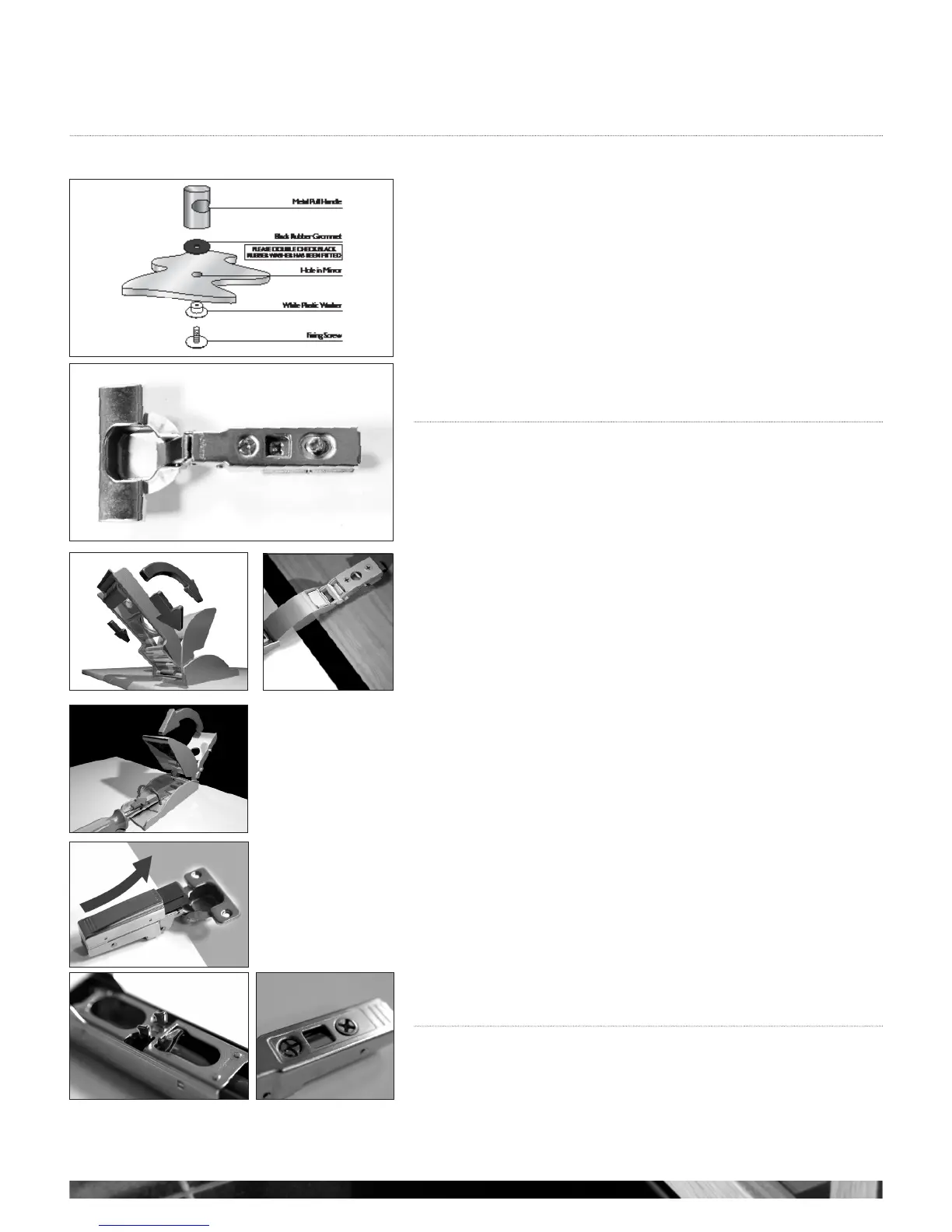

MIRROR CABINET HANDLE FITTING
Please ensure all components are fitted in accordance with the diagram (see g 1).
Please fit hand tight only using a manual screwdriver. Do not overtighten as this may cause
damage to the mirror door.
DOOR ADJUSTMENT
When adjustment is necessary to the doors, follow these directions (see g 2):
W - Lift this clip to release the door from the carcass
X - Adjusts the door’s horizontal position
Y - Adjusts the door’s vertical position
Z - Adjusts the door’s vertical position or this screw being in the hinge fixing plate.
FITTING A MIRROR DOOR ON TO A UNIT
Remove the hinges from the units by lifting the tab underneath the hinge indicated by
position W (see g 2).
Place the hinges on to the glass doors by locating them in to their housing (see g 3 B) and
rotating them forward until they lock in to place.
We advise that the hinge plates fitted are loosened off to allow easy fitting of the door.
Align the door back up to the unit and clip the hinges back in to place on the unit (see g
4).
On full mirror units please ensure when fitting the mirror there is no misalignment with the
three mirror hinges to reduce the risk of stress upon the hinge and glass.
Once the door is in the correct position re-tighten the hinge plates to the cabinets and
carry out final adjustment (see g 2).
To remove the hinge from a glass door (see g 5).
a. Insert a small flat headed screwdriver underneath the release catch
situated inside the hinge.
b. Rotate the blade of the screwdriver through 90º.
c. Close the hinge, releasing it from the bracket.
It is vitally important that all doors are adjusted correctly, as over a period of time the
stresses caused by misalignment can result in failure of the bond between the hinge
plate and the glass surface, and your guarantee will become invalid.
SOFT CLOSE HINGE MECHANISM, REMOVAL AND RE-FITTING
1. This is supplied ready fitted to one of the hinges on the unit. Remove this to gain access
to the hinge adjustment screws by sliding the soft close mechanism off the hinge, towards
the door, as shown in diagram (see g 6).
2. To re-fit the mechanism, simply locate the metal tab (see g 7 b) and the two hooks
(see g 7 c) inside the small hole on the hinge (see g 8 d) and push forward and
down until it clicks in to place.
Y
Z
X
W
c
door
g 1
g 2
g 4
g 5
g 8
g 3
B
X
Y
c
b
d
Z
W
g 6
g 7
