Halo Units

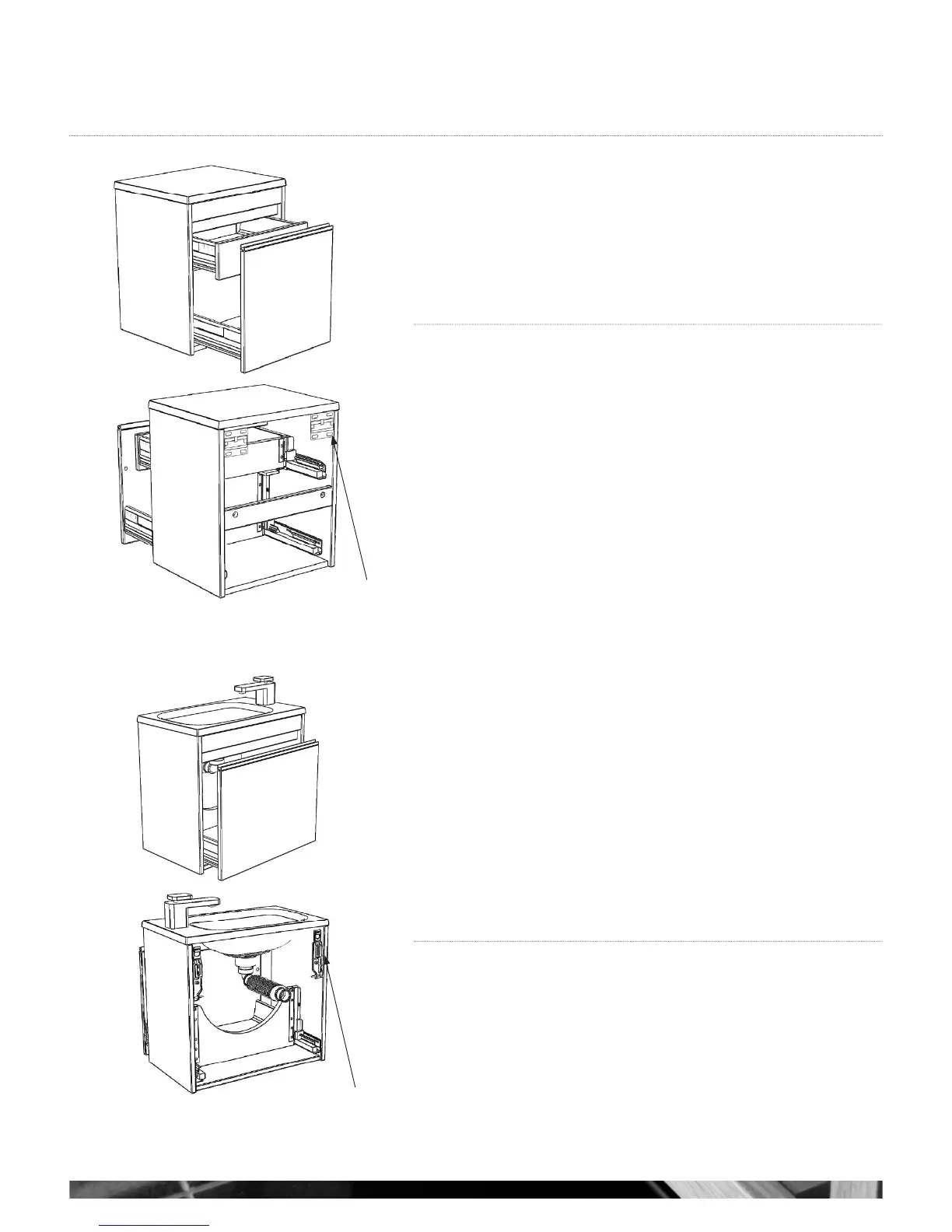

SIDE CABINET
Open and remove the main drawer by lifting the drawer up and pull off runners.
Push the top drawer so that it opens and lift off the runners.
To fit wall brackets and how to mount and adjust cabinet refer to page 20.
Fit and fix worktop or basin into position, refer to page 40 for full fittng instructions.
After worktop or basins have been fitted re-fit drawers.
For drawer adjustment refer to page 5.
CLOAKROOM CABINET
Open and remove the main drawer by lifting the drawer up and pull off runners.
To fit wall brackets and how to mount and adjust cabinet refer to page 14.
Fit and fix basin into position, refer to page 40 for full fitting instructions.
After worktop or basins have been fitted re-fit drawers.
For drawer adjustment refer to page 5.
To square the drawer front to the base unit side:
Open the main drawer, slide the cover plate at the front of the drawer box support rail
backwards (see page 20 g 5), to revel an orange adjusting nut, turn nut either clockwise
or anti-clockwise to level the drawer front to the side gable.
If support rail needs to be removed fully, remove drawer box from unit, at the rear of the
support arm a plastic tab needs to be depressed then pull arm upwards to remove from
rear panel, fold the arm inwards across the drawer front, the arm can then be pulled from
the drawer front.
Cabinet hangers
Cabinet hangers
