5.3
Installing emission filters
To install the 50 mm
2
ethidium bromide (EtBr) filter and any other emission filters:
1.
Carefully remove the filter from the protective plastic case, holding the filter at the edges
to prevent placing fingerprints on the glass surface.

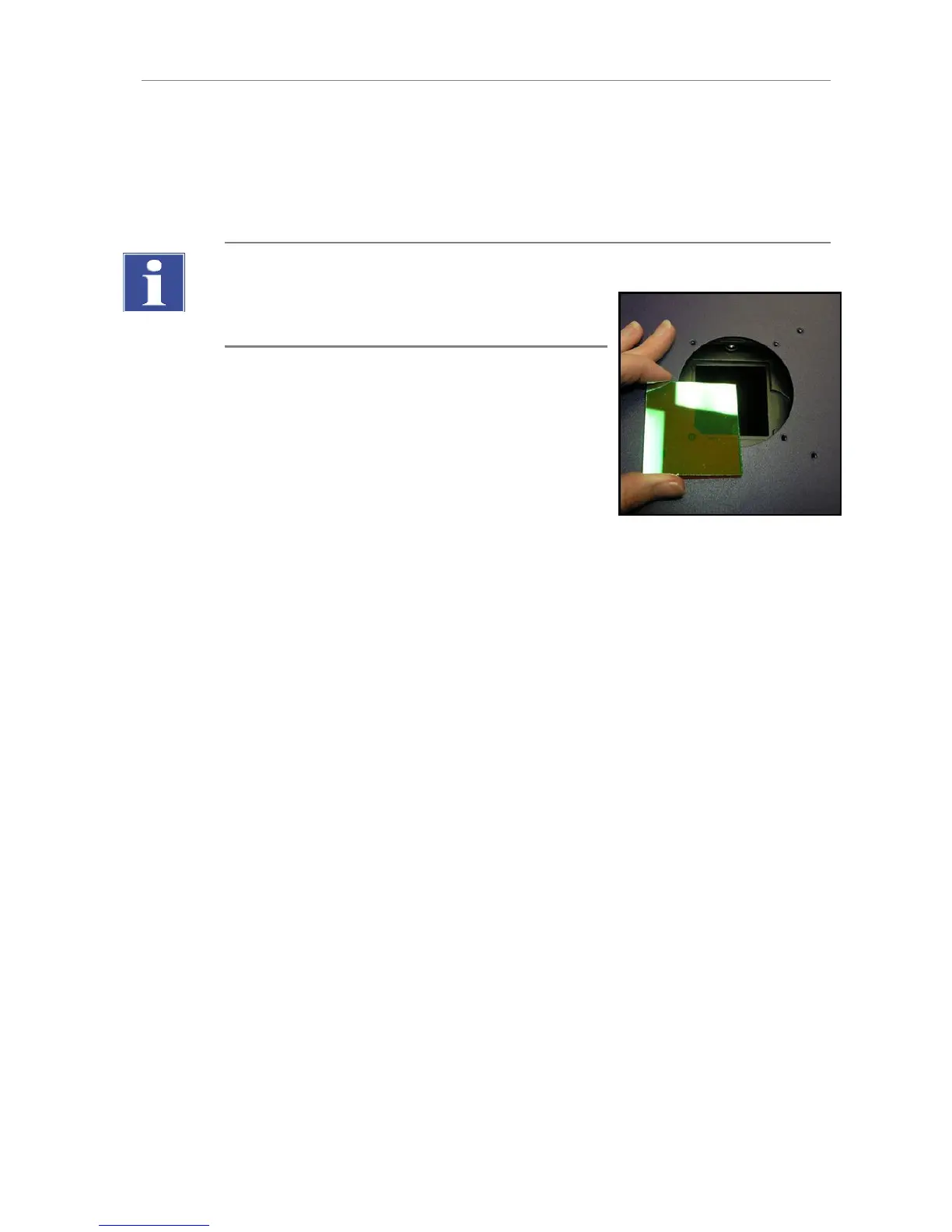

IMPORTANT
It may be necessary to remove the base and camera as-
sembly to insert new filters (photograph shows camera
and base removed).
2.
The filter wheel is located inside the top of the dark-
room. Before placing the filter in the filter wheel, en-
sure that the text on the edge of the filter is posi-
tioned so it is right side up when facing the installer.
3.
Place the filter in the filter wheel.
4.
Write the name of the filter on the appropriate label at
the front of the darkroom.
Additional and replacement emission filters are available through UVP. Refer to the
“Replacement Parts and Accessories” section of this manual for ordering information.
5.4
Camera Setup
High sensitivity, scientific-grade cameras are designed for use with UVP’s imagers. This
section covers the components and steps required to install cameras. The following
cameras are covered in this manual (refer to the packing list for the camera included with
your specific system):
515 CCD
815 CCD
5.4.1
Camera with Manual Lens
The 515 camera, zoom lens and diopter are assembled at the UVP factory.
Note: The camera, lens and brackets may appear different than pictured.
1.
Before installing the camera, install the emission filter. Refer to section: 5.3
Installing emission filters.
2.
Remove the cap from the lens by pulling off, instead of unscrewing.
3.
When using a zoom lens, a step-up ring and diopter should be attached to the lens. The
step-up ring and diopter will only fit one way.
