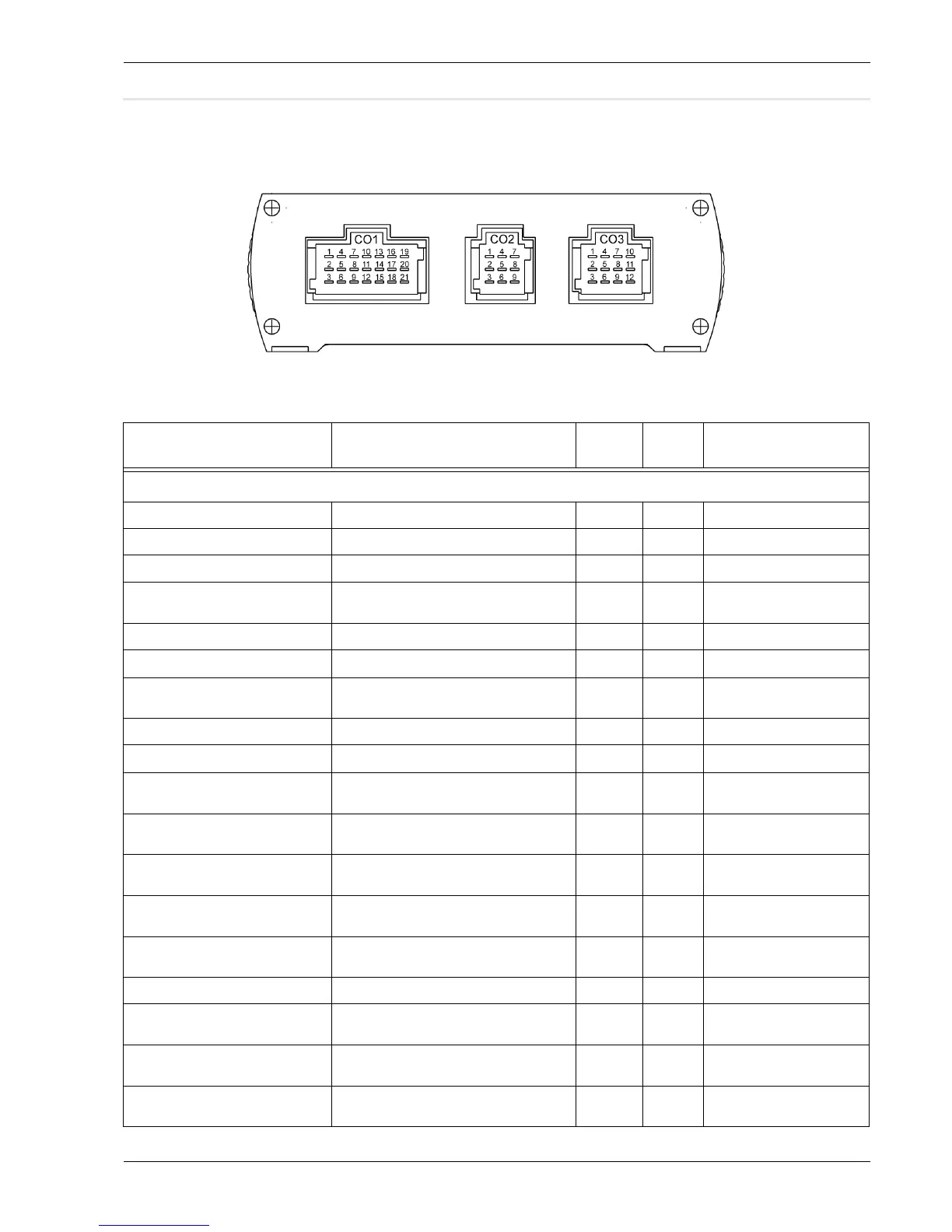

Connection of compartment unit (syst 1)
Connections to components should be performed according to
the table below:
Table 2: Compartment unit
Description Comment
See
footnote
Pin Type
Valve, Flap & analog in CO1 21 pole
Valve, Convector circuit pos. feedb. Open = High Voltage 2) ,4) CO1:1 Analog 0 - 33V
Temp sensor GND, Compartment CO1:2 Sensor ground
Temp sensor, Compartment CO1:3
Analog NTC 4,7k
Ω
Valve, Ventilation circuit Open = 24V. Direct Drive / Motor valve
driver. Non-inverted
2) CO1:4 Solid state outp. 1.9A
Temp sensor GND, feed water CO1:5 Sensor ground
Temp sensor, feed water CO1:6
Analog NTC 4,7k
Ω
Valve, Ventilation circuit Open = 0V. Direct Drive / Motor valve driver.
Inverted
2) CO1:7 Solid state outp. 1.9A
Temp sensor GND, Ventilation air CO1:8 Sensor ground
Temp sensor, Ventilation air CO1:9
Analog NTC 4,7k
Ω
Valve, Convector circuit Open = 24V. Direct Drive / Motor valve
driver. Non-inverted
2) CO1:10 Solid state outp. 1.9A
Valve, Convector circuit Open = 0V. Direct Drive / Motor valve driver.
Inverted
2) CO1:11 Solid state outp. 1.9A
Flap Fresh/Rec, Vent air pos feedb.
Left side
1) ,4) CO1:12 Analog 0 - 33V
Flap Fresh/Recirc, Ventilation air
Right side
Rec = +24V. Source / sink CO1:13 Solid state outp. 1.9A
Flap Fresh/Recirc, Ventilation air
Right side
Rec = 0V. Source / sink CO1:14 Solid state outp. 1.9A
Valve, Ventilation circuit pos feedb. Open = High Voltage 2) ,4) CO1:15 Analog 0 - 33V
Flap Fresh/Recirc, Ventilation air Left
side
Rec = +24V. Source / sink CO1:16 Solid state outp. 1.9A
Flap Fresh/Recirc, Ventilation air Left
side
Rec = 0V. Source / sink CO1:17 Solid state outp. 1.9A
Flap Fresh/Rec, Vent air pos feedb.
Right side
Recirc= High voltage 1) ,4) CO1:18 Analog 0 - 33V
