TIMER FUNCTION
This function permits to program the time bands of opening and
closing. It is necessary to connect a 24h timer with a contact
normally open in parallel with the START or PEDESTRIAN START
input. When the timer contact is closed, the gate gets into
opening phase and remains opened until the contact of the timer
opens causing the re-closing of the gate.
 IMPORTANT: for a correct functioning it is necessary to
activate the automatic closing (menu Ch.AU.)

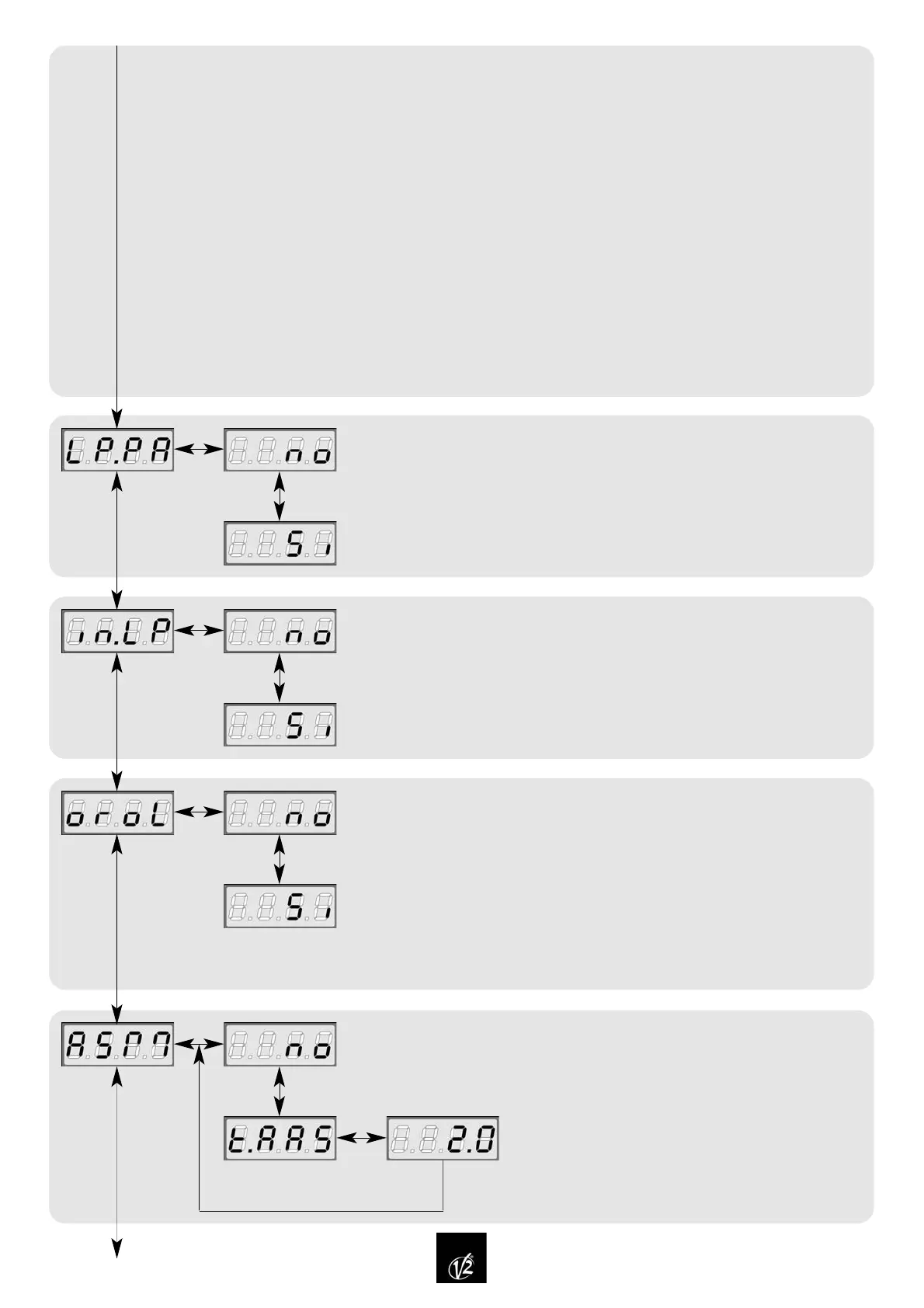

FLASHLIGHT WITH INTERMITTENCE
The control unit PD1 permits the connection of a flashlight with or
without intermittence. If the flashlight is equipped with an inner
intermittence effect, it is necessary to select the option "Si", but
if it has no inner intermittence, it is necessary to select the
option "no" in order to make it flash.
FLASHLIGHT IN PAUSE
This menu permits to activate or to disable the flashlight during
the pause time.
The lights turn on with a START or PEDESTRIAN START control. It is also possible to control this
connection using the code memorized in the radio input tEL4, in this last case the connection
"courtesy light" becomes an auxiliary connection to which it is possible to match one of the
following functional logics:
monostable: it activates the output relay through all the tx transmission time, when the
transmission ends the relay is disconnected.
bistable: it activates the relay with the tx first transmission, the relay disconnects with the
second transmission.
timer: the tx transmission triggers the relay which disconnects automatically after a time
adjustable between 0 and 999 seconds.
t.LUC the courtesy lights start from a time adjustable from 0 to 999 seconds.
CiCL the courtesy lights are on through the whole cycle.
AUS auxiliary exit with adjustable logical functioning.
If the function selected is AUS, one of the following will appear on the display:
tiM timed auxiliary exit (time adjustable from 0 to 999 seconds)
biSt auxiliary output relay with bistable functioning
Mon auxiliary output relay with monostable functioning
MOTOR ANTI-SKID
The anti-skid function prevents that the repeated
ùinterruption of the opening and closing cycle causes
delays in the cycle completion.
no the antiskid function is not activated
t.AAS the antiskid function is active, with an additio-
nal time in opening and in closing adjustable from
0 to 120 seconds (±0,5).
