End of Stroke Inputs
PD18 control unit allows connecting magnetic limit switch which are
activated by the door motion and showing to the control unit that each
door reached its position of complete opening or closing.
Si end of stroke inputs are enabled
no end of stroke inputs are disabled

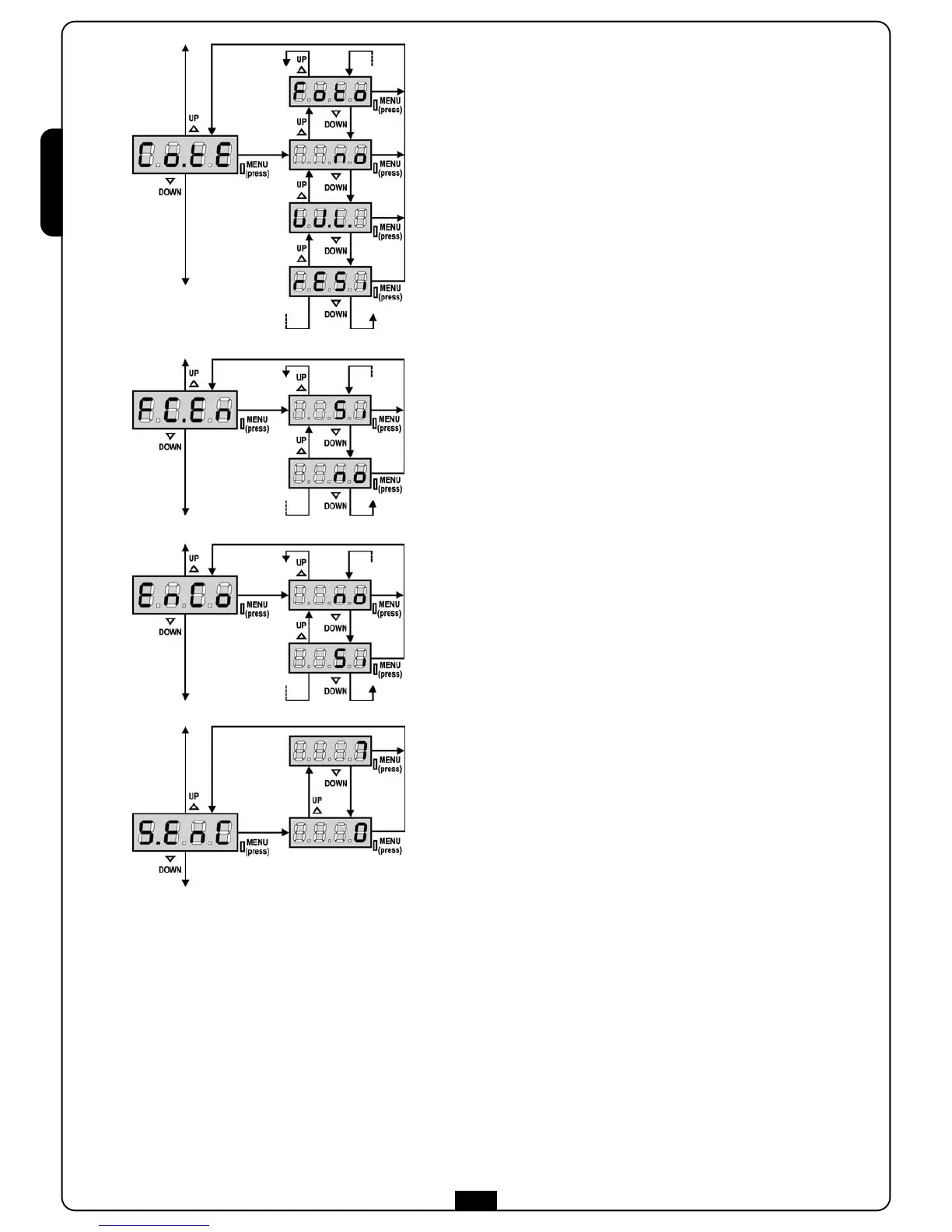

Test of the safety edges
This menu allows setting the method of control of the safety edges
working.
no Test disabled
Foto Test enabled for optical safety edges
rESi Test enabled for conductive rubber safety edges
W.L. Wireless edge system test enabled
m WARNING: V2 suggests to keep activated the test of the
photocells in order to grant a higher safety of the system.
Encoder Input
The PD18 control unit allows connection of the encoder indicating
the position of the gate to the control unit.
Si encoder input enabled
no encoder input not enabled
m CAUTION: for a correct operation of the encoder it is
necessary to perform the WORK TIMES SELF-LEARNING
procedure.
Encoder sensitivity
This menu allows the sensitivity of the rate sensor to be adjusted.
A decreased rate below the set threshold indicates the presence of an
obstacle.
If set to 0 the obstacle is only detected when the gate is stopped.
For sensor operation, please refer to the dedicated section “OBSTACLE
SENSOR” (page 40)
