VAC V200 - General Mounting Instructions; Rotary Actuators; Linear Actuators

V200 POSITIONER
www.vacaccessories.com
92026r15
7
Hole pattern II.eps
depth
depth

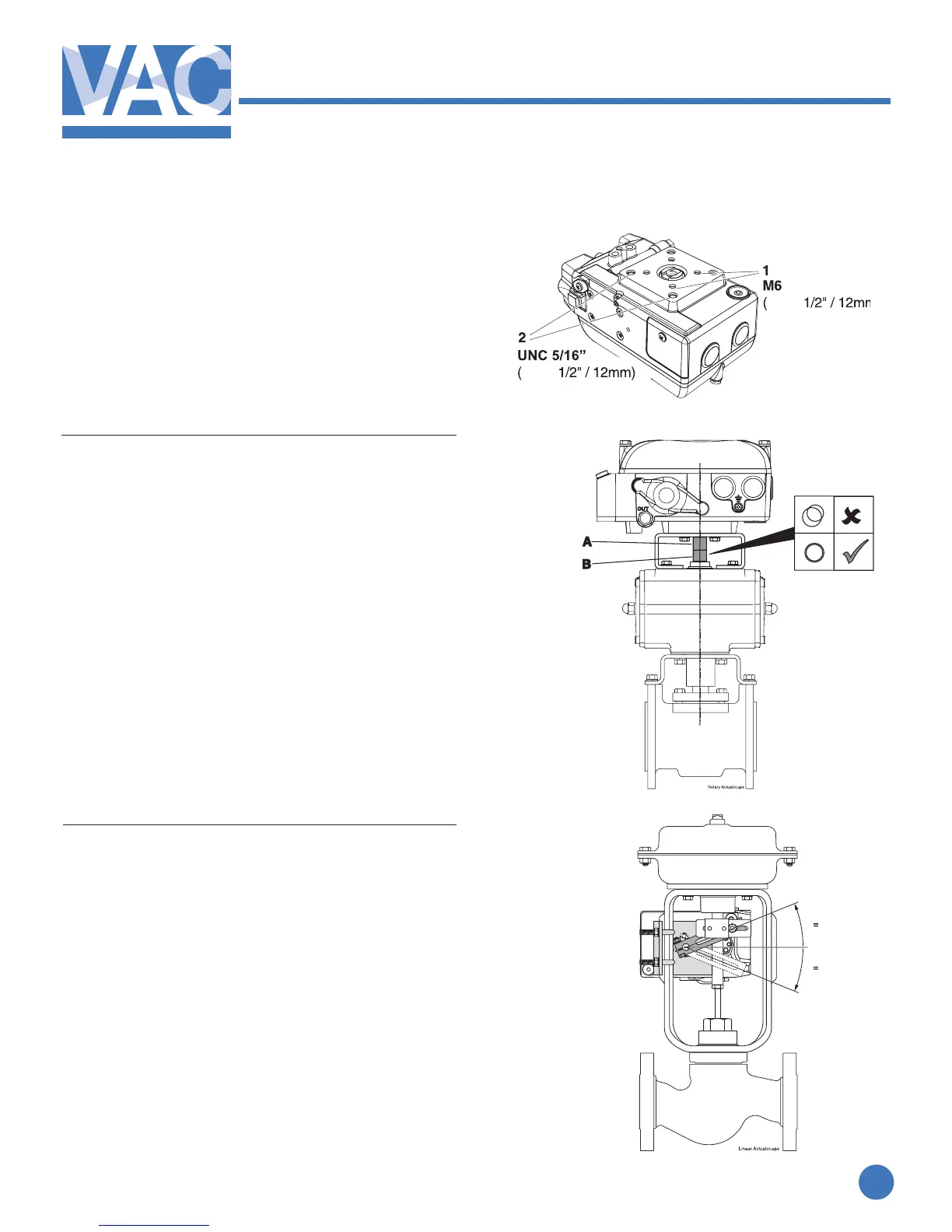

TheV200hastheISOF05holepattern(1)
and 2¼” x 2¼” hole pattern(2).
2.2.1 Rotary actuator
TheVACV200hasaverystableandproperly
sized drive shaft bearing. However, the posi-
tioner drive(A) should be aligned properly to
the rotary actuator spindle(B).
A relatively small error combined with a rigid
coupling can create very powerful radial
forces, which can overload and cause
premature wear.
2.2.2 Linear actuator
When mounting to linear actuators, the
positioner should be attached in such a
way that its drive is in the center (mid stroke)
of the actuator’s stroke. Proper installation
and alignment will minimize linearity error.
2.2 General mounting instructions.
