7.3.7 Expander board menu (M7)
In the Expander board menu the user can 1) see the expander boards connected to the control board
and 2) see and edit the parameters associated with the expander boards.
Go to the next menu level (G#) with
Menu button right . At this level, you can browse through slots A
to E (see page 52) with the
Browser buttons to see which expander boards are connected to the
control board. On the lowermost line of the display, you will also see the number of parameters
associated with the board. You can view and edit the parameter values as described in Chapter 7.3.2.
See Table 7-10 and Figure 7-23.
Expander board parameters
Code Parameter Min Max Default Cust Selections
P7.1.1.1 AI1 mode 1 5 3
1=0…20 mA
2=4…20 mA
3=0…10 V
4=2…10 V
5=–10…+10 V
P7.1.1.2 AI2 mode 1 5 1 See P7.1.1.1
P7.1.1.3 AO1 mode 1 4 1
1=0…20 mA
2=4…20 mA
3=0…10 V
4=2…10 V

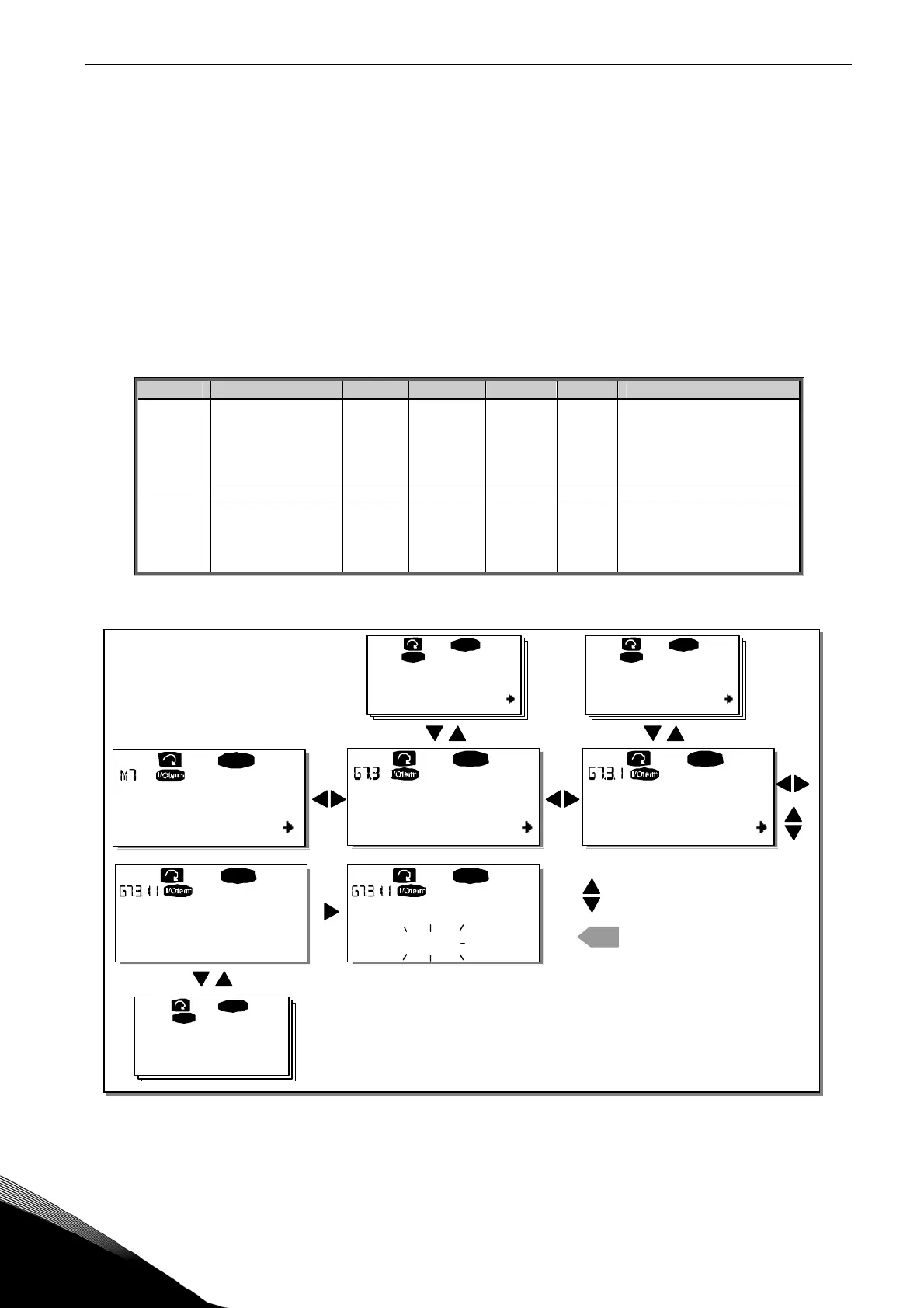

Table 7-10. Expander board parameters (board OPT-A1)
Figure 7-23. Expander board information menu
G1

G5
READY
READY
G1

G2
READY
READY
enter
P1

P4
READY
I/ Ot er m
G1

G2
READY
I/ Ot er m
V1

V2
READY
READY
I/Oterm
D:NXOPTC2
C:NXOPTC1
Expander boards
Parameters
Slave address
126
Slave address
126
Baud rate
Auto
Monitor
CHANGE VALUE
CONFIRM CHANGE
