VADA FLOW BOSS VFB-DSU - PRODUCT DIMENSIONS; TECHNICAL INFORMATION; VFB-DSU Pressure Loss

0
0
100
50
150
250
200
300
20 3010 40 50 60 70
Flow (litres per minute)
VFB-DSU Pressure Loss
Mains
Pump
Pressure (kPa)
80 90 100
2120 VADA FLOW BOSS DIGITAL WATER SWITCHING UNIT VFB-DSU INSTALLATION MANUAL

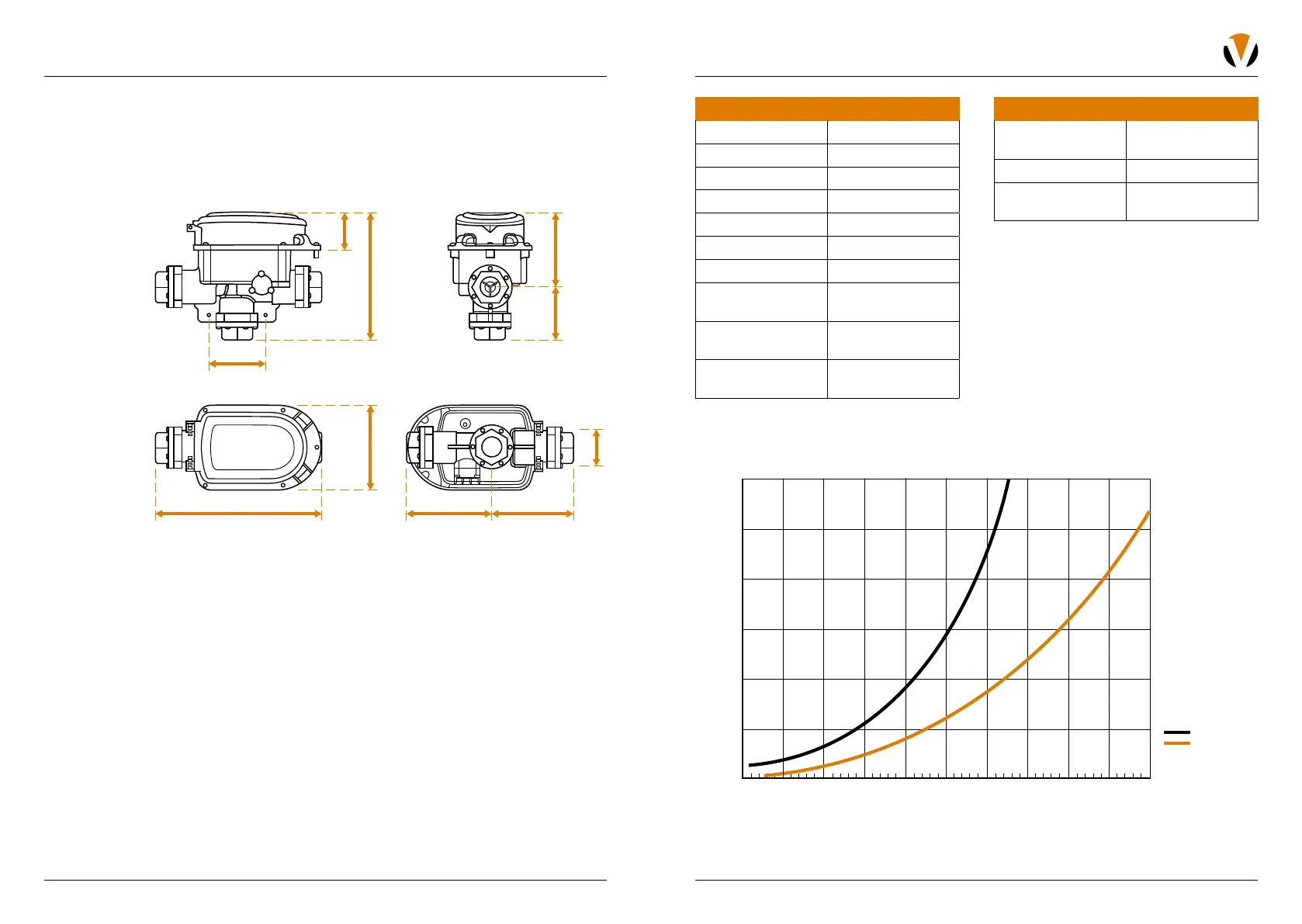

PRODUCT DIMENSIONS
SPECIFICATIONS
Supply voltage 1~230 – 240 50Hz
Max electrical load 10A / 2400W
Power standby 3.5W
Control power (on) 30W
IP rating IP44
Min flow rate 1lpm
Min mains pressure 1 bar
Max operating
pressure
10 bar
Min – max water
temperature
1°C – 40°C
Min – max ambient
temperature
1°C – 40°C
CONNECTION
Mains water
supply inlet
25mm FI BSP
Pump connection 25mm FI BSP
Water outlet
connection
25mm FI BSP
TECHNICAL INFORMATION
C
F H I
A
B
J
G
D
E
A. 52mm
B. 181mm
C. 80mm
D. 106mm
E. 75mm
F. 235mm
G. 119mm
H. 120mm
I. 115mm
J. Ø48mm
