VADA VFB-HM110 - Page 27

25mm barrel union
25mm barrel union
25mm Y-Strainer
Solid level base
25mm
isolation
valve
25mm
swing
check
valve
100mm
House wall
VFB-APC
Recommended
150mm
VFB-MSU25
25mm isolation
valve
To house
Discharge pipe
min 25mm
25mm isolation
valve
Mains pipe
min 25mm
From mains
Min 100mm
Recommended
150mm
Flow
25mm barrel union
25mm
barrel union
Ground level
Solid base
House wall
100mm
Suction pipe
min 25mm
Foot valve
VFB-APC
VFB-MSU25
25mm isolation
valve
To house
Discharge pipe
min 25mm
25mm isolation
valve
Mains pipe
min 25mm
From mains
Min 100mm
27

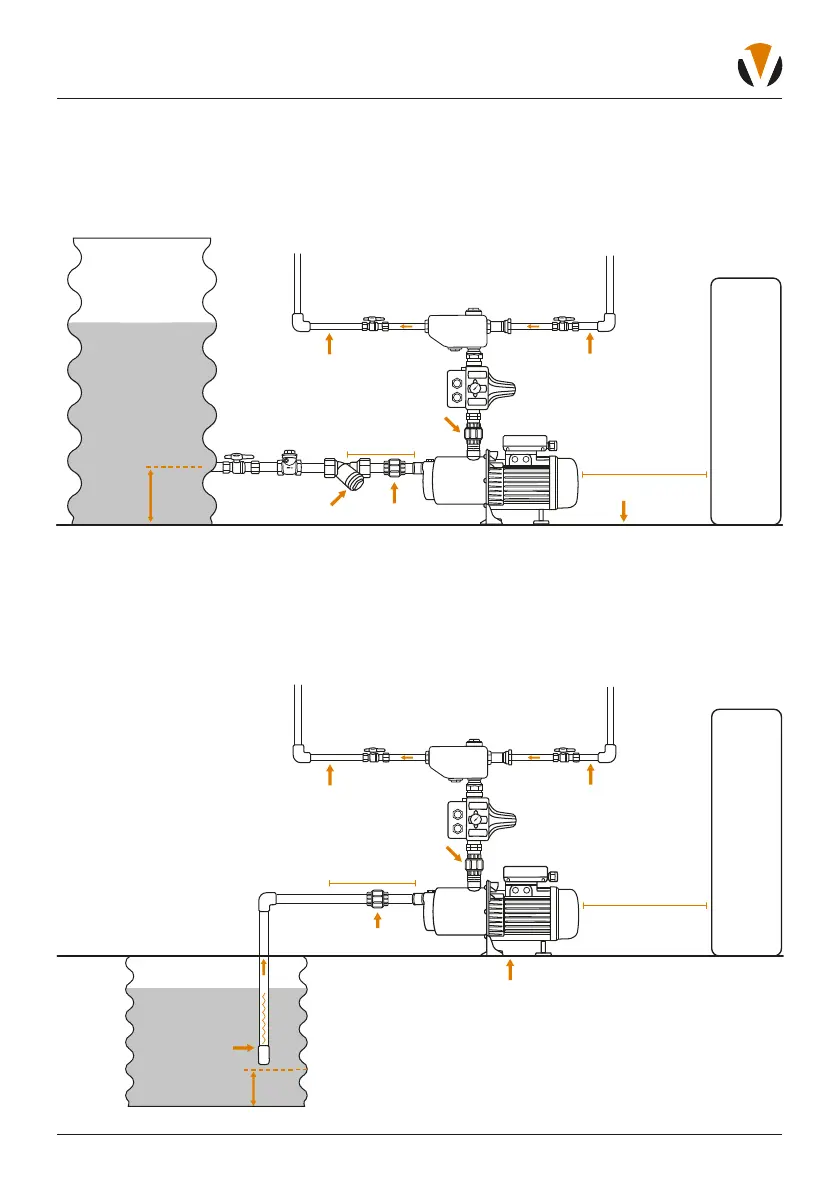

FLOW BOSS SET UP OPTIONS
Set up 1: Above Ground Mechanical Water Source Switching
• Vada Flow Boss Horizontal Multistage Pump VFB-HM110
• Vada Flow Boss Auto Pressure Control VFB-APC
• Vada Flow Boss Mechanical Water Switching Unit 25mm VFB-MSU25
Set up 2: Below Ground Mechanical Water Source Switching
• Vada Flow Boss Horizontal Multistage Pump VFB-HM110
• Vada Flow Boss Auto Pressure Control VFB-APC
• Vada Flow Boss Mechanical Water Switching Unit 25mm VFB-MSU25
