Vageo V-DCS3 - Page 4

4

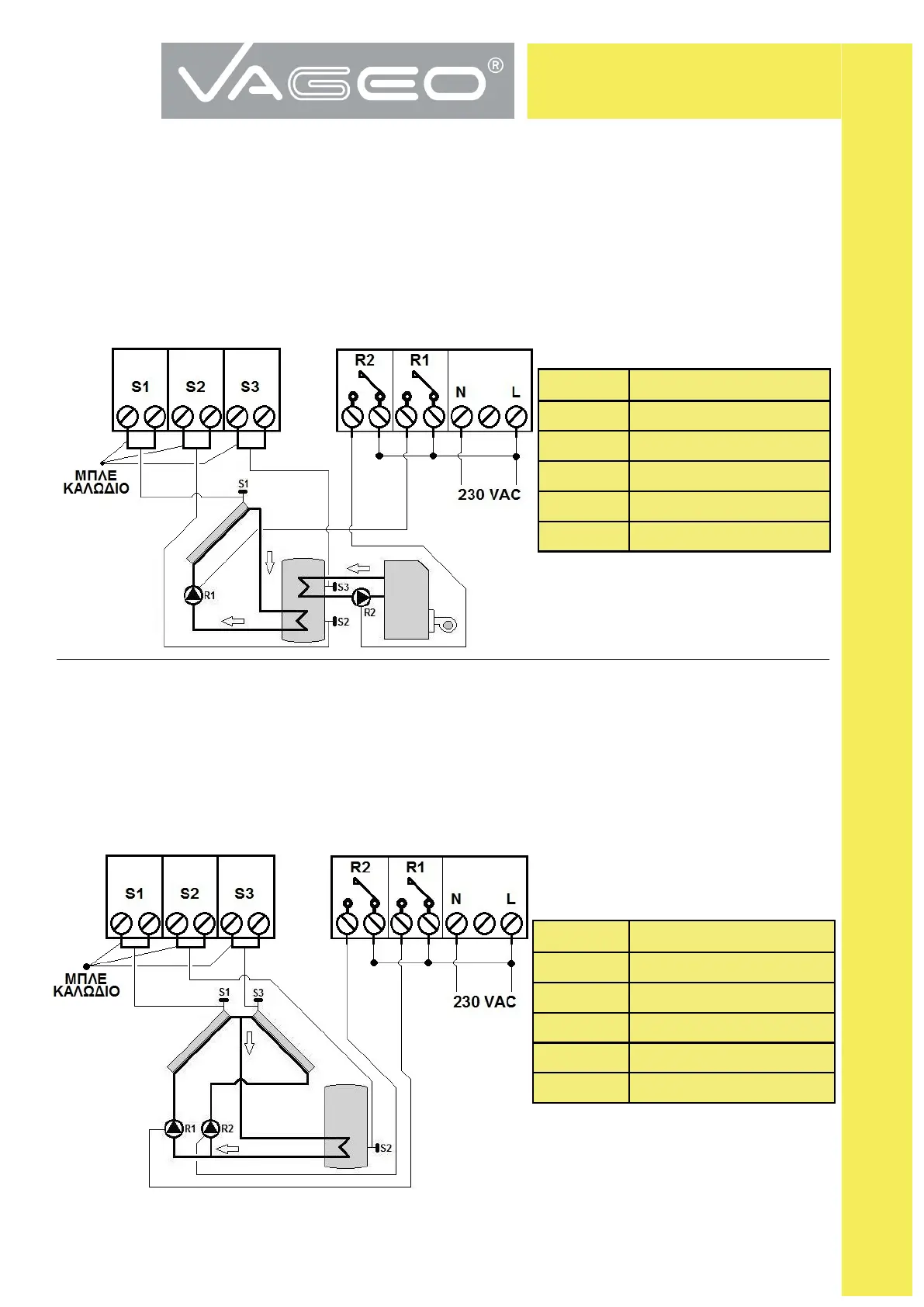

3rd Application:
Forced circulation with 1 sink, 1 solar pump system, three temperature sensors (one col-
lector & 2 sink) and control auxiliary source for domestic hot water circulator means sec-
ond (R2).
! Note: The terminals notation R1 & R2 are dry relay contacts. The sensing device of a
type V-KTY50 KTY200 (See page 10) and have polarity.
4th Application:
Forced circulation with 1 sink, 2 pumps solar collector system for each different orienta-
tion and 3 temperature sensors (two panels and one sink).
! Note: The terminals notation R1 & R2 are dry relay contacts. The sensing device of a
type V-or V-KTY50 KTY200 (See page 10) and have polarity.
Symbols
Description
S1
Sensor Collector
S2
Lower Tank Sensor
S3
Over Tank Sensor
R1
Solar Pump System
R2
Auxiliary Pump Source
Symbols
Description
S1
Sensor Collector No1
S2
Tank Sensor
S3
Collector Sensor no2
R1
Solar Pump System No1
R2
Solar Pump System No2
