Vaillant ecoLEVEL - Connection type A (ecoMAX)

8 Installation and maintenance manual ecoLEVEL
Connection type A (ecoMAX):
Connect the overflow safety switch to the boiler‘s low
voltage circuit in the following manner:
• Open the boiler electrical box.
• Remove the cable bridge from the blue slot (“Anl-
Therm”) on the circuit board.
• Plug the blue Pro E plug on the end of the ecoLEVEL
condensate cable into this slot.
987
5
4
3
N
L
N
L
Pumpe 2. Pumpe
Anl - Therm
L N
24V I 230V
RT 24V
230V
RT 230V
X 10
X 7
X 8
X 2
13
1
1
1
1
Codierwiderstand
1
2

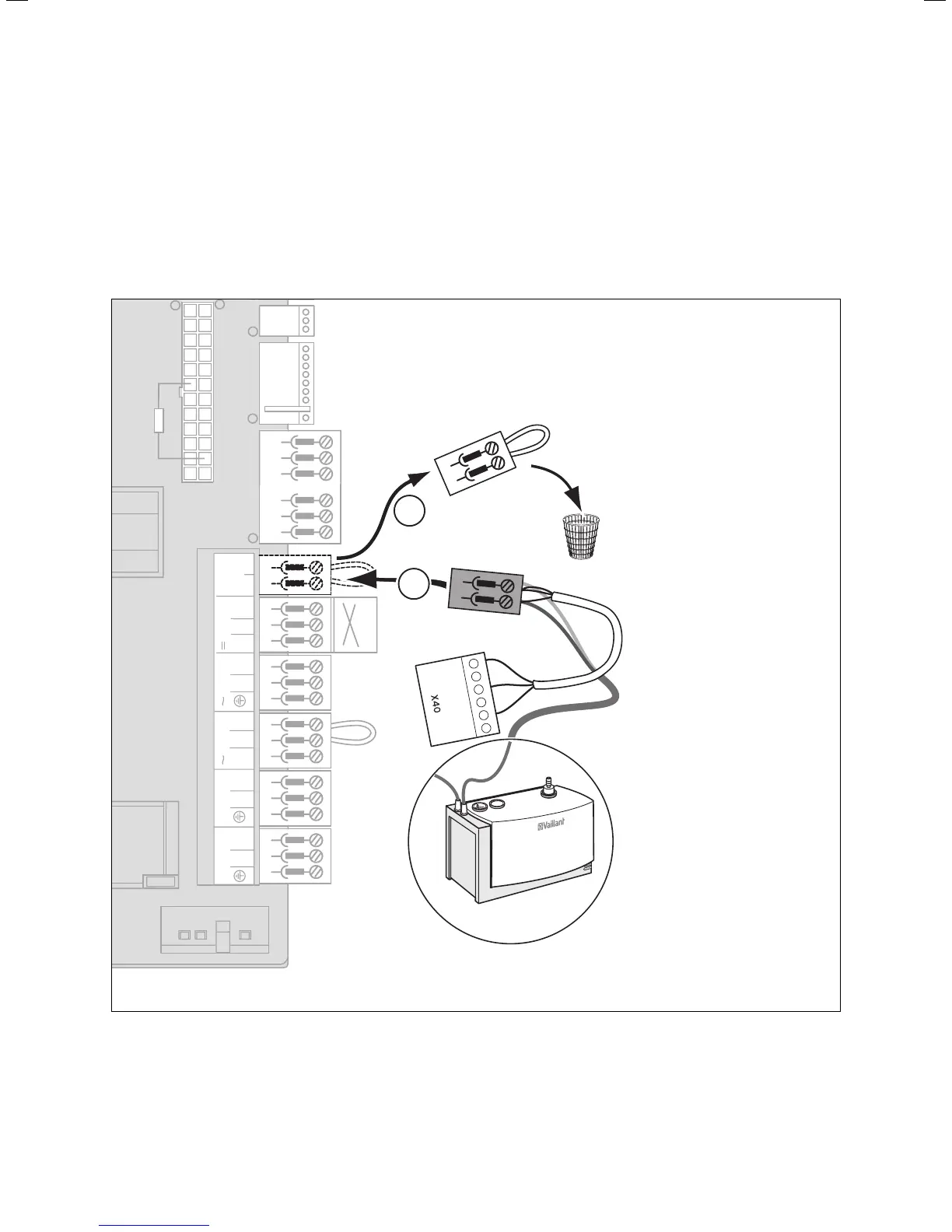

Fig. 6.2 Connecting the overflow safety switch, connection
type A
6 Electrical connection
