Notes on the documentation 2
0020189874_03 ecoTEC exclusive Operating instructions 5
2 Notes on the documentation
2.1 Observing other applicable documents
You must observe all operating instructions enclosed with
the system components.
2.2 Storing documents
Keep this manual and all other applicable documents
safe for future use.
2.3 Applicability of the instructions
These instructions apply only to:
Product article number
VC 156/5-7 (N-DE) ecoTEC exclusive
0010014917,
0010024212
VC 216/5-7 (N-DE) ecoTEC exclusive
0010014919,
0010024213
VC 246/5-7 (N-DE) ecoTEC exclusive
0010022159,
0010024216
VC 276/5-7 (N-DE) ecoTEC exclusive
0010014922,
0010024214
VC 326/5-7 (N-DE/DK) ecoTEC exclusive
0010014924,
0010024215
VCW 266/5-7 (N-DE) ecoTEC exclusive
0010017094,
0010024217

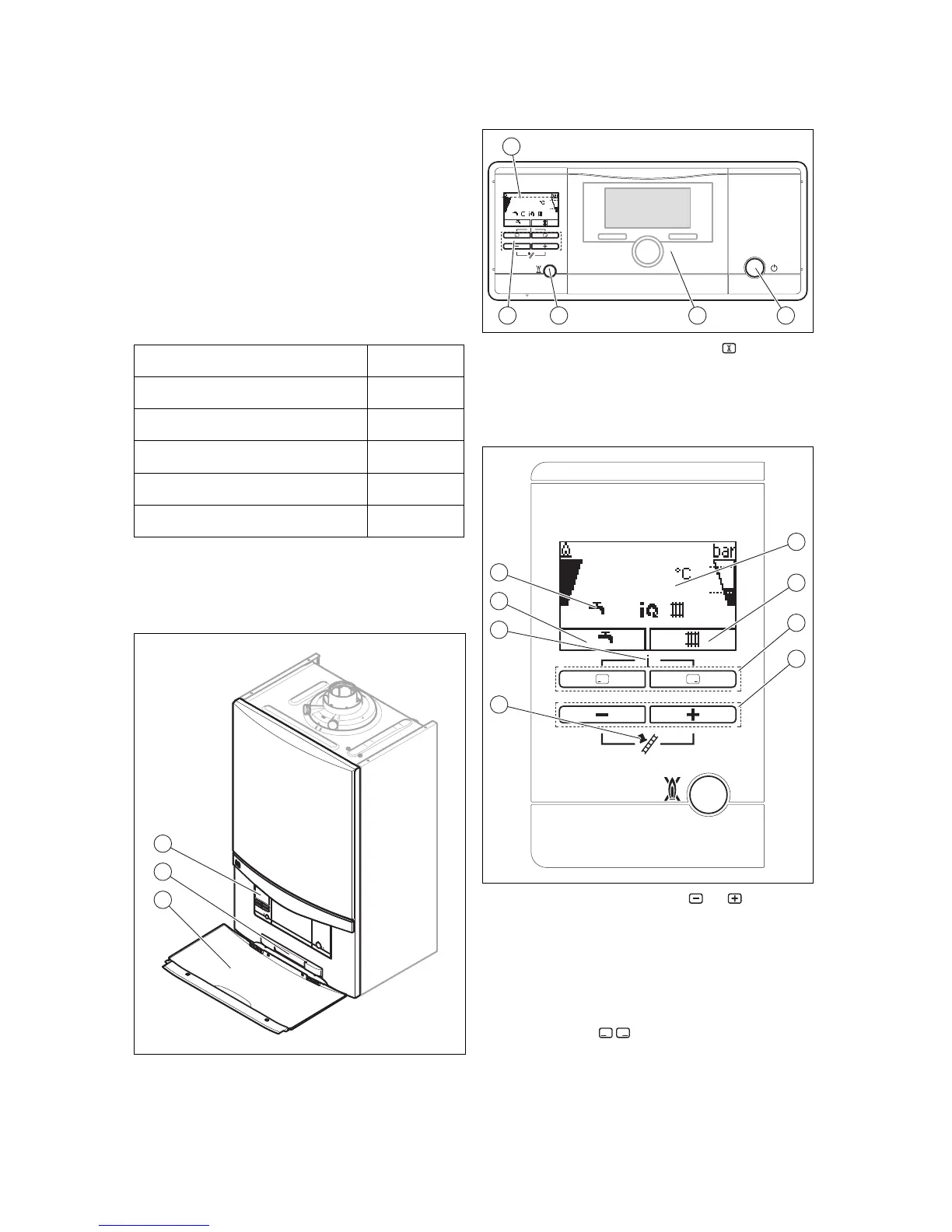

3 Product description
3.1 Product design
1
2
3
1 Control elements
2 Plate with serial number
on the rear
3 Front flap
3.2 Control elements
50
5
4 3 2 1
1 On/off button
2 Built-in controller (ac-
cessory)
3
Reset button
4 Operating buttons
5 Display
3.3 Operator control panel
50
1
8
7
6
5
2
3
4
1 Current heating flow
temperature, filling
pressure of the heating
installation, operating
mode, fault code or
additional information
2 Current assignment of
the right-hand selection
button
3 Left- and right-hand
selection buttons
4
and button
5 Maximum output op-
eration (for chimney
sweeps only)
6 Access to the menu for
additional information
7 Current assignment of
the left-hand selection
button
8 Active operating status
The display lights up
if you switch on the product or
