6 Installation instructions for VED electric instantaneous water heater 0020149586_00
3 Equipment and functional
description
3.1 Overview
4
3
1
5
6
7
8
9
10
2
11
12

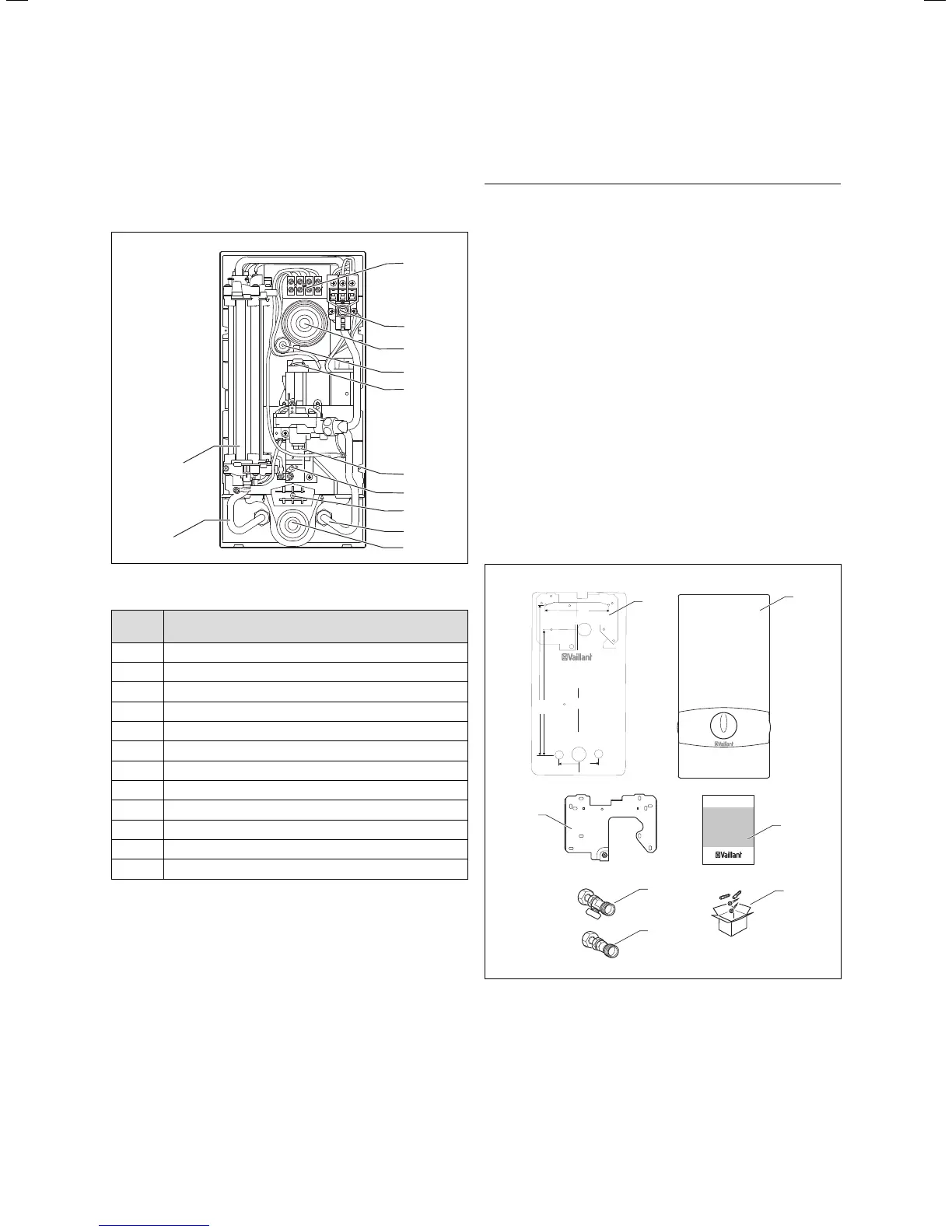

Fig. 3.1 Overview of the VED
Number Component
1 Mains connection terminal
2 Safety switch
3 Upper anti-spray-water sleeve
4 Adjustment spindle
5 Flow Switch
6 Flow switch
7 Partial load switch
8 Space for optional mains connection terminal
9 Cold water connection
10 Lower anti-spray-water sleeve
11 Hot water connection
12 Heating block
Tab. 3.1 VED components
3.2 Function
Using bare wire heating in the unit's heating block,
drinking water is heated and can then be guided to one
or more draw-off points. The amount and heat of the hot
water is dependent on the VED performance category
and settings. The performance of each VED unit is listed
in the Technical Data table in section 11.
4 Installation
a
Risk of death!
Risk of death due to improper installation!
All work involved in the installation, set-up,
maintenance and repair of the VED electric
instantaneous water heater must only be car-
ried out by a recognised competent person,
who also assumes the responsibility for
installing the unit properly and commissioning
it for the first time. The VED electric instanta-
neous water heater must be installed in strict
compliance with these installation instruc-
tions.
i
Flush the cold water pipes thoroughly before
installation.
4.1 Scope of delivery
> Check that the scope of delivery is complete
(see tab. 4.1).
6
2
1
7
3
4
5
390
322
Hot water connection
Cold water connection
Bottom
electrical connection
As required:
Additional fixing point for back wall
Installation template
for VED
100
Top electrical connection
170
Mounting plate
Fixing points
Fig. 4.1 Scope of delivery
