4.4 Mounting the unit to the wall
4.4.1 Unit and connection dimensions
240
100
7050
277
481
322
5
16
19
100
R 1/2
35 35
1
2
3
5
6
4

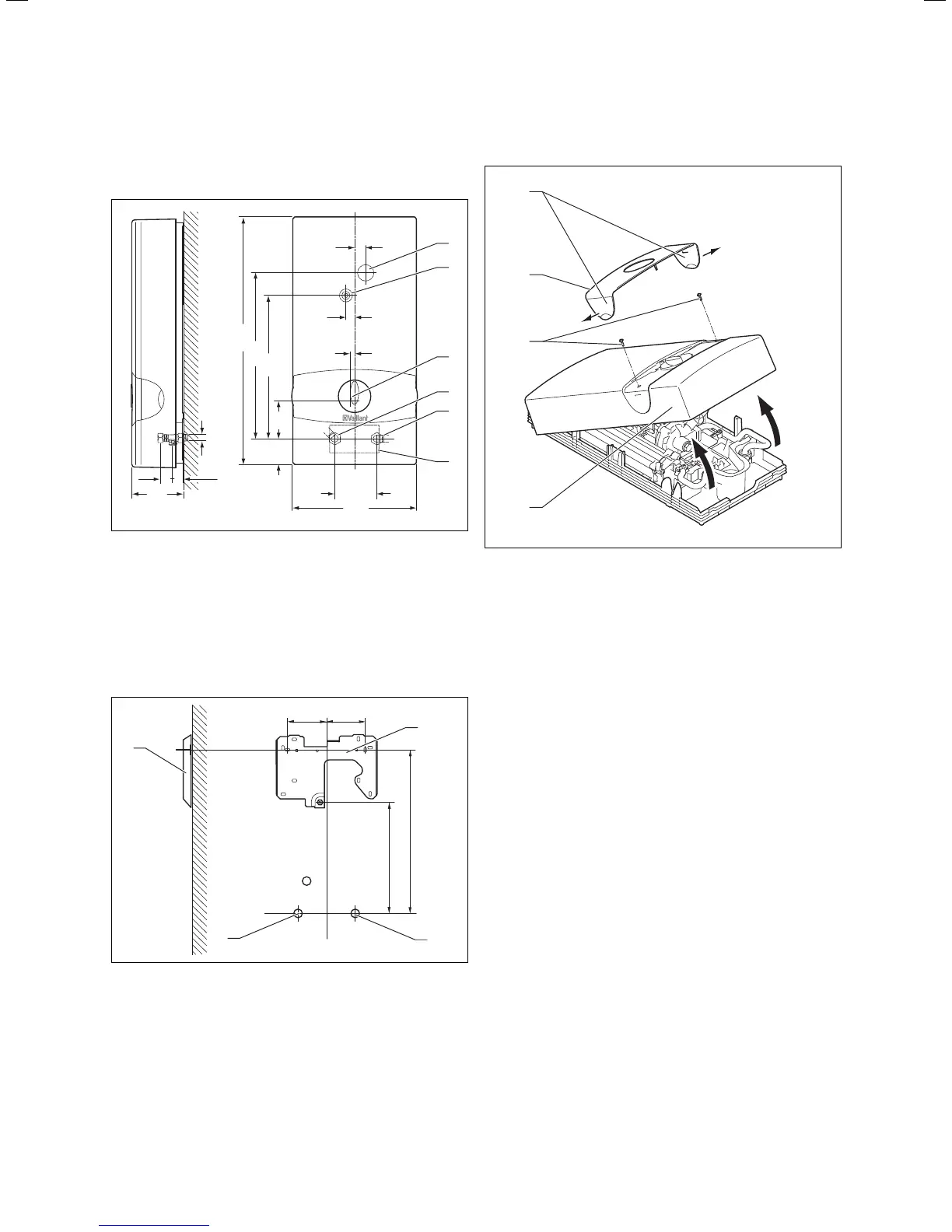

Fig. 4.3 Unit dimensions
Key
1 Upper anti-spray-water sleeve
2 Central attachment
3 Output selector
4 Hot water connection R 1/2
5 Cold water connection R 1/2
6 Lower anti-spray-water sleeve
R Outside thread R 1/2
390
322
8585
1
1
2
3
Fig. 4.4 Connection dimensions
Key
1 Installation plate
2 Cold water connection
3 Hot water connection
4.4.2 Removing the unit cladding
1
3
4
2
Fig. 4.5 Removing the unit cladding
> Grip the two straps (1) on the panel (2).
> Splay the two straps (pull them away from the unit).
> Remove the panel (2).
> Undo both bolts (3).
> Remove the cover (4) from the unit.
