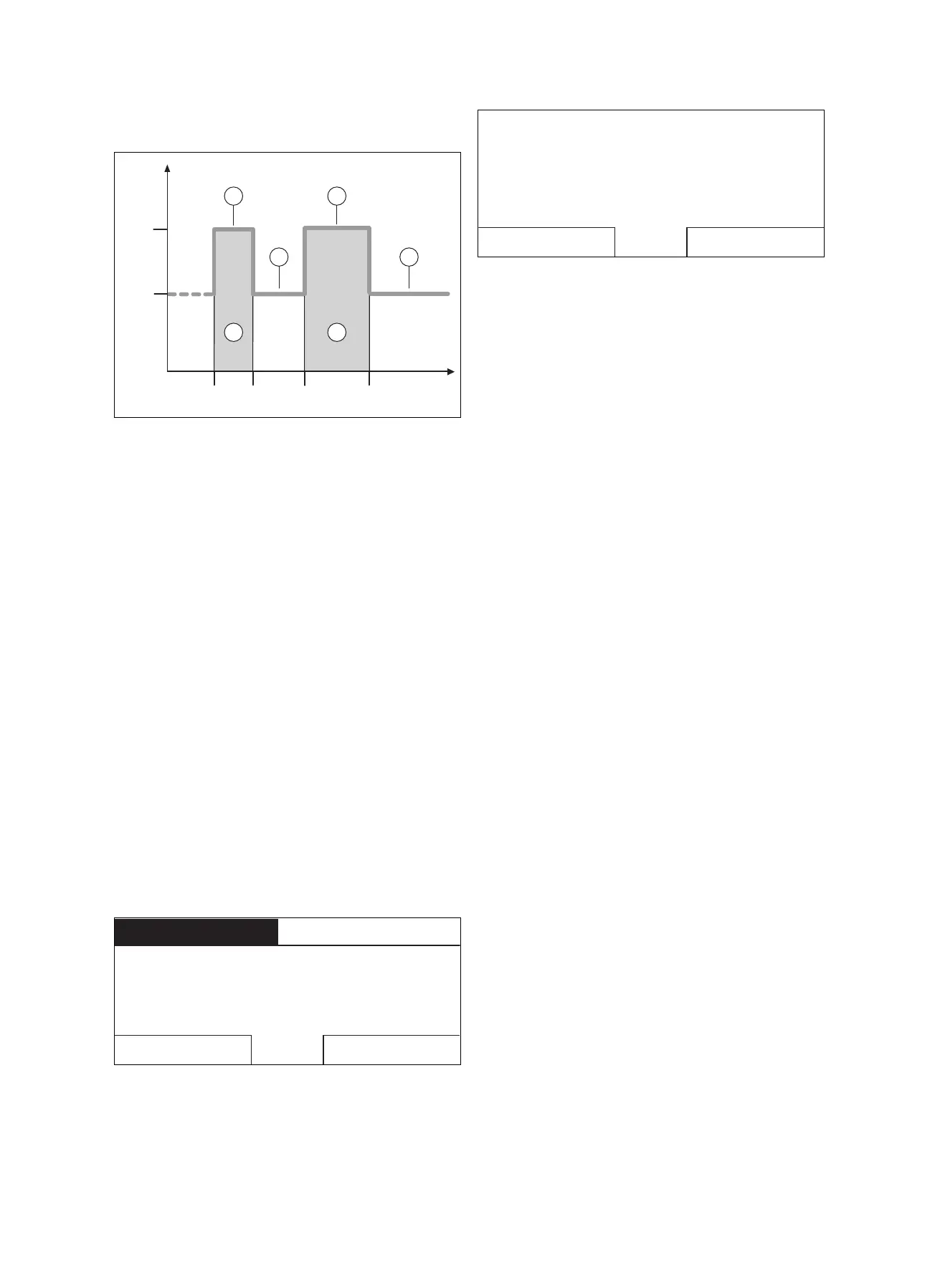

5.2.3.1 Heating operating mode example: Time
period for a day
18:0016:30
22:30
16 °C
21 °C
20:00
A
B
1
3
1
4
2 2
A Time
B Temperature
1 Day temp. heating
2 Set-back temp. heat.
3 Time period 1
4 Time period 2
You can specify the temperatures (Day temp. heating and
Set-back temp. heat.) in the Setting the Desired temperat-
ures (→ Page 11) function.
You can specify the times for the time periods in the Setting
time programmes Heating (→ Page 12) function.
Day temp. heating: 21 °C
Set-back temp. heat.: 16 °C
Period 1: 16:30-18:00
Period 2: 20:00–22:30
Within the time periods, the system control maintains the
room temperature at the set Day temp. heating.
Outside of the time periods, the system control maintains the
room temperature at the set Set-back temp. heat..
5.2.3.2 Setting time programmes quickly
If, for example, you require different time periods for just
one working day in the week, first set the times for the entire
block Monday - Friday. Then set the different time period for
the working day.
5.2.3.3 Displaying and changing different times in
the block
Monday - Sunday
Period 1:
Period 2:
Period 3:
!! : !! - !! : !!
!! : !! - !! : !!
!! : !! - !! : !!
Back
Select
If you view a block in the display and have defined a different
time period for a day in this block, the display indicates the
time periods in the block with !!.
Individual dates vary from
the selected time programme
Mo-Su.
OKBack
If you press the right-hand selection button Select, a mes-
sage appears on the display which informs you about differ-
ent time periods. You do not need to adjust the times.
You can use the right-hand selection button OK to display
and change the set times for the block marked with !!.
5.2.3.4 Setting the Heating time programme
Menu → Time programmes → ZONE1
– The time programmes are only effective for the Heat-
ing operating mode in automatic mode. Within the time
periods, the system control brings the temperature of
the connected rooms to the set desired temperature Day
temp. heating. Outside of these time periods, the system
control switches to the operating mode that the compet-
ent person has set: Eco or Set-back temp. heat.. If the
competent person has left the factory setting Eco, the
system control switches off the heating function.
Setting the Heating operating mode. (→ Page 15)
5.2.3.5 Setting the Cooling time programme
Menu → Time programmes → ZONE1: Cooling
– The time programmes are only effective in the Cooling
mode and the Manual cooling advanced function. In
each set time period, the desired temperature that you
set in the Desired temperatures function applies. Within
the time periods, the zone cools the living areas to the
desired Day temp. cooling temperature. Outside this
time period, there is no cooling.
5.2.3.6 Setting the domestic hot water generation
time programme
Menu → Time programmes → DHW circuit
– The time programmes are only effective for domestic hot
water generation in automatic mode. In each set time
period, the desired Domestic hot water temperature
applies. At the end of a time period, the system control
switches the domestic hot water generation off until the
start of the next time period.
5.2.3.7 Setting the time programme Circulation
Menu → Time programmes → Circulation
– The time programmes are only effective for circulation
in Automatic mode. The set time periods determine the
operating times for circulation. Within the time period, the
circulation is switched on. Outside the time period, the
circulation is switched off.
