Vaisala AP10 Manual

AP10 parts
1
2
3
4
5

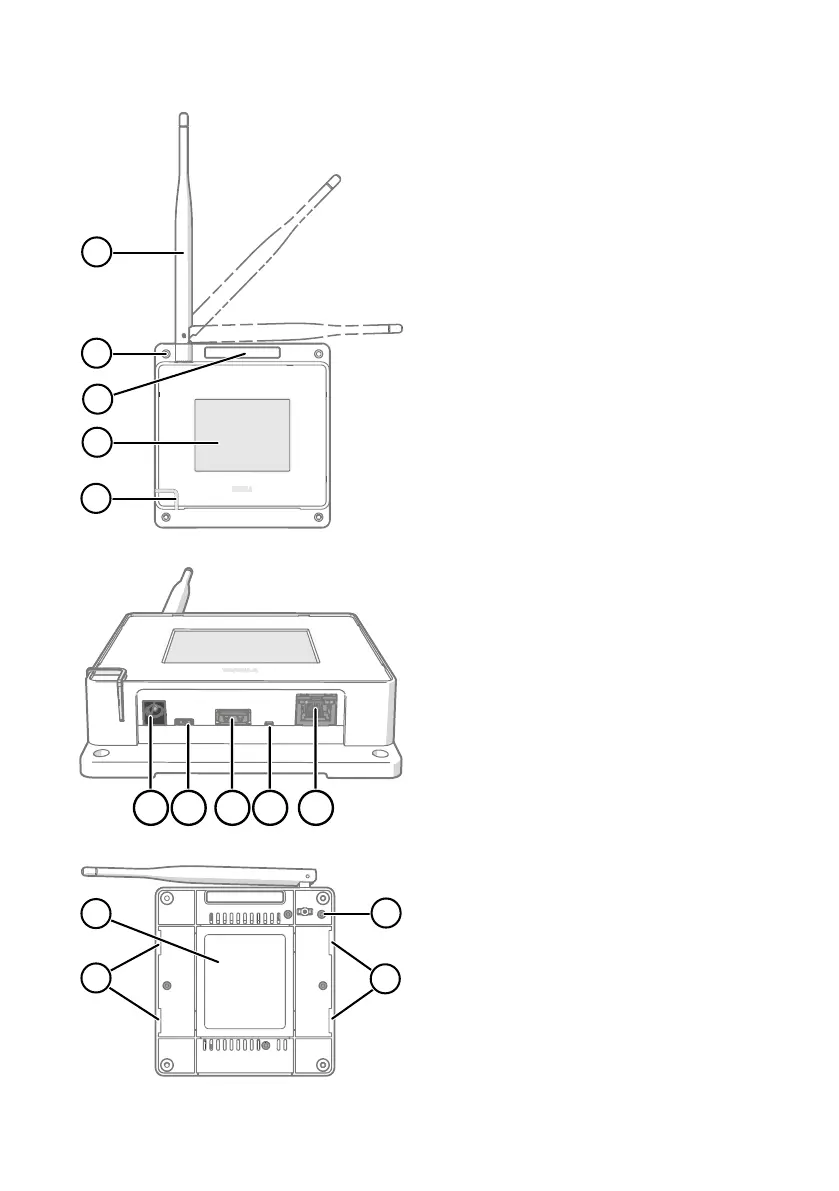

Figure 4 Front
1 Antenna. Can be rotated and tilted.
2 Screw holes for mounting (4 pcs),
Ø 3.2 mm
3 Ventilation hole (do not cover)
4 Touchscreen
5 Status LED:
Green Normal operation
Blue Installation mode active
Red Error - check status
1 2 3 4 5
Figure 5 Connector panel
1 Power supply connector
(10 ... 30 VDC)
2 Service port (micro-USB)
3 USB port for hardware expansion
(USB type A)
4 Reset button. Push to restart, push
and hold to revert AP10 to factory
settings.
5 RJ-45 Ethernet port. Can be powered
by Power over Ethernet (PoE).
1
2
2
3
Figure 6 Rear
1 Product label
2 Holes for mounting with tie wraps
3 Housing screws (do not remove)
12 M211821EN-E

Vaisala AP10 Specifications

General

Brand	Vaisala
Model	AP10
Category	Wireless Access Point
Language	English
