During calibration, the thermometer is inserted into the
13.5 mm hole of a salt chamber. Press it downwards until it
passes the O-rings. The thermometer is correctly in place
when you can feel a resistance while pressing it downwards.
0606-172

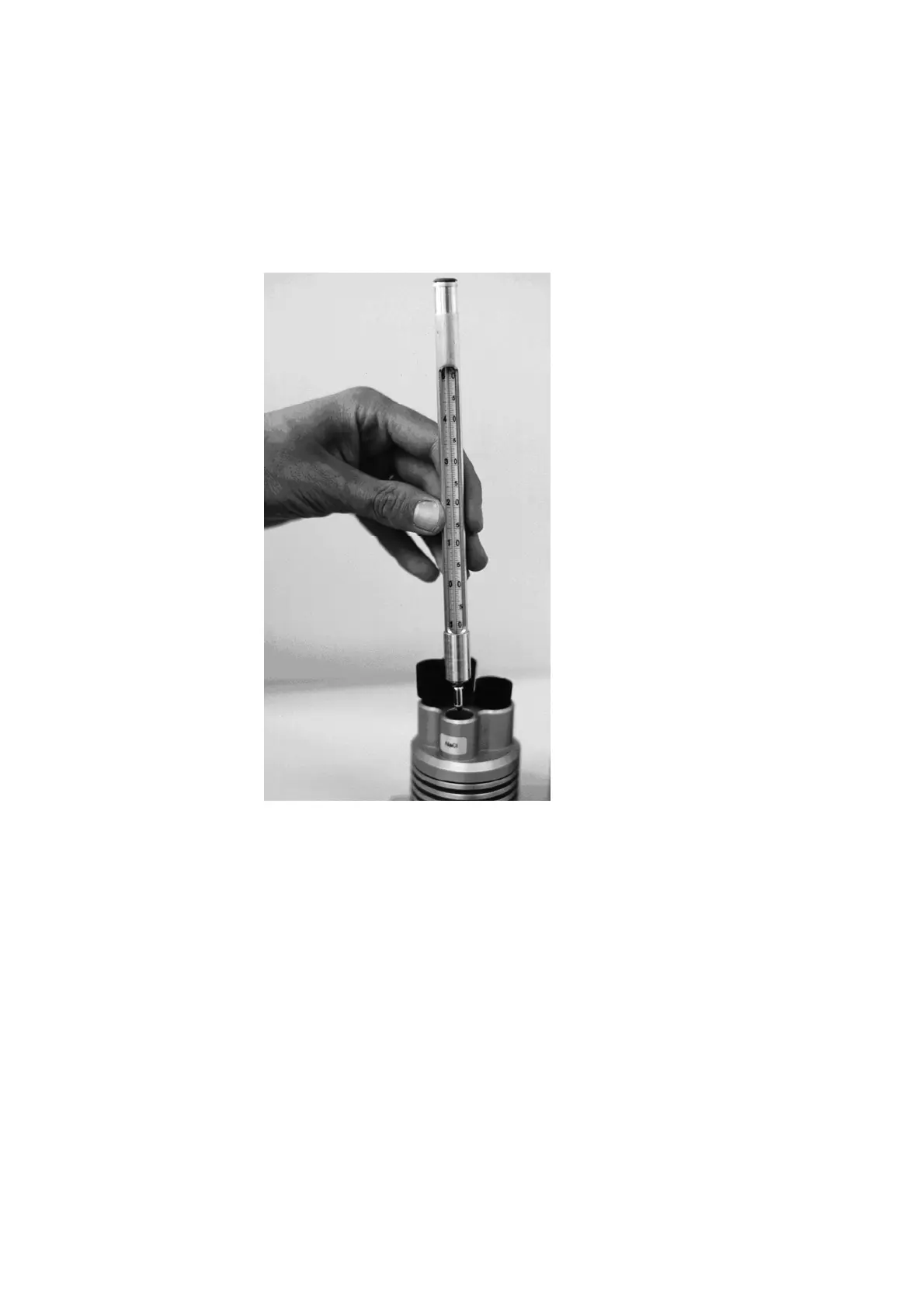

Figure 9 During calibration, the thermometer is
inserted into the 13.5 mm hole
When the thermometer is not in use or the calibrator is
transferred from one place to another, place the thermometer
in holders (Figure 10).
