13. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the
following conditions:
A. When the power supply cord or plug is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the product does not operate normally by following the operating instructions. Adjust only those
controls, that are covered by the operating instructions because improper adjustment of other
controls may result in damage and will often require extensive work by a qualified technician to
restore the product to normal operation.
E. If the product has been dropped or the cabinet has been damaged.
F. If the product exhibits a distinct change in performance.
14. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a
remote risk of electric shock from lightning.
15. Do not use the telephone to report a gas leak in the vicinity of the leak.
SAVE THESE INSTRUCTIONS.
GENERAL INFORMATION
Please adhere to the following precautions:
1. Never install telephone wiring during a lightning storm.
2. Never install telephone jacks in wet locations unless the jack is specifically designed for wet
locations.
3. Never touch uninsulated telephone wires or terminals unless the telephone line has been
disconnected at the network interface.
4. Use caution when installing or modifying telephone lines.
INSTALLING THE PAGEPAC 6 PLUS WITH ONE OR TWO TELEPHONE
LINES

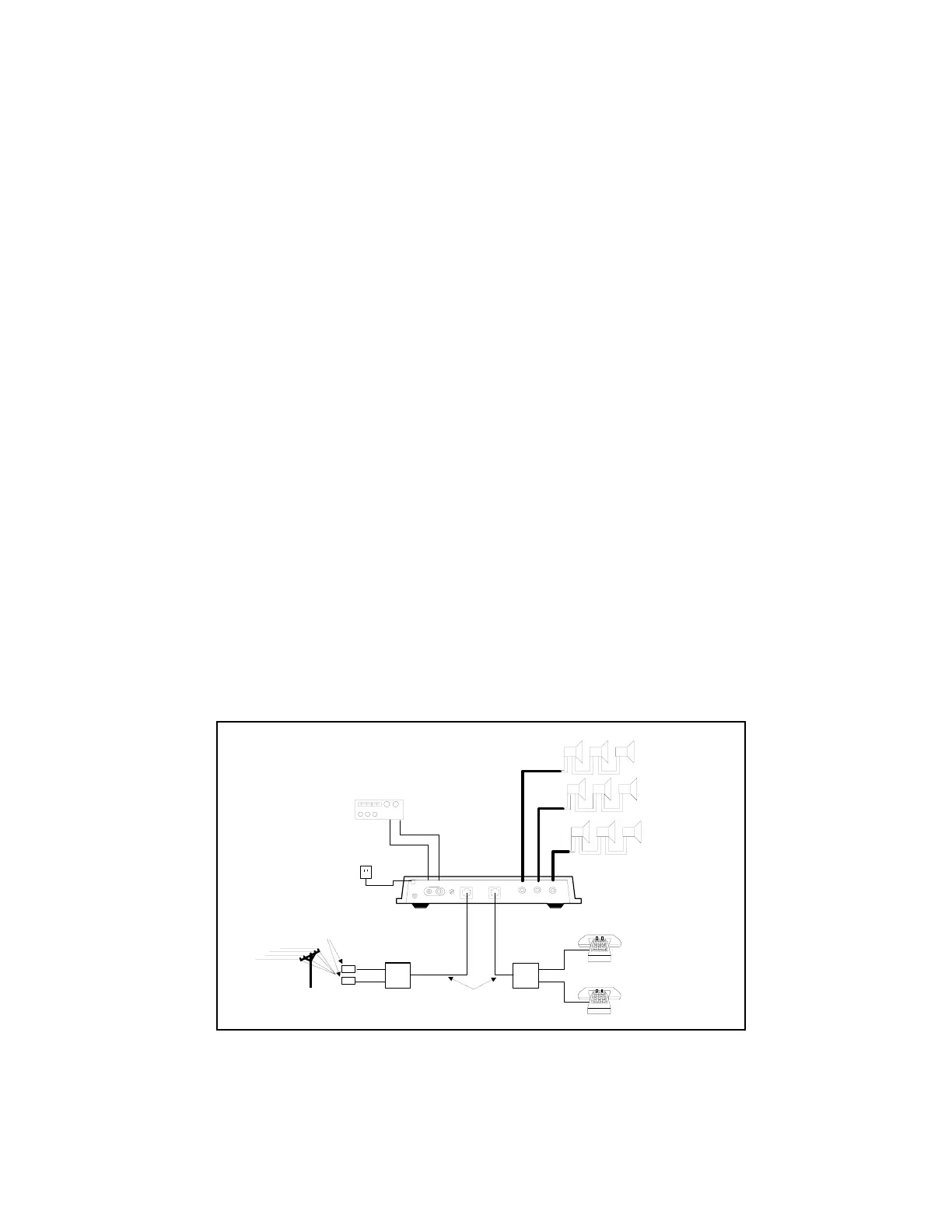

Figure 1. PagePac 6 Plus -- Typical Installation
ZO N ES
TO
TEL.CO .
J4
MUSIC
VOLUM E
W1
PW R M USIC
J 3 J 2
TO
PHO NES
J5
1
2
3
J6 J7 J8
MUSIC SOURCE
ZO NE 1 SPEAKERS
ZO NE 2 SPEAKERS
ZO NE 3 SPEAKERS
. . . . . T O E X T E N S IO N S
. . . . . T O E X T E N S IO N S
PAGEPAC 6 PLUS
TO AC W ALL
OUTLET
CONNECTOR
HALF-M ODULAR
CORD
BLOCK
2
TO
CENTRAL
OFFICE
CONNECTOR
LIN E 1
LIN E 2
BLOCK
1
SECO NDARY
PROTECTOR(S)
