Valcom V-9970 User Manual

6
J2
12V
IN
COM 24V
VP-412A
Power
Supply
Connection made
via an RJ11C jack
24V Option
(If used)
V-2006A
SW6 Must be OFF

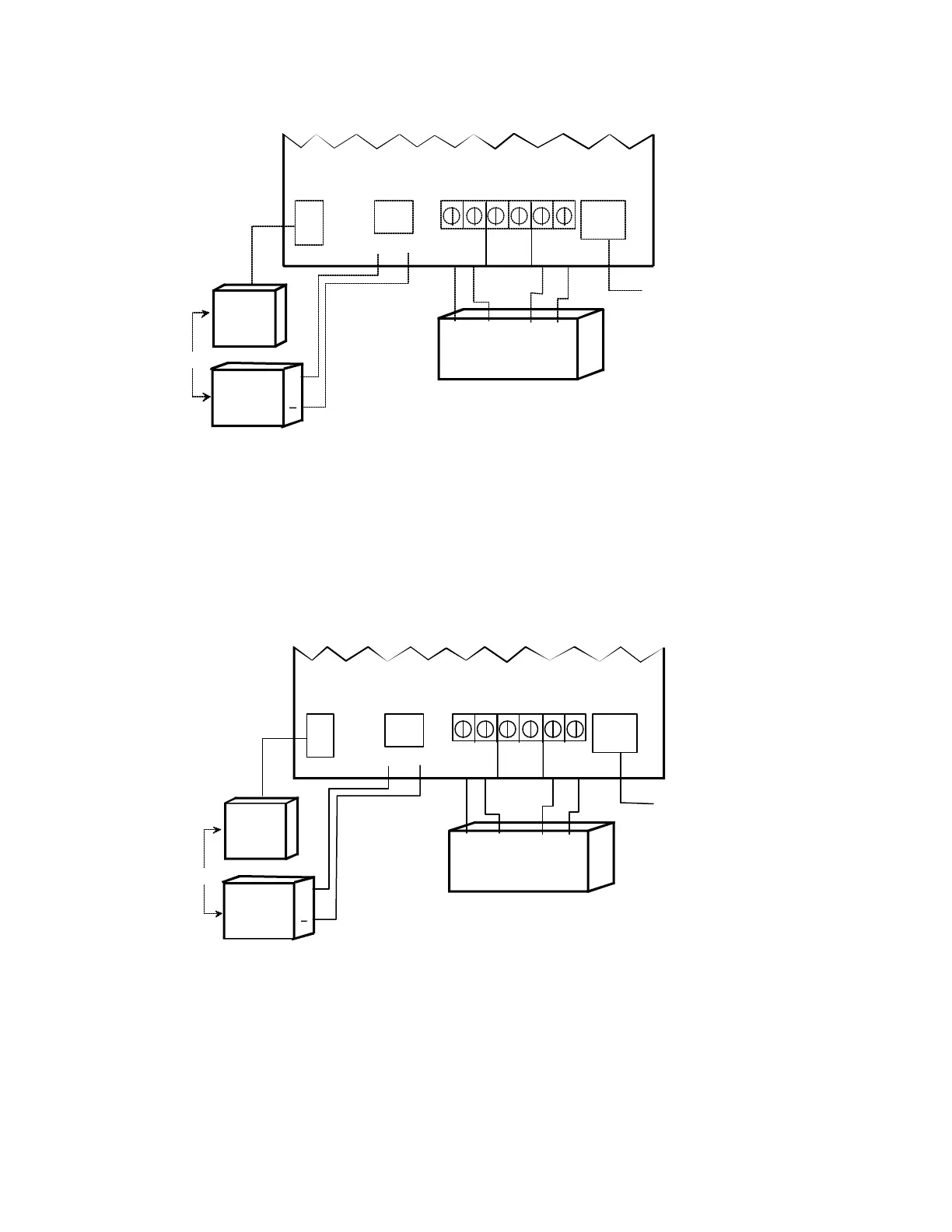

FIGURE 3
CONNECTIONS TO A V-2006A FOR 6 ZONES
J1
-24VDC
Power
Supply
*
+
Incoming Telephone
Line or PABX Station
* May be provided by V-2006A
W-BL BL-W W-BR O-W
OR
- +
COM SIG
MUSIC IN
USER
CONTACT
PAGE OUT
J2
12V
IN
COM 24V
VP-412A
Power
Supply
Connection made
via an RJ11C jack
24V Option
(If used)
V-2003A
SW2 Must be OFF
FIGURE 2
CONNECTIONS TO A V-2003A FOR 3 ZONES
J1
-24VDC
Power
Supply*
+
Incoming Telephone
Line or PABX Station
* May be provided by V-2003A
W-BL BL-W W-O O-W
OR
- +
COM SIG
MUSIC IN
USER
CONTACT
PAGE OUT

Valcom V-9970 Specifications

General

Certification	UL, CSA
