Valent Controls IOM 62 IOM-C1-0616
Part Number 474626

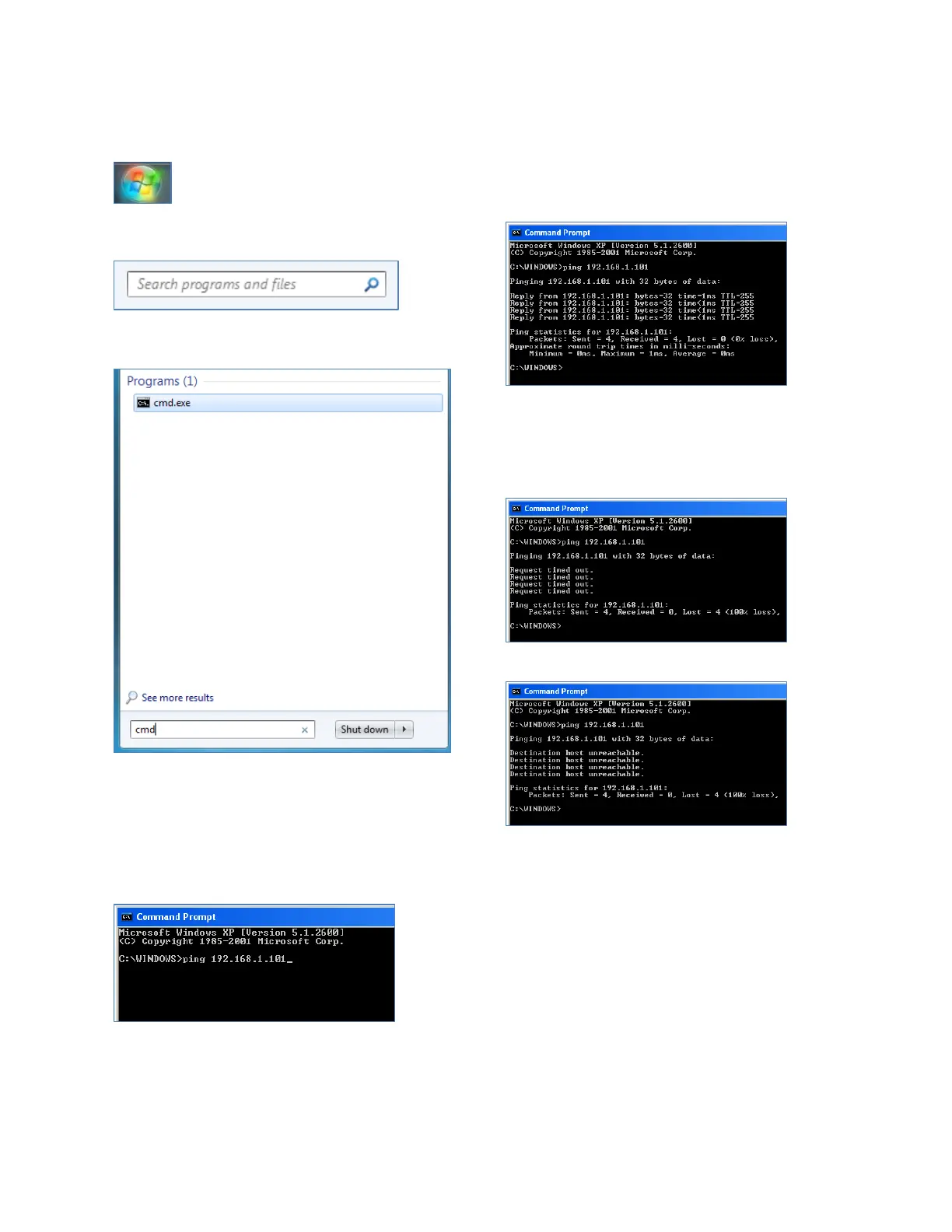

Locating Command Prompt Window from Windows 7
1. Click on the Windows Start orb.
2. Enter cmd in the Search programs and files
box.
3. Press Enter or click on cmd.exe in the list to
open the Command Prompt window.
Perform the Ping Test as follows.
Ping Test
1. At the Command Prompt window, enter
ping [IP address of controller]
The default IP is 192.168.1.101.
2. Press Enter. The UMT tests the ability to
communicate with the controller.
If communication is successful, the Command
Prompt window shows replies received, with
Packets Sent = 4 and Packets Received = 4.
If the UMT is unable to communicate with the
controller, the Command Prompt window shows
Packets Sent = 4 and Packets Received = 0.
One of the following messages is also displayed:
Request timed out.
Destination host unreachable.
If communication is unsuccessful, recheck the
LAN adapter settings, then repeat the ping test.
If adapter settings are changed, restart the UMT
before repeating the ping test.
If the LAN adapter settings are correct but the
UMT still cannot communicate with the
controller, reboot the controller as described in
Rebooting the Controller on page 57. Repeat the
ping test. For further help, contact the factory
To Next Page
