valent VX-112 User Manual

Dedicated Outdoor Air Unit42
F
G
H
I
J
COMBUSTION AIR INLET
EXHAUST OUTLET
A
B
C
D
E
COMBUSTION AIR INLET
EXHAUST OUTLET

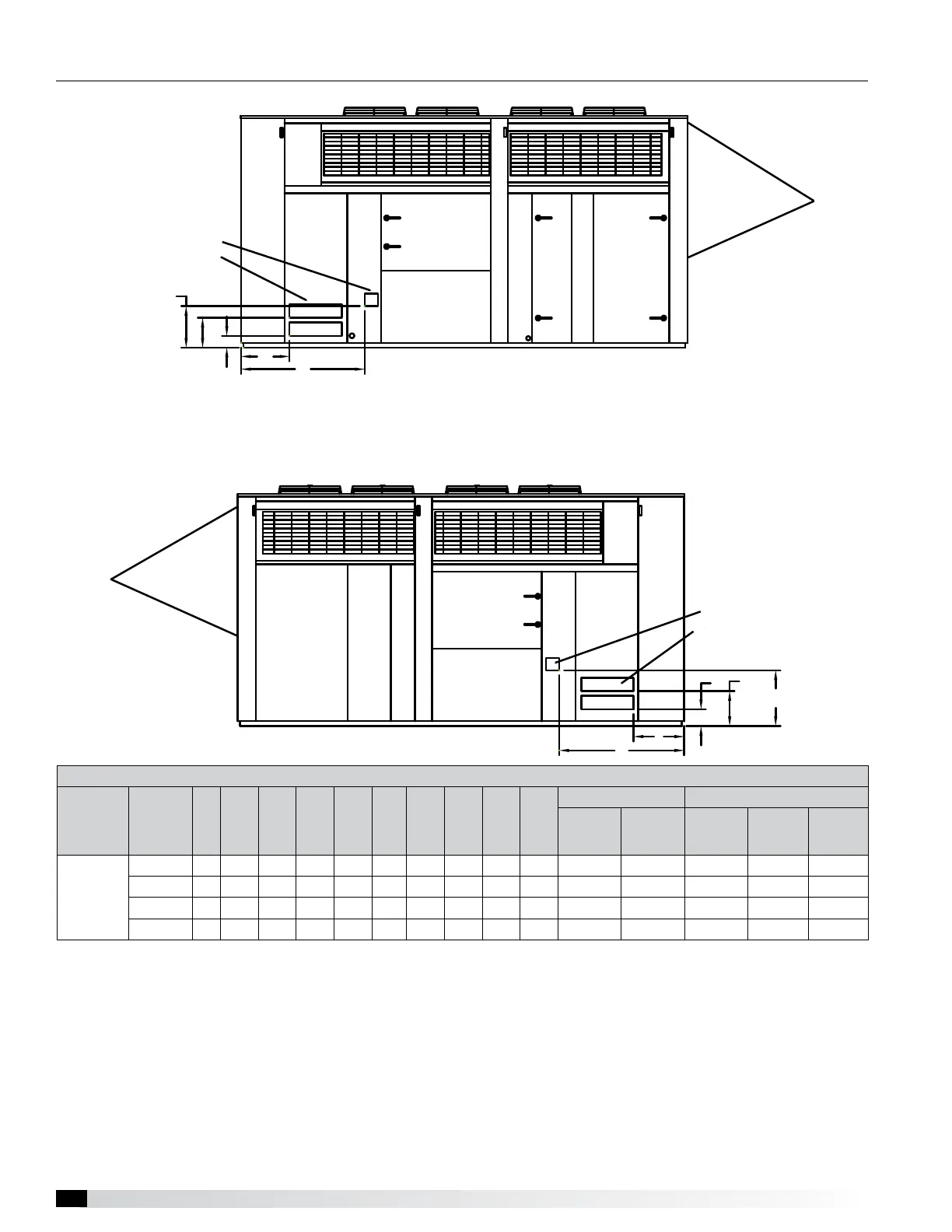

Reference - Venting Connection Locations Cont. (Models VX/XVE-352)
IG Venting Location
Model
Furnace
Size
(MBH)
A B C D E F G H I J
Inlet Dimensions Outlet Dimensions
Length Height
Edge
Thickness
Length Height
VX/VXE-
352
600 6 13.8 17.2 20.5 50 NA NA NA NA NA 21.5 6 1 6.5 5.5
800 6 13.8 24.7 20.5 49.8 6 13.7 18.5 20.5 49.7 20.5 6 1 6.5 5.5
1000 6 13.8 17.2 20.5 50 6 13.7 24.2 20.5 49.9 21.5 6 1 6.5 5.5
1200 6 13.8 17.2 20.5 50 6 13.7 24.2 20.5 49.9 21.5 6 1 6.5 5.5
