Valeo CC 336 - Evaporator Module

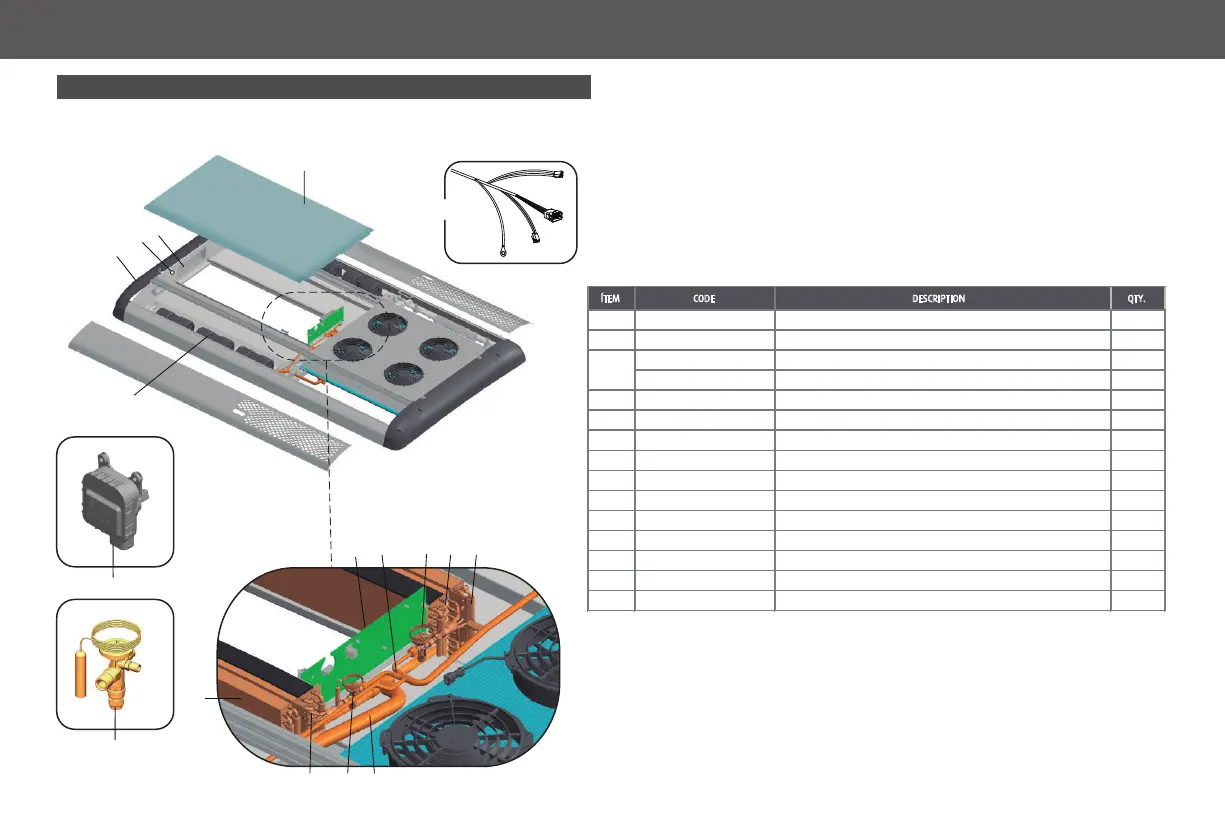

3.2- Evaporator Module
CC 336 - CC 356EQUIPMENT DESCRIPTION
NOTE: access for consultation https://www.valeo-thermalbus.com/br_pt/PRODUTOS/PECAS-DE-REPOSICAO
3
4
1
2
7
14
4
10
8 7 13
7
9
11
12
5
6
ÍTEM CODE DESCRIPTION QTY.
1 SEE NOTE Central Evaporator Closing 1
2 SEE NOTE Front Finish Cover 1
SEE NOTE Air Renewal Set With Filter 1
SEE NOTE Air Renewal Filter Set 1
4 SEE NOTE 24V Air Renewal Eletric Engine 1
5 SEE NOTE Evaporator Wire Harness 1
6 SEE NOTE Electric Control Board 24V 1
7 SEE NOTE TGEN 3,5 TR Expansion Valve 2
8 SEE NOTE Right Evaporator Coil 1
9 SEE NOTE Left Evaporator Coil 1
10 SEE NOTE Right Heating Coil 1
11 SEE NOTE Left Heating Coil 1
12 SEE NOTE Evaporator Liquid Line Tube Set 1
13 SEE NOTE Suction Tube Set 1
14 SEE NOTE 24V Radial Fan 6
3
17
