VALLOX 75/95
12
INSTALLATION
VALLOX 75/95 location
VALLOX 75 / 95 is mounted in a place where temperature is more than +10 °C. The unit
must be located in a place where the acoustic disturbance for residents is minimal. If residents
can boost ventilation so that it exceeds the ratings for the time of operation, the sound level
rating may be exceeded by +10 dB. If needed, the unit shall be encased.

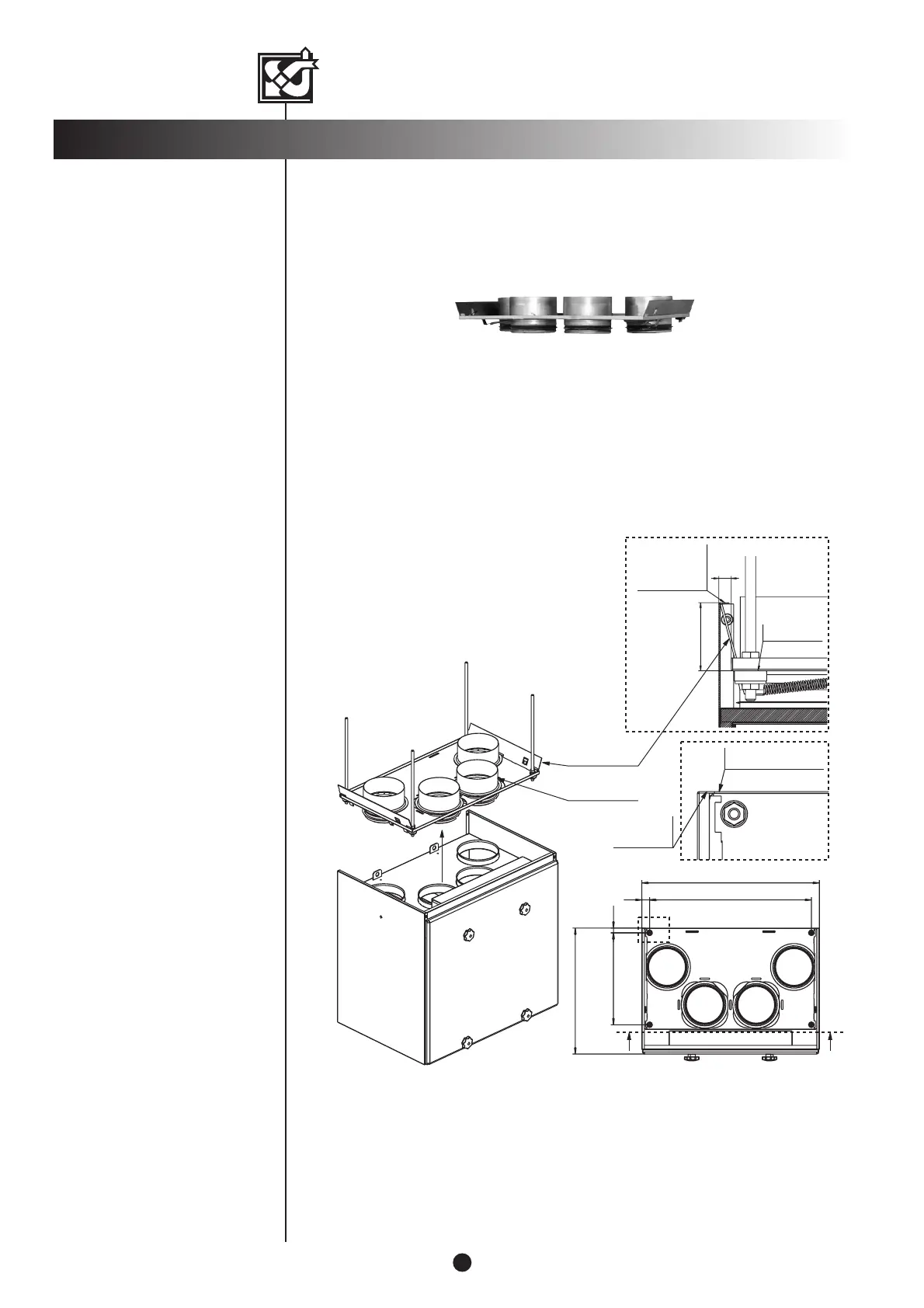

Ceiling mounting
VALLOX 75 / 95 can be equipped with an optional easy-to-use ceiling mounting plate (patent
pending). The ceiling mounting plate is fixed to the ceiling with M8 thread bars. Fix the bars
so that they stand the weight of the unit, i.e. approximately 40 kg.
The ceiling mounting plate has to be fixed horizontally in order to ensure that the unit will be straight.
Installation
Lift the unit straight upwards, till the locking wings on the sides of the mounting plate lock
into the side plates of the unit. You can detach the unit from the mounting plate by releasing
the locking wings from the side plates.
To facilitate mounting, you may use a lubricant,
such as O-ring grease, in the collar sealings.
Mounting accessories include rubber silencers,
base plates and nuts. Thread bars are
not included in the delivery.
10
53
– 0.0
+3.0
LOCKING WING
DET2
25
514
15
292
564
400
DET3 DET3
Back edge of the
ceiling mounting plate
VALLOX 95
back edge of
the side plate
DET3
4 x ø125 female
height
55
DET2
Lower edge
of the ceiling
mounting
plate
Upper edge of
the VALLOX
75-95 side
plate
