Method D - Securing with the clamp.
This method of securing cannot be used in conjunction with the optional spacer
frame. This is an alternative securing method where fixing to a surround or rear wall
proves impractical.

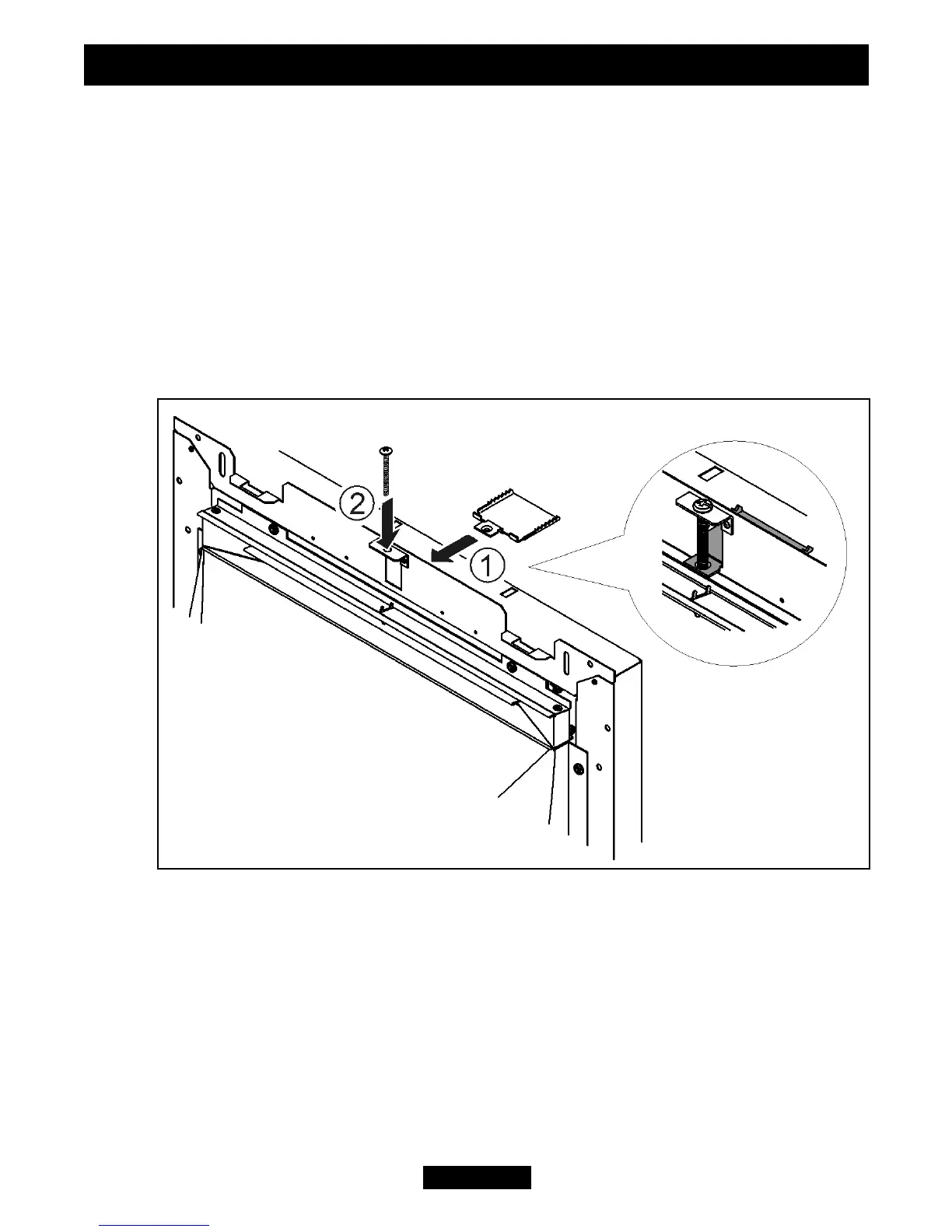

1. Locate the clamp as in item 1 of figure 14. Place the screw through the upper
bracket on the heater and locate into the clamp - item 2 of figure 14. It is only
necessary to locate the screw, do not continue to turn it as this will elevate the clamp.
2. Place the heater into the surround / opening.
3. Rotate the clamp screw clockwise until the heater is secured in the surround /
opening. Where applicable, do not over-tighten the screw as this may deform or
cause damage to the surround / back panel.
Figure 14.
