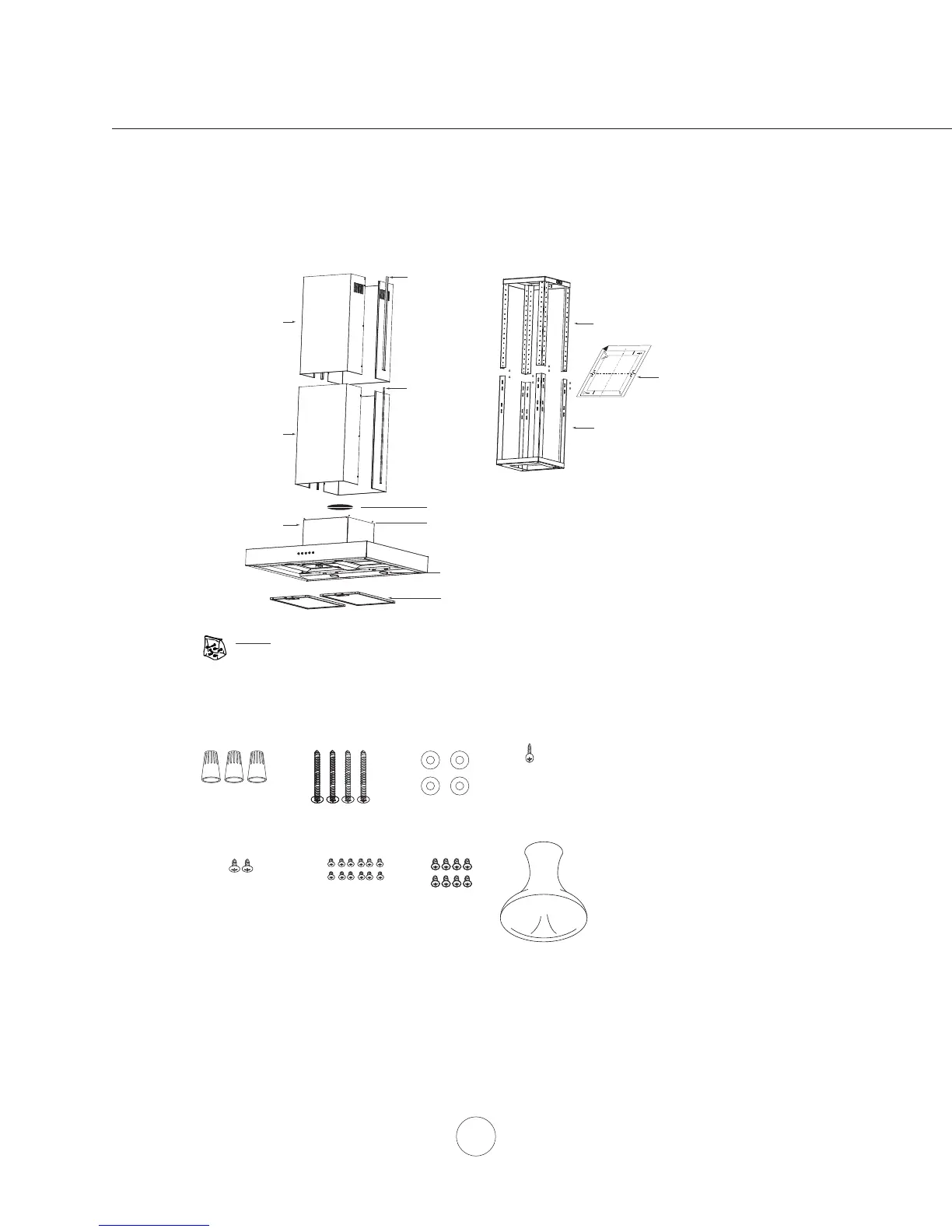

List of Materials
4
(3) Wire Nuts
(1) Suction Cup
(4) ø12 OD / ø5 ID
Washers
(4) M6 x 1-1/2”
Wood Srews
(2) 3/16 x 1/4”
Machine Screws
(12) M3 x 5
Machine Screws
(8) M4 x 8
Machine Screws
(1) Hardware package
(1) 6” round damper (pre-installed)
(4) 3/16 *1/2” mounting screws (pre-installed)
(1 in each corner of the blower housing)
MODELS: VLT-E36AS, VLT-E42AS
PARTS SUPPLIED
HARDWARE PACKAGE CONTENTS
PARTS NOT SUPPLIED
- Ducting, conduit and all installation tools
- Hack saw to cut down trim pieces
- Cable connector (if required by local codes)
- Duct cover extension accessory - V1C-00LT
- Recirculating kit accessory - VRC-00LT (36”), VRC-01LT (42”)
(2) Top Duct Covers
(1) Top Support Frame
(2) Bottom Duct Covers
(1) Bottom Support Frame
(2) Thin Trim Pieces
(2) Thick Trim Pieces
(1) Hood Body w/
blower housing
(4) Halogen Light Bulbs (pre-installed)
(2) Aluminum Mesh Filters (3 - VLT-E42AS)
(1) M4 x 12
Sheet Metal Screw
A
B
Front of Hood
C
L
/
Cut-Out Shaded Area
(1) Paper ceiling template
To Next Page
