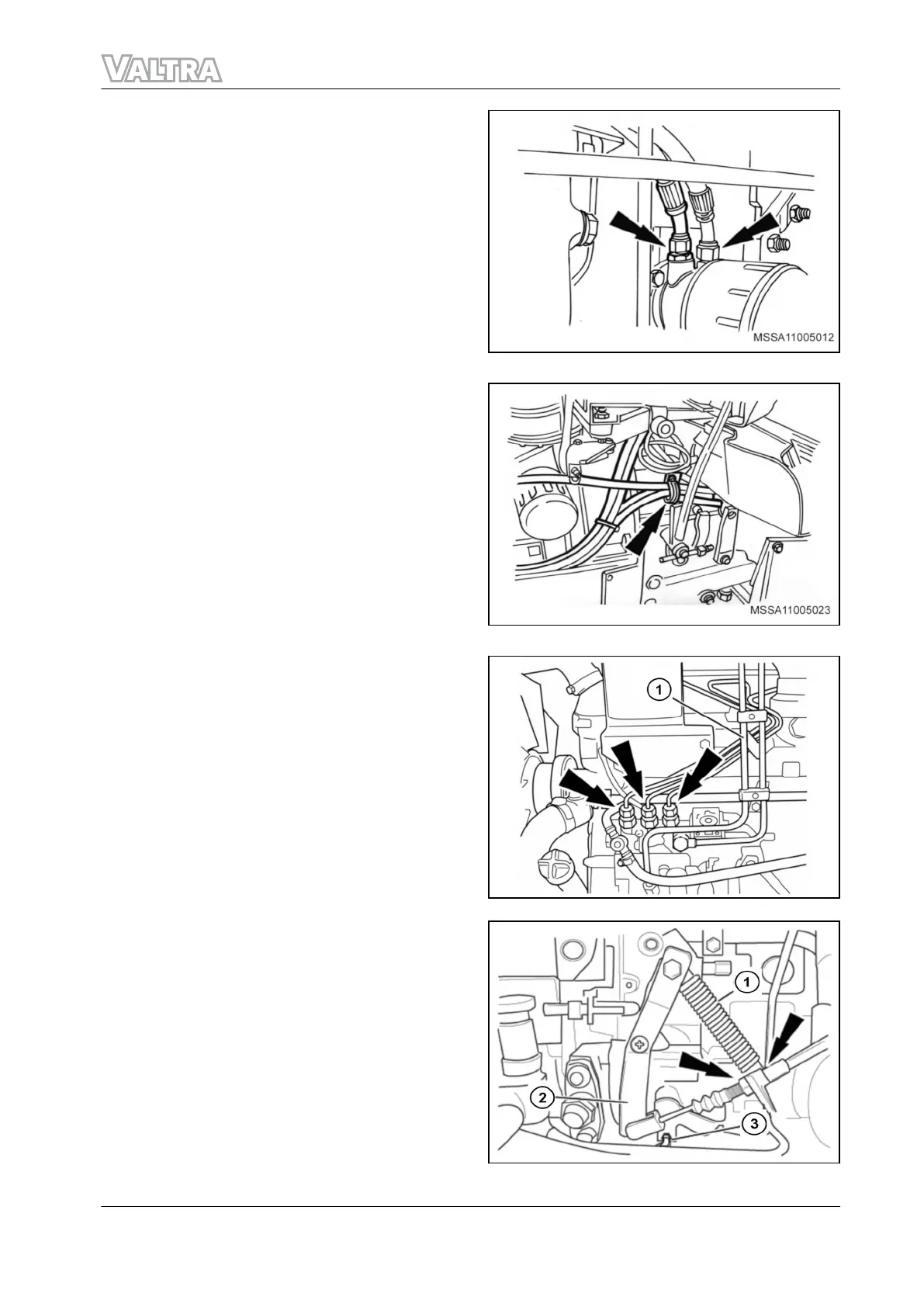

25. Loosen the connections (arrows) for the
hoses of the gearbox lubricating oil cooling
system, on the gearbox fil ter.
GUID-9CD28E71-3C4B-4A8E-B52A-E06E70384364-high.jpg [High]
Fig. 29
26. Loosen the retaining clamp (arrow) for the
fuel hose and gearbox oil cooling hose.
GUID-D9863F1F-BC3D-4735-9902-6BABE855004A-high.jpg [High]
Fig. 30
27. Loosen and disconnect the fuel return hose
(1) on the injector pump and the decanter
filter.
28. Loosen and disconnect the fuel supply hose
on the decanter.
GUID-A627F5D8-C27C-49C3-9EE7-956FCDD6B581-high.jpg [High]
Fig. 31
29. Remove the return spring (1) from the
throttle cable. Remove the rod lock pin (2).
Loosen the stake nuts and adjustment nuts
(arrows) and disconnect the cable from the
support.
GUID-1E84F918-50A2-4A67-90E8-6C99DB3790F7-high.jpg [High]
Fig. 32
1. Introduction
1-37
