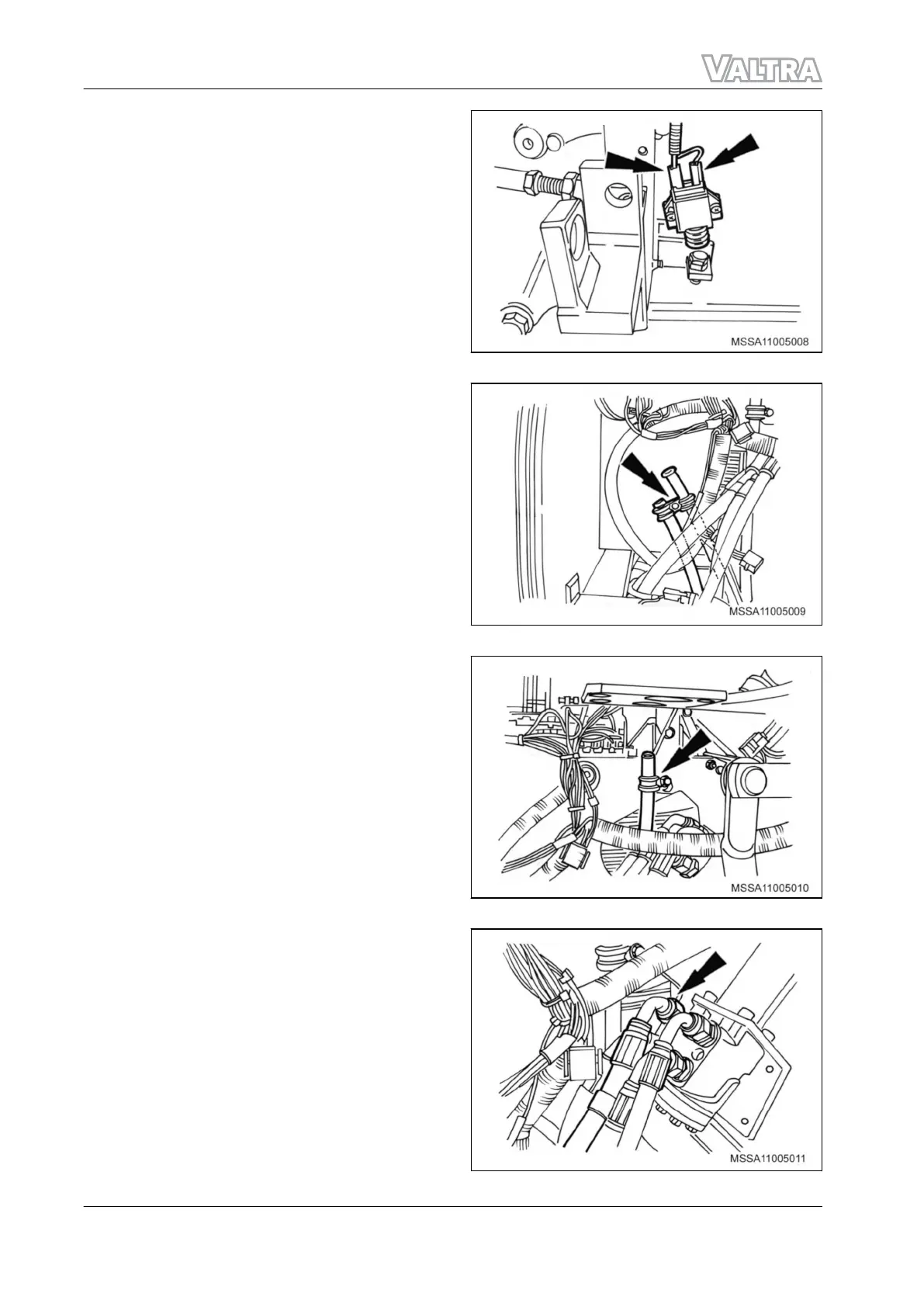

20. Disconnect the electrical connectors (arrows)
for the clutch pedal switch, underneath the
front floor.
GUID-EDB281D2-0C10-424C-9175-C3DF6F422E4D-high.jpg [High]
Fig. 25
21. Loosen the retaining clamps ((arrow)) for the
lubrication hoses of the guide bushings on
the clutch thrust bearing journals.
GUID-8AA53A01-8050-4779-9024-8D36436A51B9-high.jpg [High]
Fig. 26
22. Remove the stake nut (arrow) from the
retaining clamp for the fuel tank breather
hose.
GUID-36D72ED8-D12F-4EC6-8F2F-E4260112DAAF-high.jpg [High]
Fig. 27
23. Loosen the connection (arrow) for the
hydraulic oil return hose of the hydrostatic
steering.
24. Cut the plastic strap clamps securing the
hoses for the gearbox lubricating oil cooling
system.
GUID-E2E44452-2D5A-409A-B0F7-304453B1998F-high.jpg [High]
Fig. 28
