C. General description
1
2
3
17
4
9
10
T1LS C1
13
12
11
18
14
15
16
7
6
19
8
5

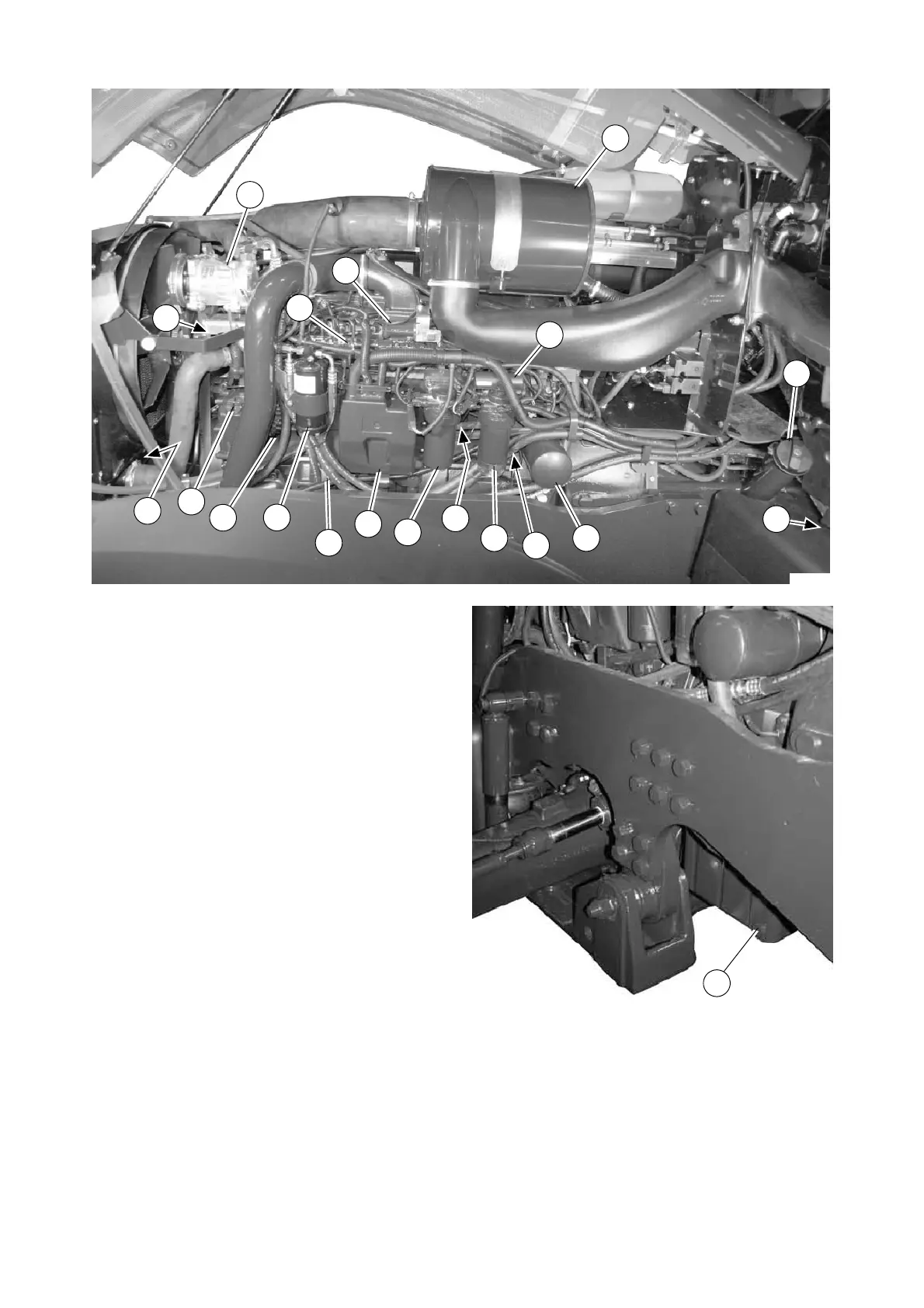

Left side of tractor:
1 Dipstick for engine oil
2 Engine oil filler cap
3 Engine oil filter
4 Airfilter housing
5 Coolant pump
6 Draining plug for coolant, cylinder block
7 Engine heater
8 Engine heater plug (not in picture, under the cab door)
9 High pressure pump
10 High pressure accumulator
11 Fuel filler cap
12 Pre heating of induction air, electric
13 Electric feed pump, fuel system
14 Prefilter for the fuel , water trap in lower part
15 Fuel filter
16 Air conditioning compressor, extra equipment
17 Air conditioning receiver, extra equipment
18 Electronic engine control unit
19 Draining plug for coolant fluid
20
T1LS C2
20 Engine oil draining plug
