C. General description
8
1
2
T1LS C5
6
6
7
9
10
11
12
3
4
5
3
4
5
13
14
15
16
17
18
19
20

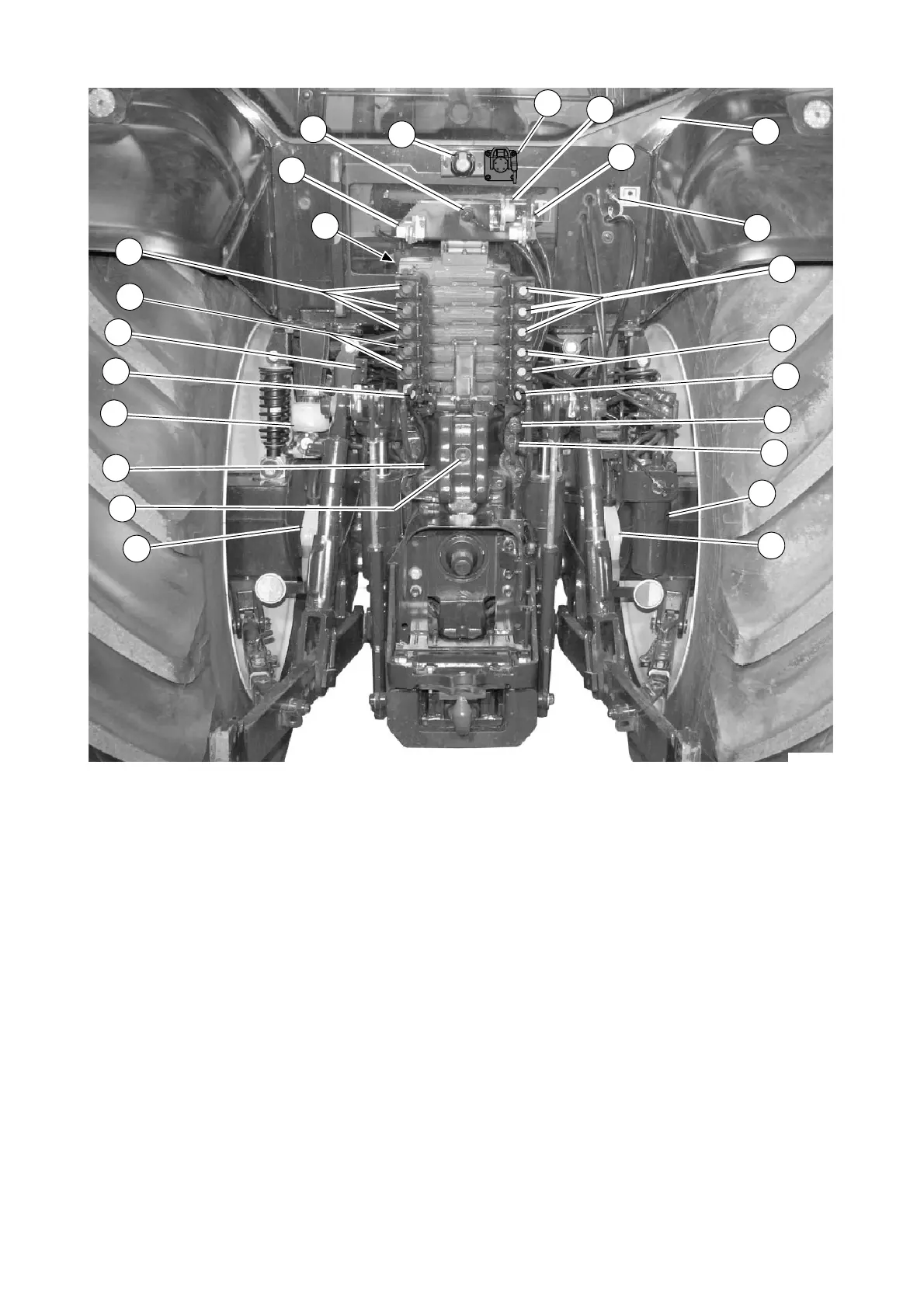

Rear view of tractor:
1 Oil dipstick, transmission and hydraulics
2 Oil filling cap, transmission and hydraulics
3 Auxiliary hydraulics, quick couplings for the on/off valve
4 Auxiliary hydraulics, quick couplings for the valves 1
and 2
5 Auxiliary hydraulics, quick couplings for the valves 3, 4
and 5, extra equipment
6 Leakage oil reservoirs
7 Auxiliary hydraulic system return coupling,
transmission/hydraulic oil filling with the pump
8 Trailer socket
9 Inlet, remote control cables
10 Remote (Emergency) power take off stop
11 Power transmission and hydraulic pressure filter
12 Breather, transmission and hydraulics
13 ISOBUS implement connector (extra equipment), for
more details see page 202.
14 Bleed nipples
15 Quick coupling for output of compressed air, extra
equipment
16 Trailer coupling two pipe system; container line (red),
extra equipment
17 Trailer coupling two pipe system; brake line (yellow),
extra equipment
18 Trailer coupling one pipe system; connector (black),
extra equipment
19 Antifreeze container for compressed air system, extra
equipment
20 Trailer hydraulic brake connection, extra equipment
