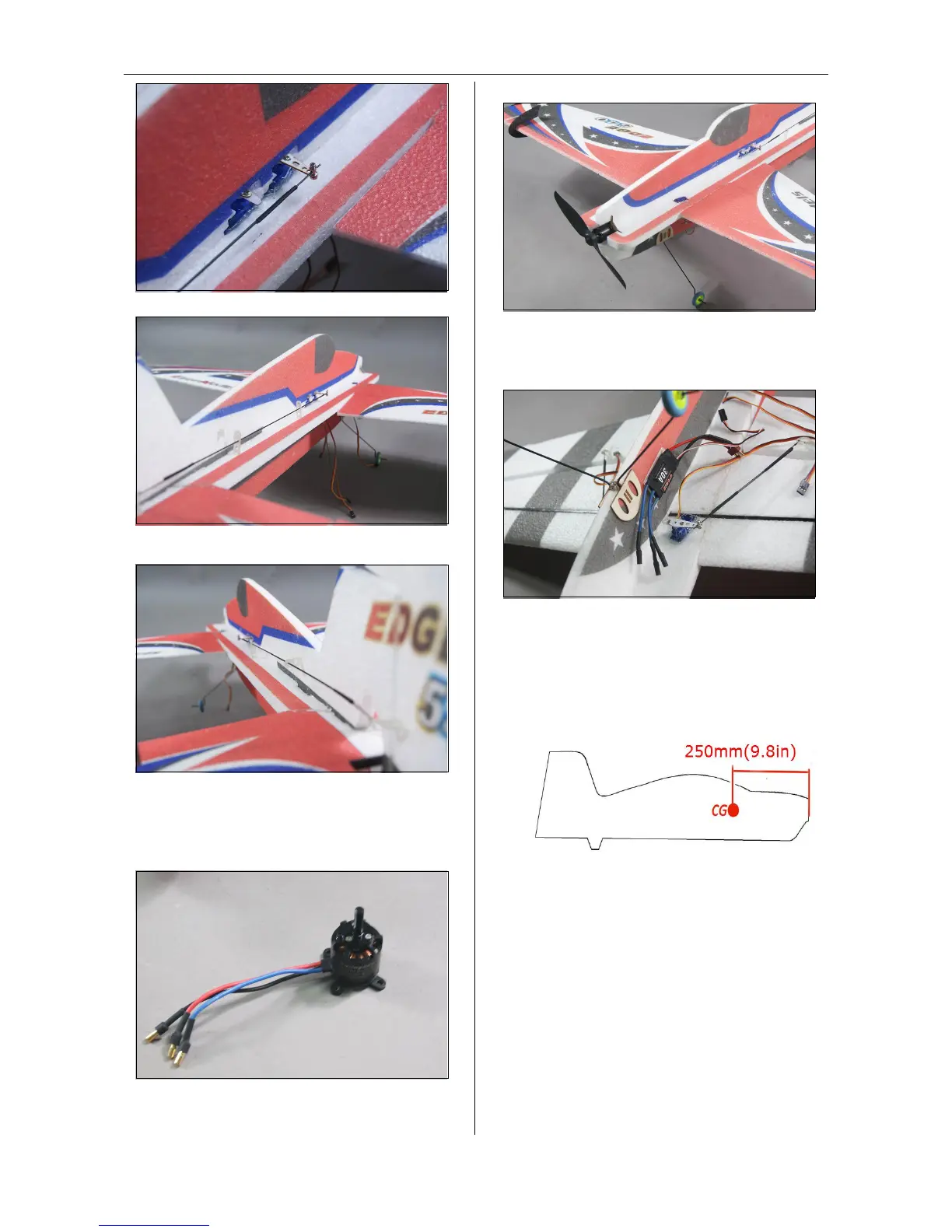

Step28. Finish the rudder servo linkage installation.
Step29. Prepare a motor with motor mount and
prop adapter installed.
Install the motor to the motor mount using four
M2.5 x 12mm self-tapping screws.
Step30. Install the prop to the motor.
Step31. Cut the hook and loop tape into two pieces,
and stick them to the two sides of the fuselage for
the battery and esc.
Recommended CG
The recommended CG is 250mm (9.8in) from the
nose of the fuselage.
Recommended Control Throw
1. For beginner & sport
Ailerons - Approx +/- 20 degrees
Rudder ---Approx +/- 20 degrees
Elevator --Approx +/- 25 degrees
2. For extreme & 3D
Ailerons - Approx +/- 40 degrees
Rudder ---Approx +/- 45 degrees
Elevator --Approx +/- 60 degrees
