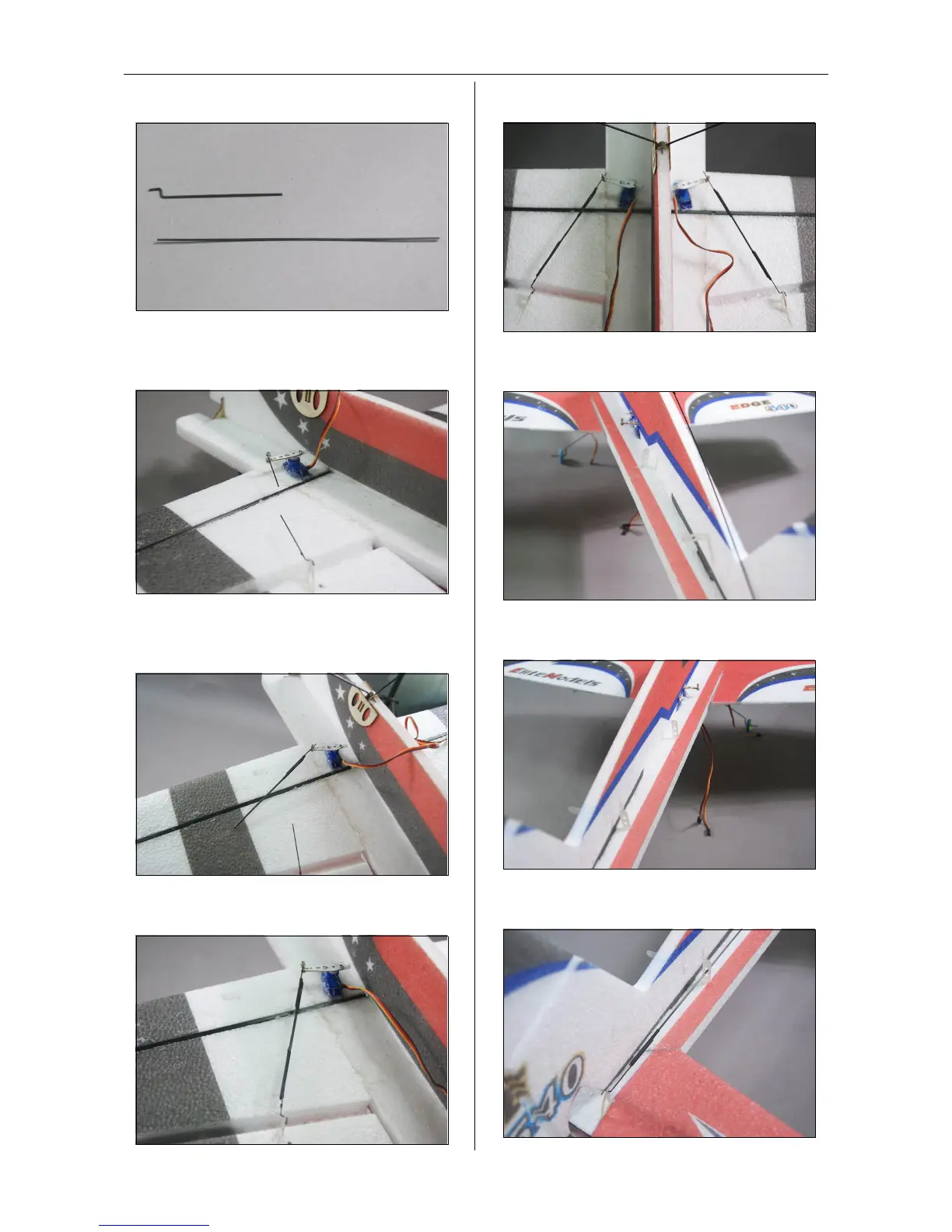

Step20. Cut the 160mm steel wire with z-bend to 2
wires.
Step21. Attach the z-bend wire to the control horn,
and one short wire to the push rod connector, then
tighten the screw on the push rod connector.
Step22. Use heat shrinking tube to connect the
short steel wire and 100mm long aileron servo
push rod wire.
Step23. With aileron control surface centered, use
the heat shrinking tube to connect the z-bend steel
wire and the push rod wire.
Step24. Repeat the steps from 20 to 23 to finish
the remaining aileron servo linkage installation.
Step25. Insert two support guides into the fuselage
for the rudder push rod.
Step26. Insert two support guides into the fuselage
for the elevator push rod.
Step27. Finish the elevator servo linkage
installation using the same methods for the aileron
servo linkage.
