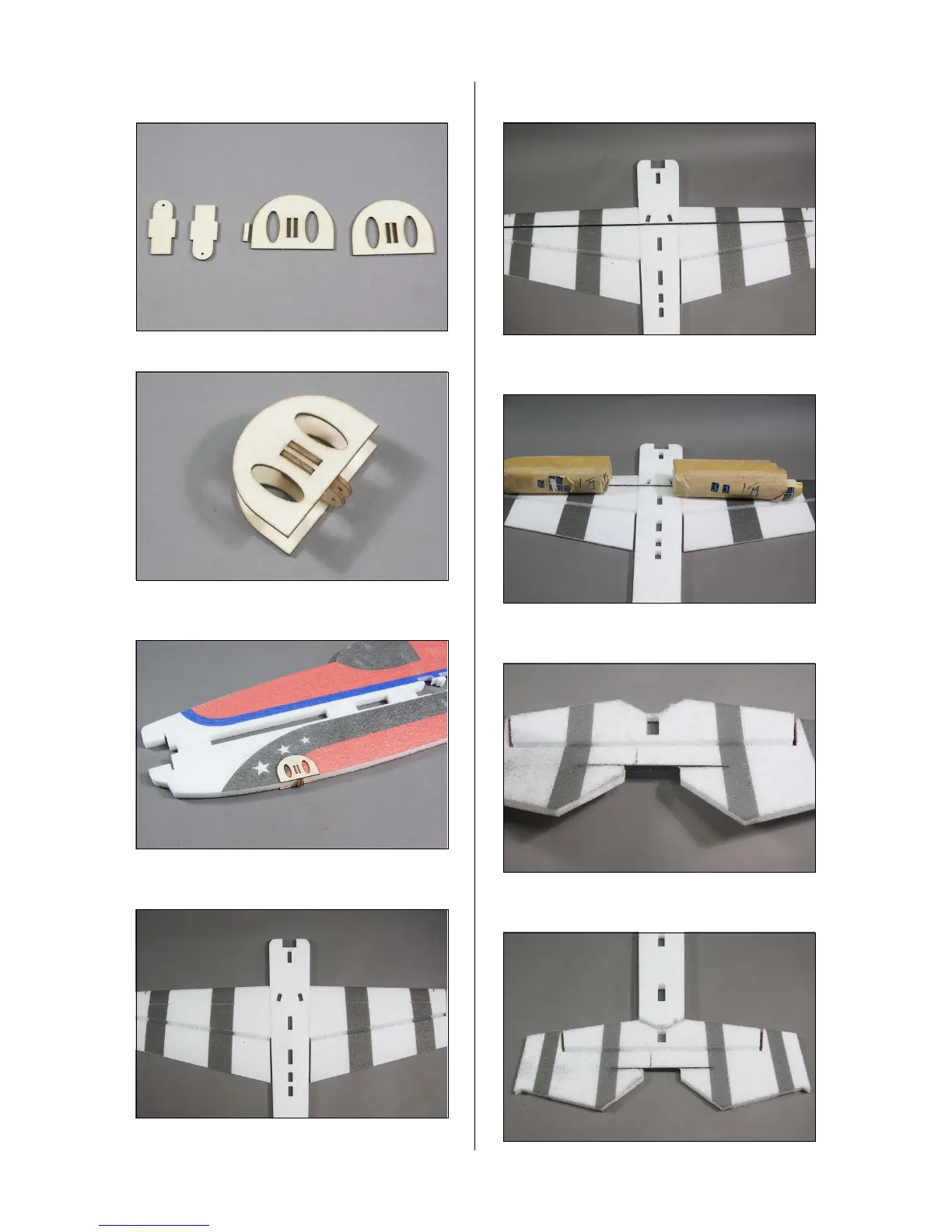

Step1. Locate the wood pieces for landing gear
mount.
Step2. Glue the wood pieces together as shown.
Step3. Glue the assembled landing gear mount to
the vertical fuselage.
Step4. Glue two wing panels to the horizontal
fuselage.
Step5. Glue the wing spar to the slot pre-cut in the
wing and fuselage.
Step6. Put some weights on the wing till the foam
glue fully cures.
Step7. Glue the carbon fiber strip (148mm long) to
the slot in the elevator.
Step8. Glue the horizontal tail to the fuselage. (the
fuselage is thicker than the horizontal tail, make
sure they are aligned on the top side.)
