ValueHD VHD-V61 - Main Unit Ports and Controls; Audio;Video Interface Ports; Communication Interface Ports; System and Network Ports

ValueHD Corporation
12

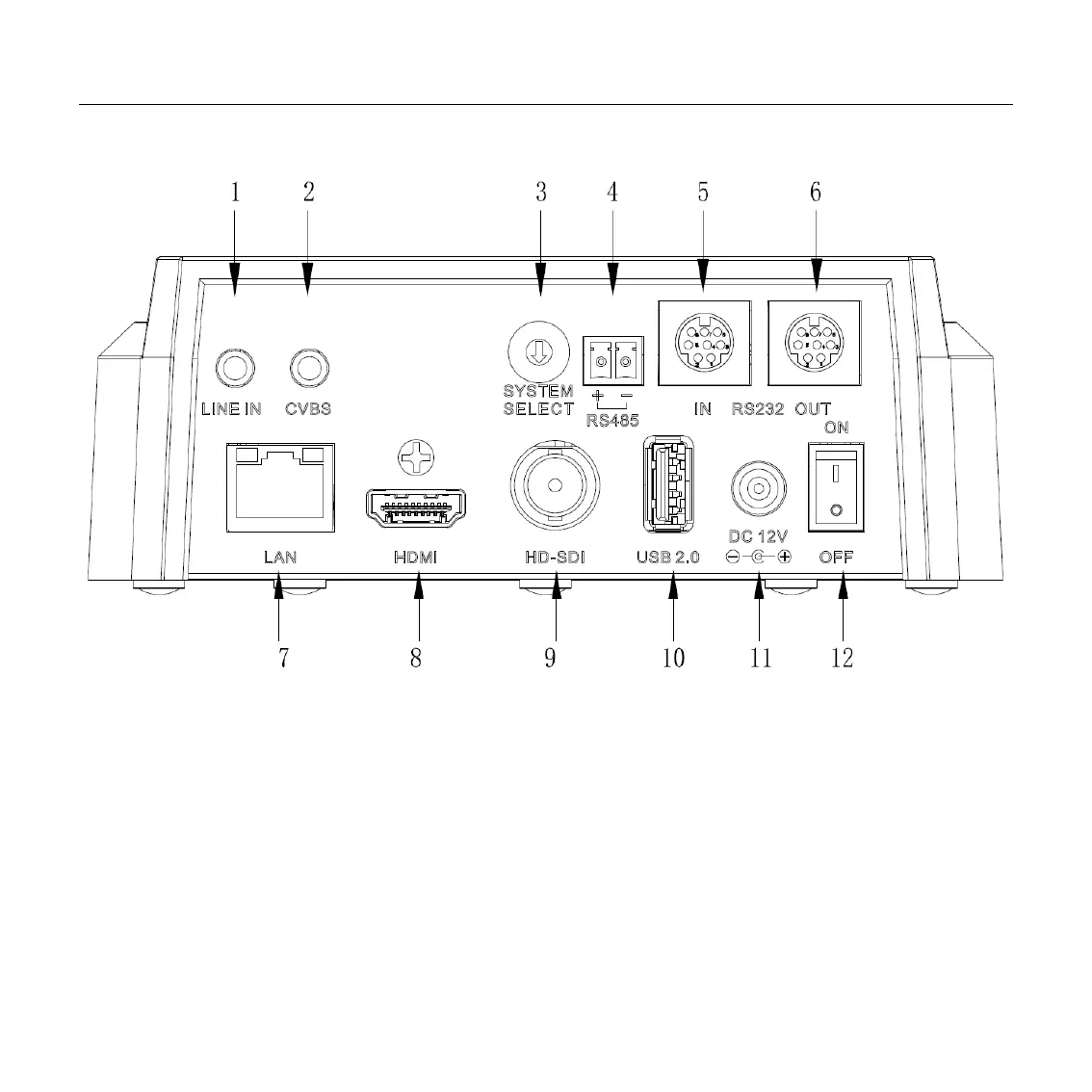

Main Unit
1. Audio LINE IN Interface 7. Network Interface
2. CVBS Interface 8. HDMI Interface
3. System select switch 9. HD-SDI Interface
4. RS485 interface 10. USB2.0
5. RS232 interface 11. DC 12V jack
6. RS232 OUT interface 12. Power switch
